With Consult-II

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "ON". (Do not start engine.)

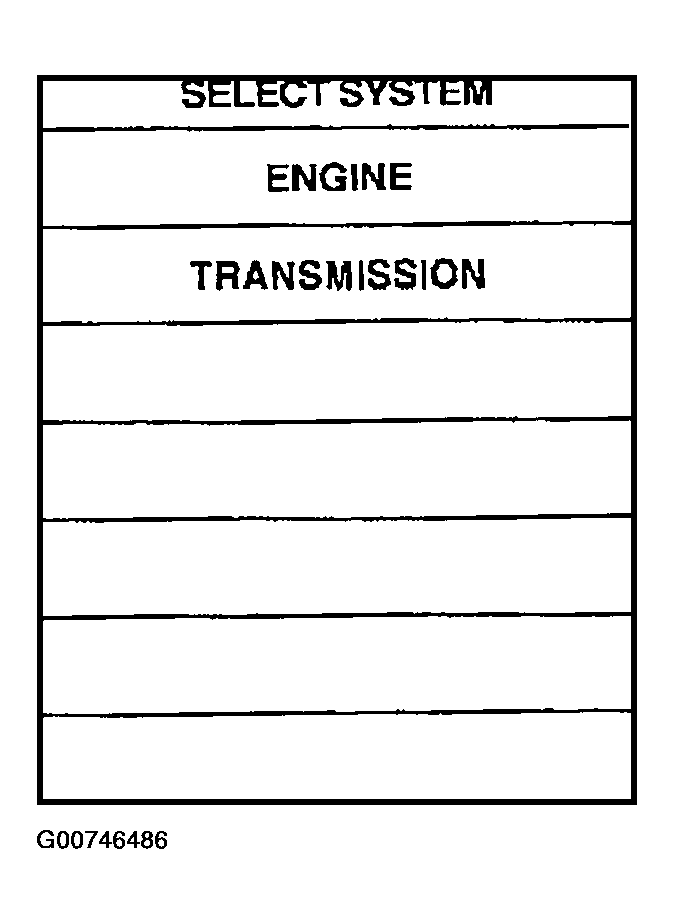

    Fig 1: CONSULT-II Display - Transmission
    G00746486Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Select "DATA MONITOR" mode for "TRANSMISSION" with CONSULT-II.
  3. Start engine.
  4. Drive vehicle and maintain the following condition for at least 6 seconds.

    SLCT LVR POSI: "D" position

  5. If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".
