Component Inspection

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

A/T PV IGN RELAY

Apply 12V direct current between A/T PV IGN relay terminals 1 and 2.
Check continuity between relay terminals 3 and 5.

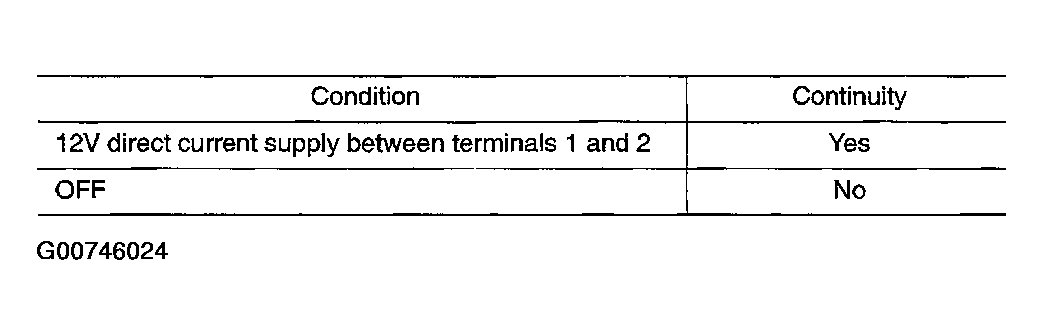

Fig 1: Connector Terminal Continuity Reference
Courtesy of NISSAN MOTOR CO., U.S.A.

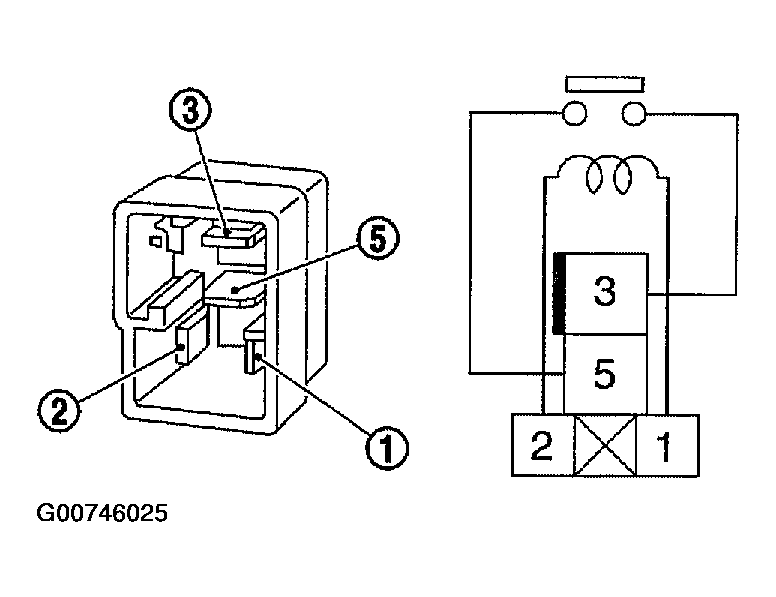

Fig 2: Checking Continuity Between Relay Terminals 3 And 5
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace A/T PV IGN relay.
