With Consult-II

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "ON". (Do not start engine.)

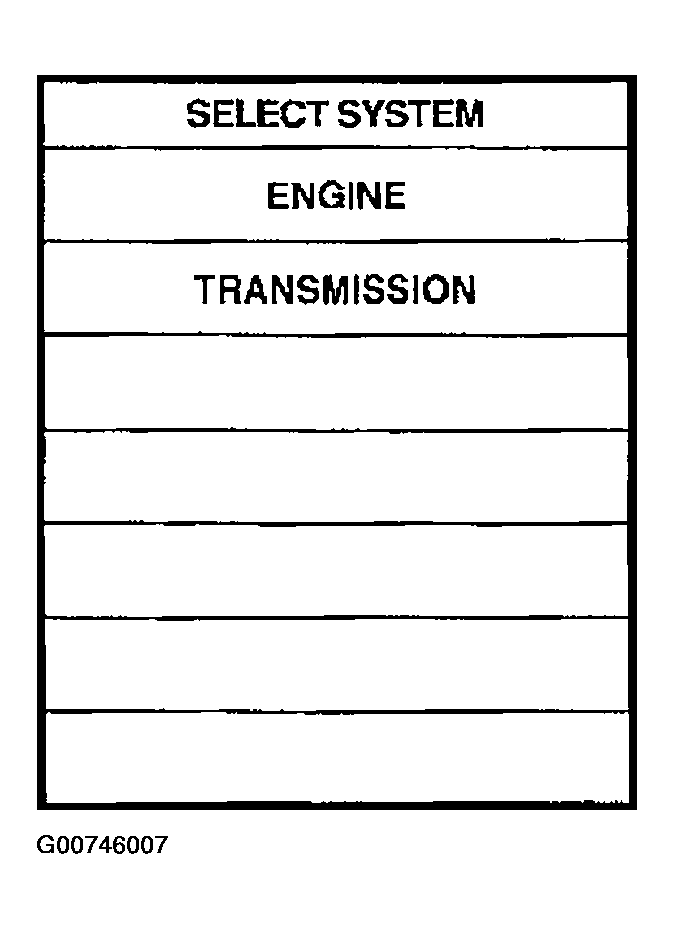

    Fig 1: CONSULT-II Display - Select System
    G00746007Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Select "DATA MONITOR" mode for "TRANSMISSION" with CONSULT-II.
  3. Set overdrive control switch to "OFF" position.
  4. Wait for at least 30 consecutive seconds.
  5. If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".
