Lever Switch

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between A/T device (lever switch) harness connector M34 terminals 1 and 2.

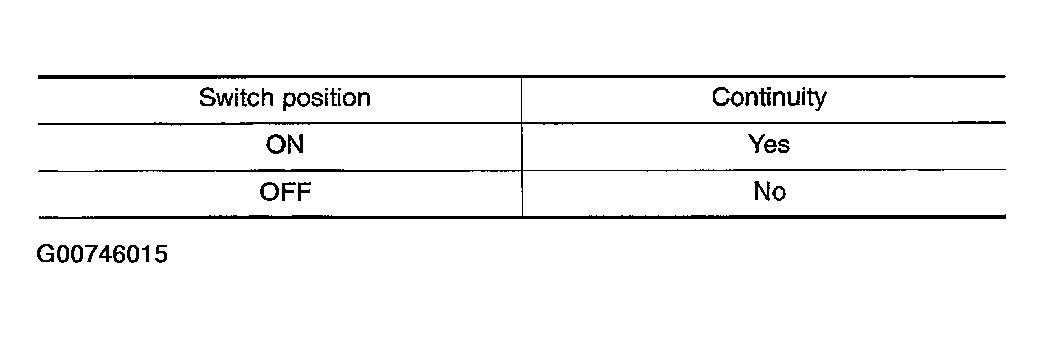

Fig 1: Connector Terminal Continuity Reference
G00746015Courtesy of NISSAN MOTOR CO., U.S.A.

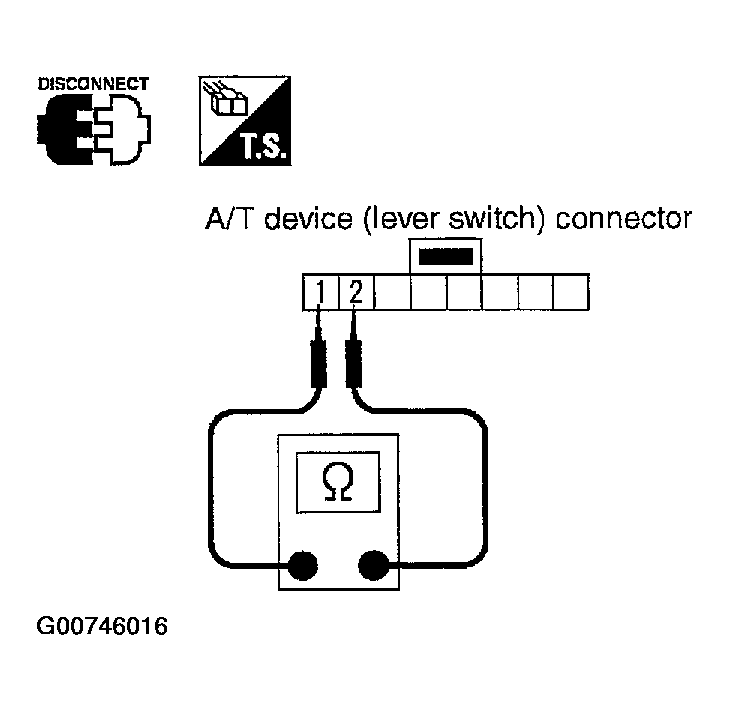

Fig 2: Checking Continuity Between A/T Device Harness Connector M34 Terminals 1 And 2
G00746016Courtesy of NISSAN MOTOR CO., U.S.A.
