With Consult-II

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "ON". (Do not start engine.)

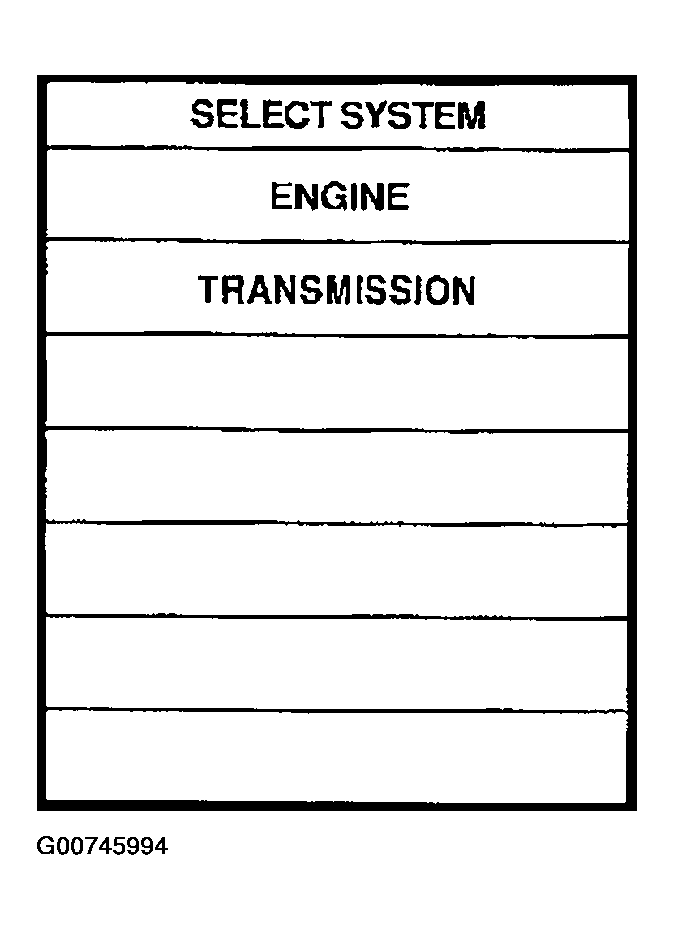

    Fig 1: CONSULT-II Display - Select System
    G00745994Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Select "DATA MONITOR" mode for "TRANSMISSION" with CONSULT-II.
  3. Start engine.
  4. Run engine for at least 4 consecutive minutes at idle speed.
  5. If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".
