With Consult-II

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "ON". (Do not start engine.)

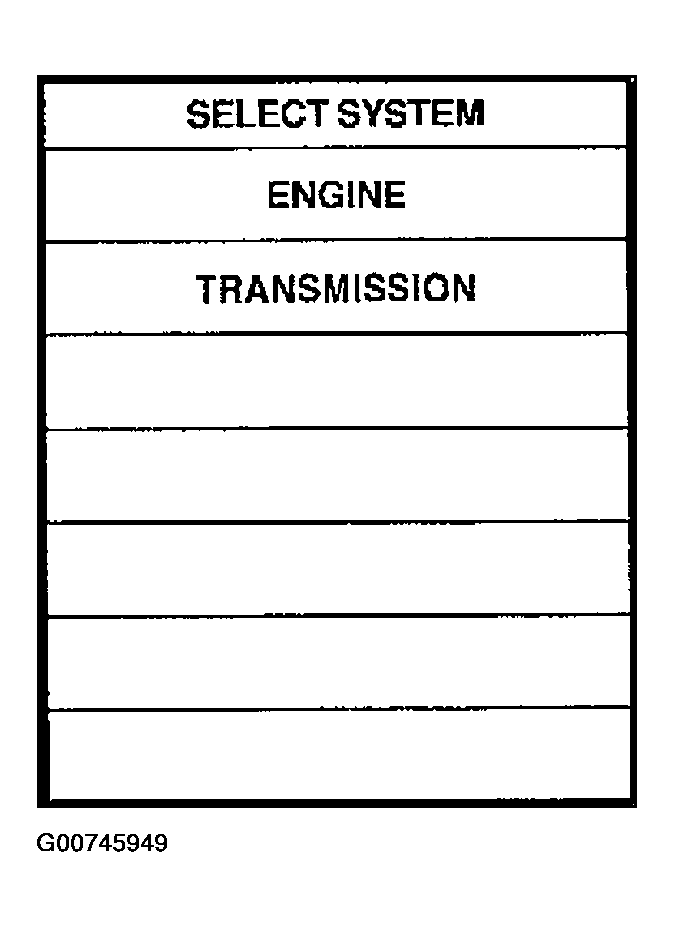

    Fig 1: CONSULT-II Display - Select System
    G00745949Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Select "DATA MONITOR" mode for "TRANSMISSION" with CONSULT-II.
  3. Start engine.
  4. Move selector lever between "N" and "R".

    SLCT LVR POSI: "N" <=> "R" position

  5. If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".
