Shift Solenoid Valve C

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "OFF".
  2. Disconnect terminal cord assembly harness connector.
  3. Check resistance between terminal 4 and ground.

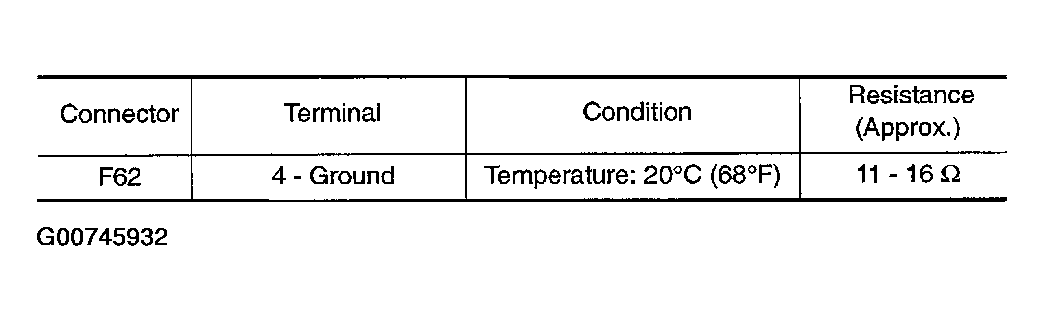

    Fig 1: Connector Terminal Resistance Specification
    G00745932Courtesy of NISSAN MOTOR CO., U.S.A.

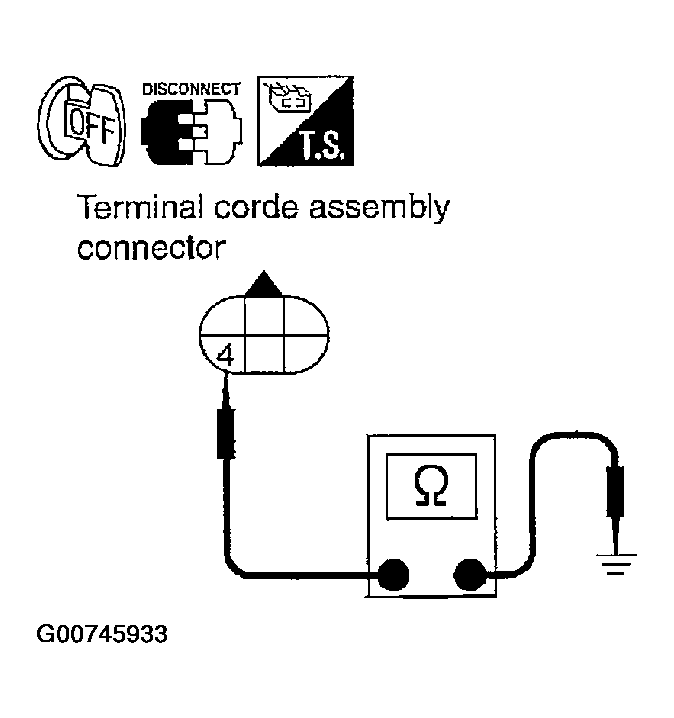

    Fig 2: Checking Resistance Between Terminal 4 And Ground
    G00745933Courtesy of NISSAN MOTOR CO., U.S.A.
  4. If NG, replace the transaxle assembly. Refer to "REMOVAL AND INSTALLATION ".
