With Consult-II

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch "ON". (Do not start engine.)

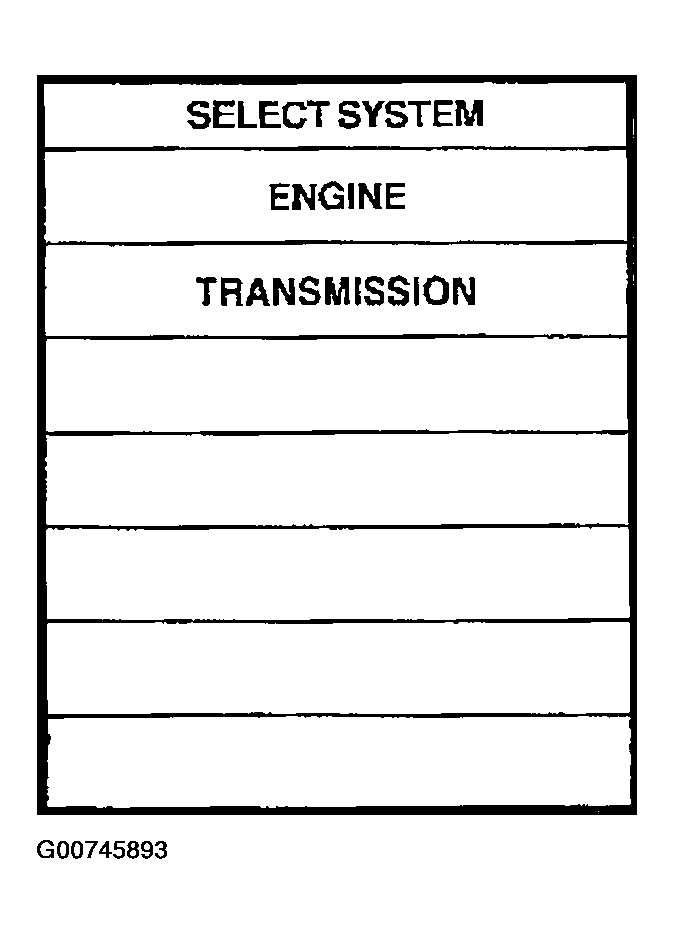

Fig 1: CONSULT-II Display - Select System
Courtesy of NISSAN MOTOR CO., U.S.A.
Select "DATA MONITOR" mode for "TRANSMISSION" with CONSULT-II.
Start engine.
Drive vehicle and allow the following conditions.
SLCT LVR POSI: "D" position

GEAR: 1st => 2nd and 4th => 5th position
If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".
