Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK SHIFT SOLENOID VALVE A SIGNAL

    With CONSULT-II

    1. Start engine.
    2. Select "DATA MONITOR" mode for "TRANSMISSION" with CONSULT-II.
    3. Drive vehicle and read out the value of "SFT SOL A OUT" and "SFT SOL A MON".

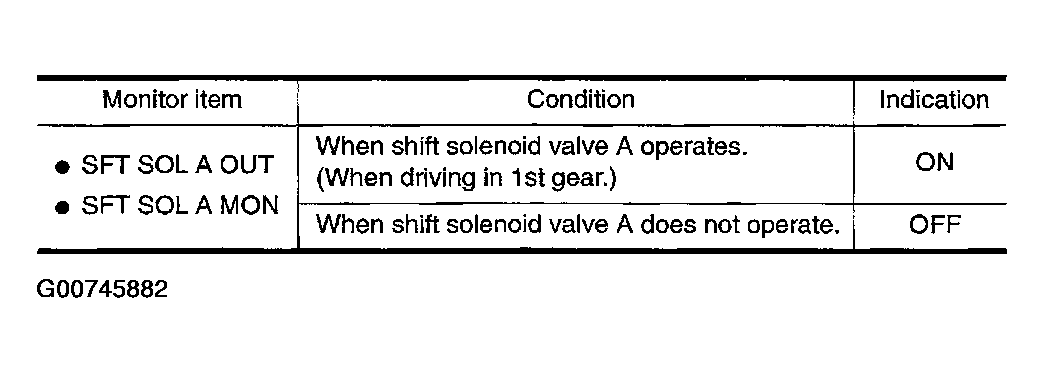

      Fig 1: Monitor Item Condition Chart
      G00745882Courtesy of NISSAN MOTOR CO., U.S.A.

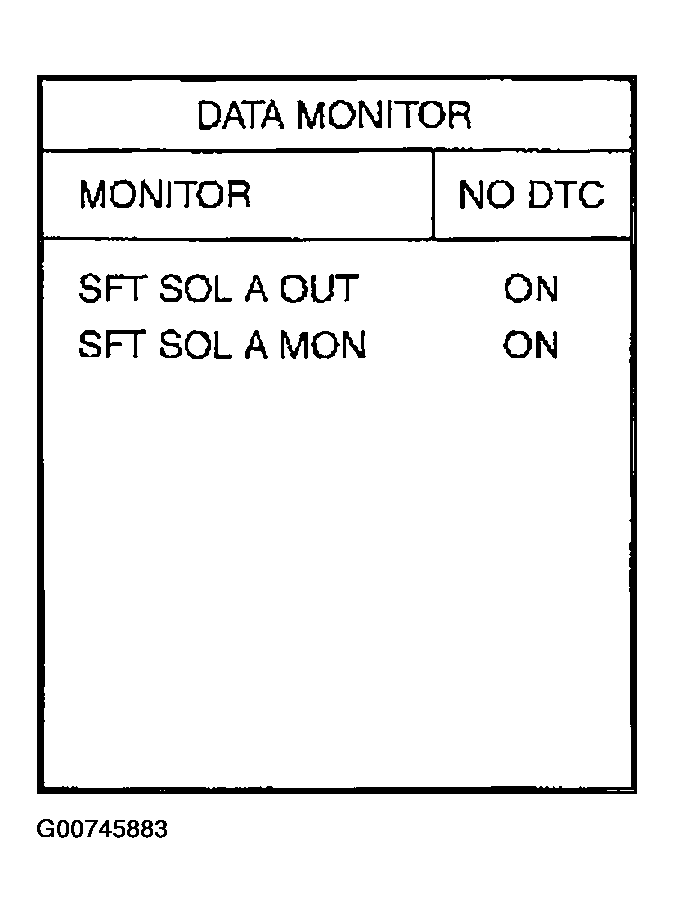

      Fig 2: CONSULT-II Display - Data Monitor
      G00745883Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    1. Drive vehicle.
    2. Check voltage between TCM connector terminal and ground.

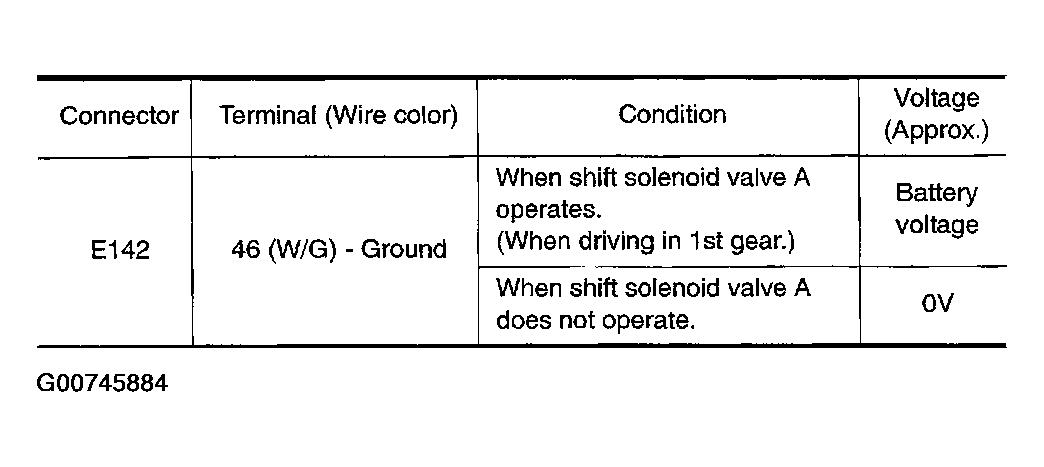

      Fig 3: Connector Terminal Voltage Chart
      G00745884Courtesy of NISSAN MOTOR CO., U.S.A.

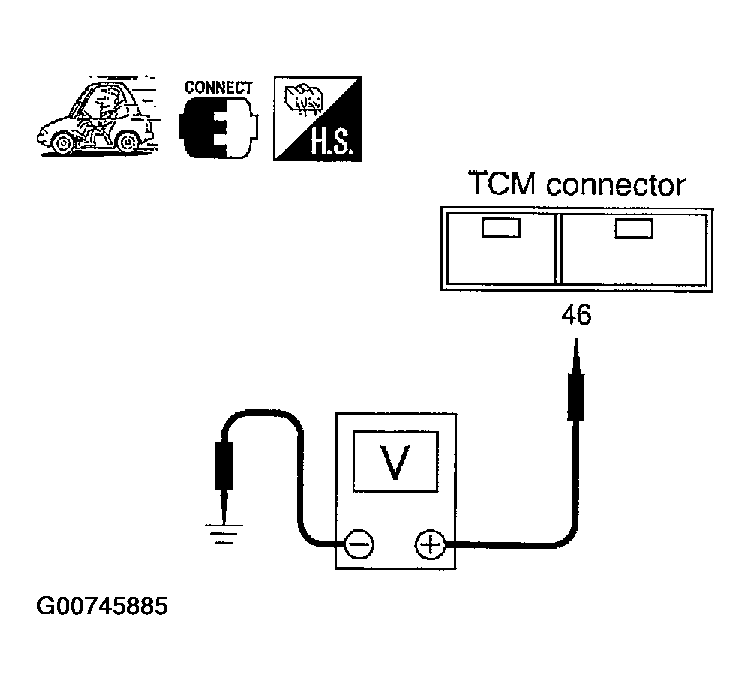

      Fig 4: Checking Voltage Between TCM Connector Terminal And Ground
      G00745885Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO  5.
    2. NG: GO TO 2.
  2. CHECK SHIFT SOLENOID VALVE A CIRCUIT
    1. Turn ignition switch "OFF".
    2. Disconnect the TCM connector.
    3. Check resistance between TCM connector terminal 46 and ground.

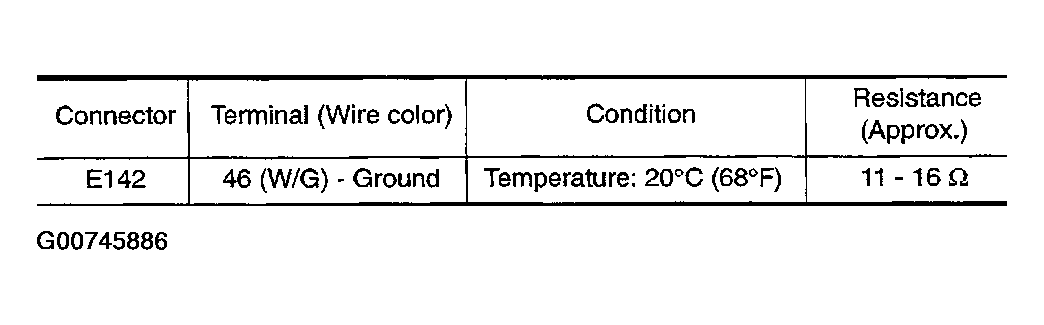

      Fig 5: Connector Terminal Resistance Specification
      G00745886Courtesy of NISSAN MOTOR CO., U.S.A.

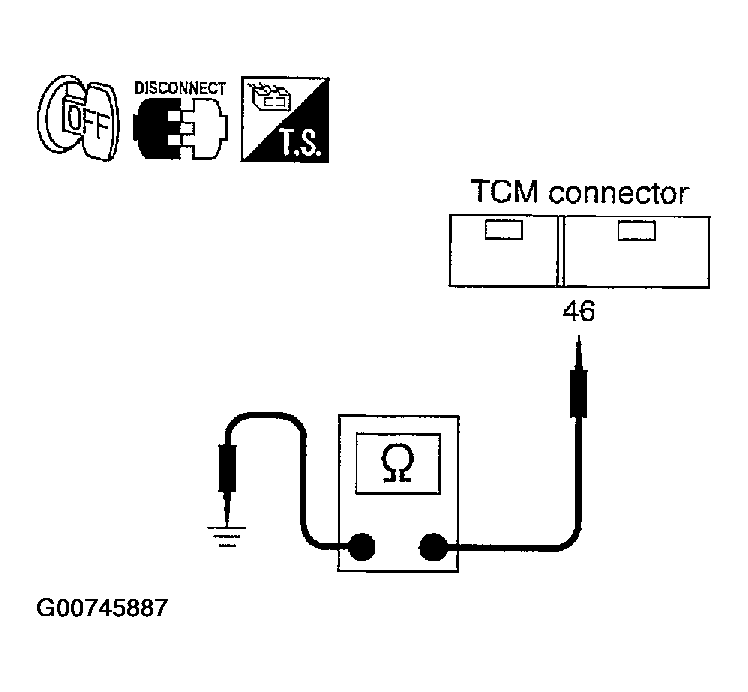

      Fig 6: Checking Resistance Between TCM Connector Terminal 46 And Ground
      G00745887Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO  5.
    2. NG: GO TO 3.
  3. CHECK SHIFT SOLENOID VALVE A
    1. Turn ignition switch "OFF".
    2. Disconnect terminal cord assembly harness connector.
    3. Check resistance between terminal 2 and ground.

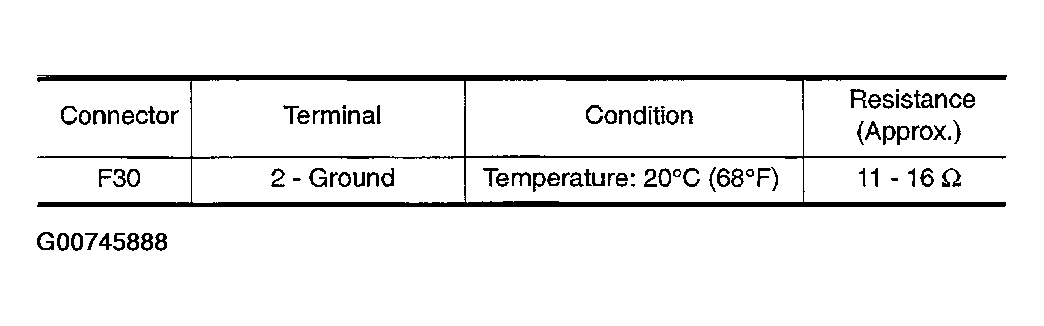

      Fig 7: Connector Terminal Resistance Specification
      G00745888Courtesy of NISSAN MOTOR CO., U.S.A.

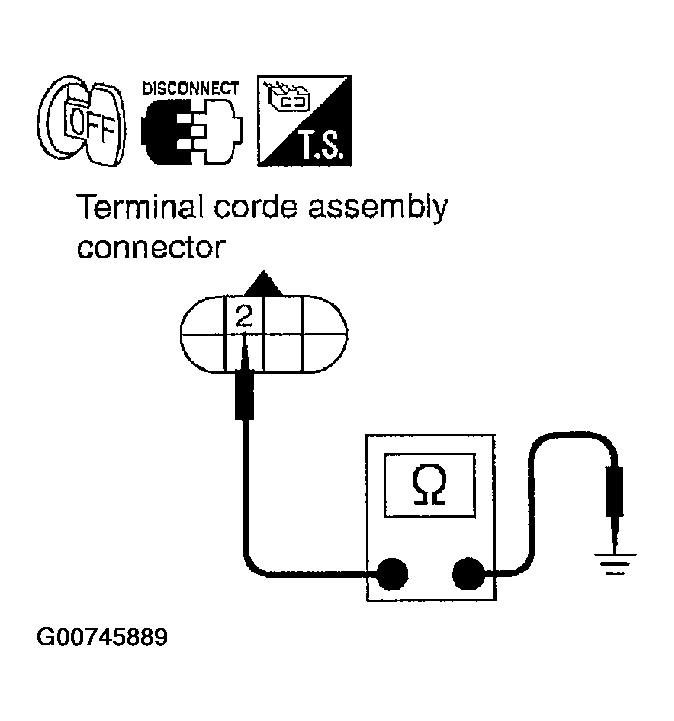

      Fig 8: Checking Resistance Between Terminal 2 And Ground
      G00745889Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Reinstall any part removed.

    OK or NG

    1. OK: GO TO 4.
    2. NG: Replace the transaxle assembly. Refer to "REMOVAL AND INSTALLATION ".
  4. CHECK HARNESS BETWEEN TCM AND SHIFT SOLENOID VALVE A

    Check the following.

    • Open or short-circuit in the harness between TCM and shift solenoid valve A.

    OK or NG

    1. OK: GO TO 5.
    2. NG: Repair or replace damaged parts.
  5. CHECK DTC

    Perform "DTC Confirmation Procedure". Refer to "DTC CONFIRMATION PROCEDURE ".

    OK or NG

    1. OK: INSPECTION END
    2. NG: GO TO 6.
  6. CHECK TCM
  1. Check TCM input/output signal.
  2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

OK or NG

  1. OK: INSPECTION END
  2. NG: Repair or replace damaged parts.
