Diagnostic Procedure

1. CHECK PRESSURE CONTROL SOLENOID VALVE A SIGNAL

   With CONSULT-II

   1. After warming up the engine and transaxle, turn ignition switch "OFF".
   2. Turn ignition switch "ON". (Do not start engine.)
   3. Select "DATA MONITOR" mode for "TRANSMISSION" with CONSULT-II.
   4. Read out the value of "PC SOL A OUT" and "PC SOL A MON".

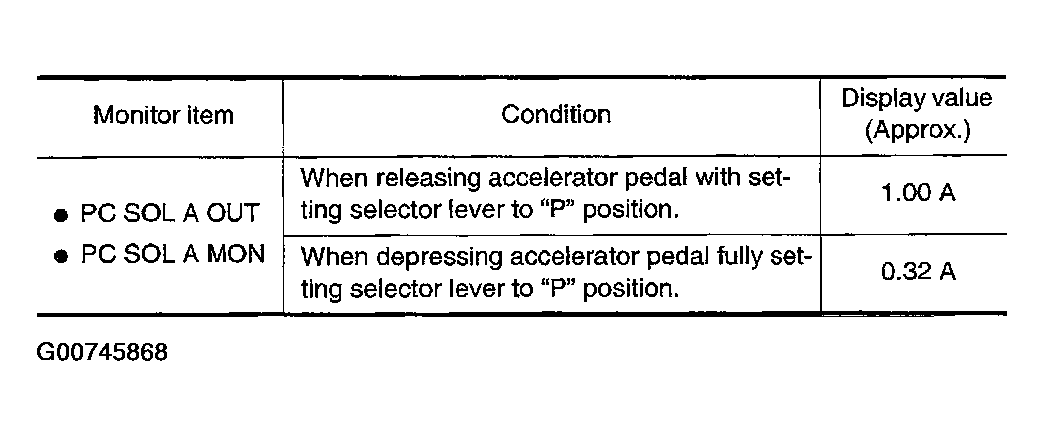

      Fig 1: Monitor Item Condition Chart

      Courtesy of NISSAN MOTOR CO., U.S.A.

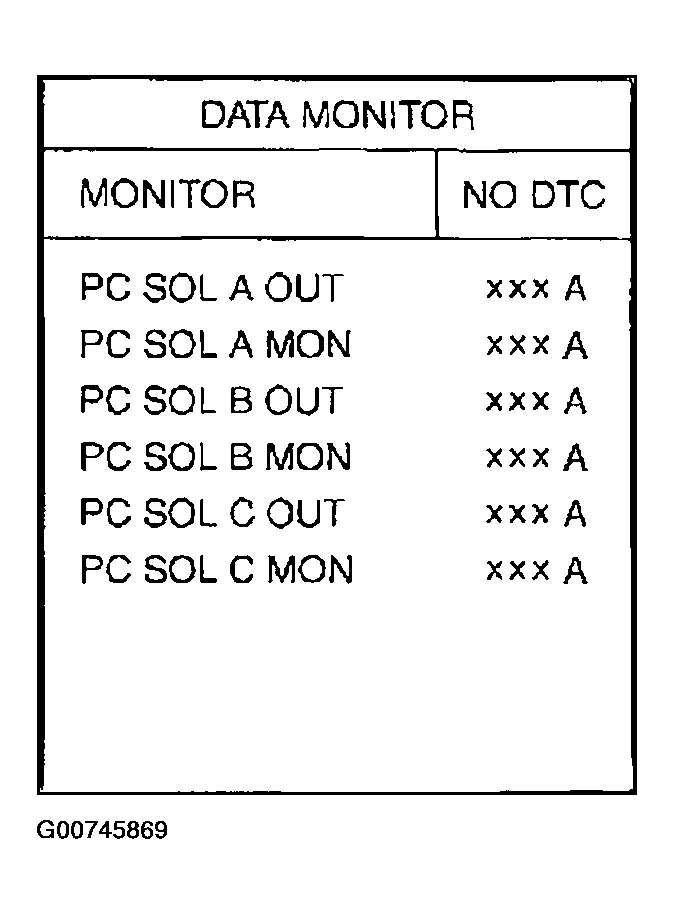

      Fig 2: CONSULT-II Display - Data Monitor

      Courtesy of NISSAN MOTOR CO., U.S.A.

   Without CONSULT-II

   1. Start the engine.
   2. Check pulse between TCM connector terminals 35 and 40.

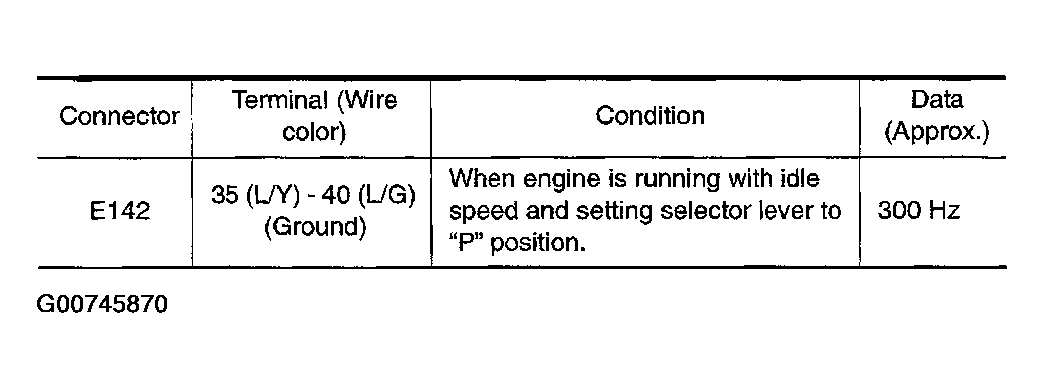

      Fig 3: Connector Terminal Voltage Condition Chart

      Courtesy of NISSAN MOTOR CO., U.S.A.

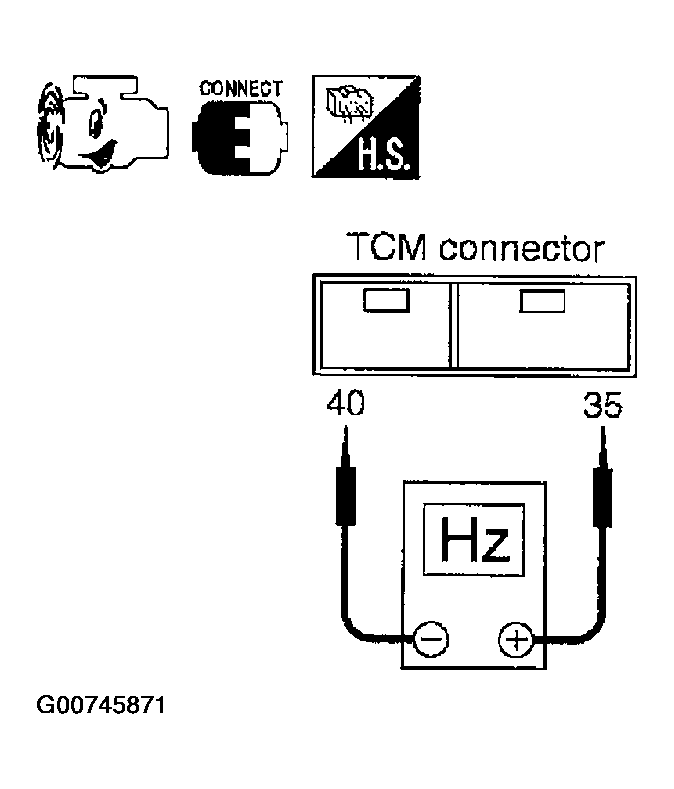

      Fig 4: Checking Pulse Between TCM Connector Terminals 35 And 40

      Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   1. OK: GO TO  5.
   2. NG: GO TO 2.
2. CHECK PRESSURE CONTROL SOLENOID VALVE A CIRCUIT
   1. Turn ignition switch "OFF".
   2. Disconnect the TCM connector.
   3. Check resistance between TCM connector terminals 35 and 40.

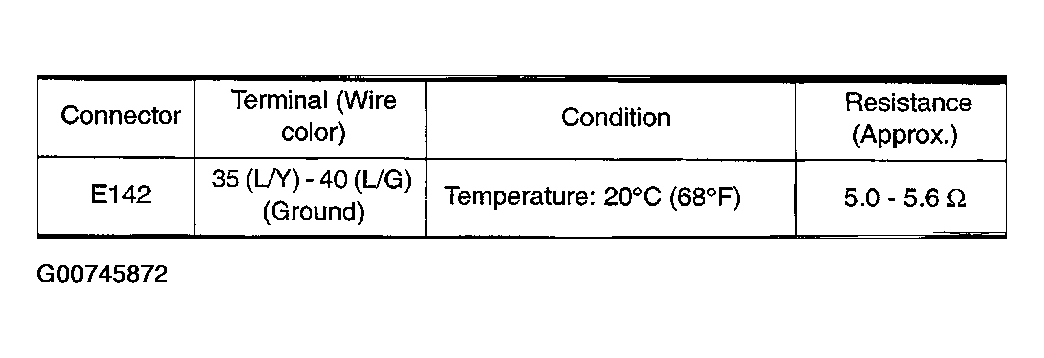

      Fig 5: Connector Terminal Resistance Specification

      Courtesy of NISSAN MOTOR CO., U.S.A.

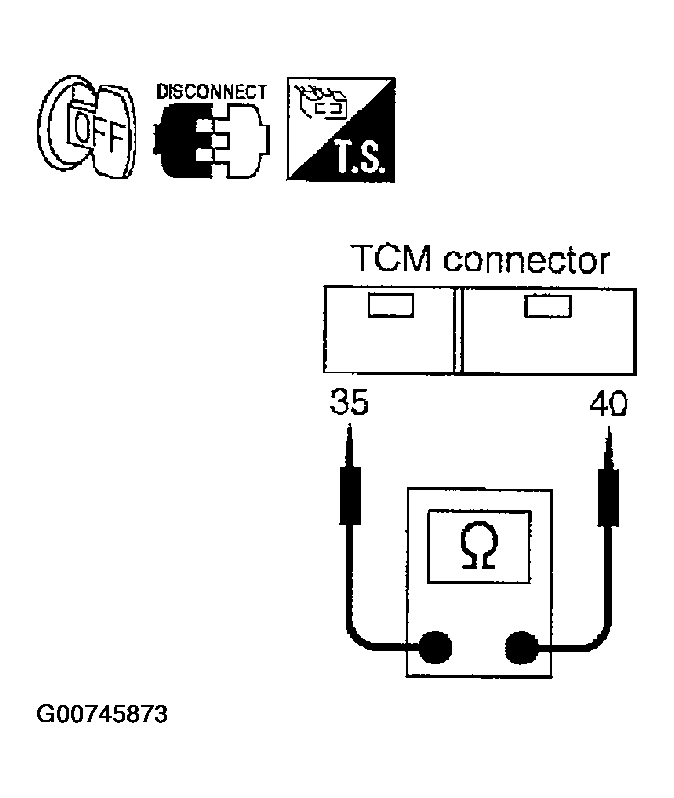

      Fig 6: Checking Resistance Between TCM Connector Terminals 35 And 40

      Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   1. OK: GO TO  5.
   2. NG: GO TO 3.
3. CHECK PRESSURE CONTROL SOLENOID VALVE A
   1. Turn ignition switch "OFF".
   2. Disconnect terminal cord assembly harness connector.
   3. Check resistance between terminals 3 and 6.

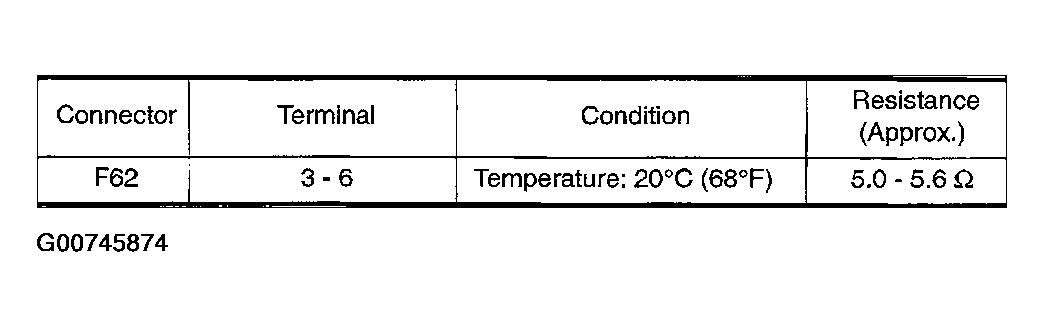

      Fig 7: Connector Terminal Resistance Specification

      Courtesy of NISSAN MOTOR CO., U.S.A.

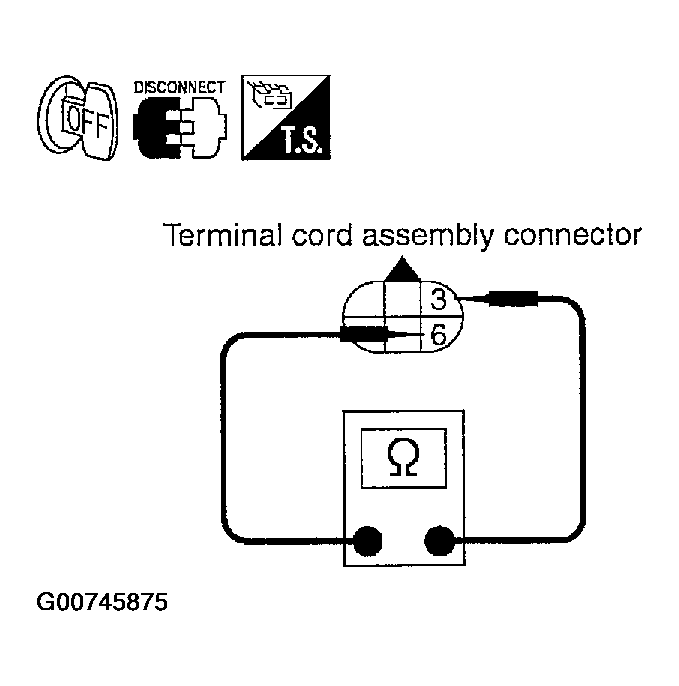

      Fig 8: Checking Resistance Between Terminals 3 And 6

      Courtesy of NISSAN MOTOR CO., U.S.A.
   4. Reinstall any part removed.

   OK or NG

   1. OK: GO TO 4.
   2. NG: Replace the transaxle assembly. Refer to "REMOVAL AND INSTALLATION ".
4. CHECK HARNESS BETWEEN TCM AND PRESSURE CONTROL SOLENOID VALVE A

   Check the following.

   • Open or short-circuit in the harness between TCM and pressure control solenoid valve A.

   OK or NG

   1. OK: GO TO 5.
   2. NG: Repair or replace damaged parts.
5. CHECK DTC

   Perform "DTC Confirmation Procedure". Refer to "DTC CONFIRMATION PROCEDURE ".

   OK or NG

   1. OK: INSPECTION END
   2. NG: GO TO 6.
6. CHECK TCM

1. Check TCM input/output signal.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

OK or NG

1. OK: INSPECTION END
2. NG: Repair or replace damaged parts.
