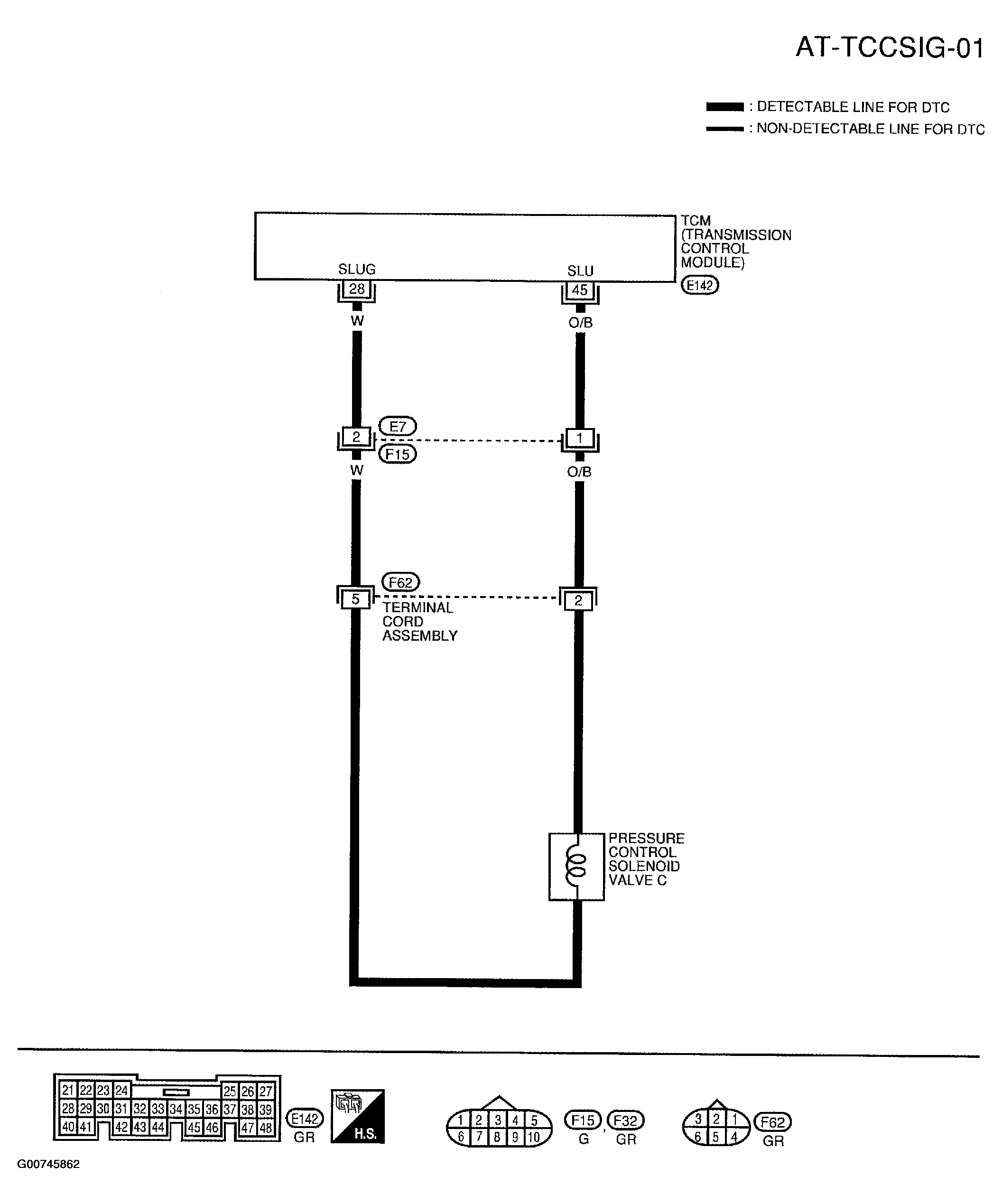

Fig 1: Wiring Diagram - AT-TCCSIG-01
Courtesy of NISSAN MOTOR CO., U.S.A.

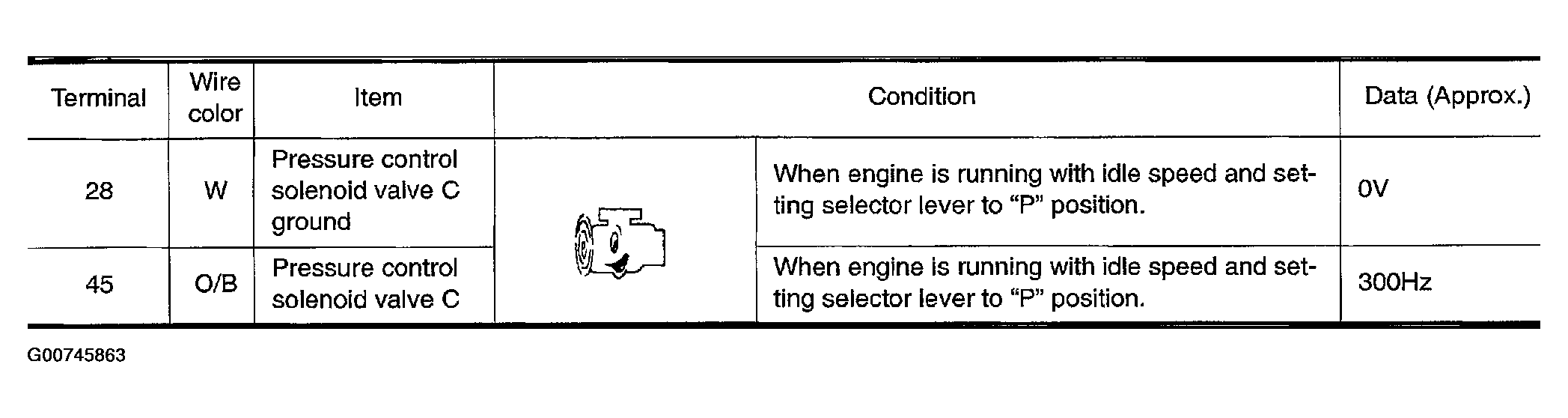

TCM terminals and data are reference value. Measured between each terminal and ground.
Fig 2: TCM Terminals And Data Reference Value Chart
