Wiring Diagram - AT-4THSIG

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For references to PG-POWER, see GROUND DISTRIBUTION & POWER DISTRIBUTION .

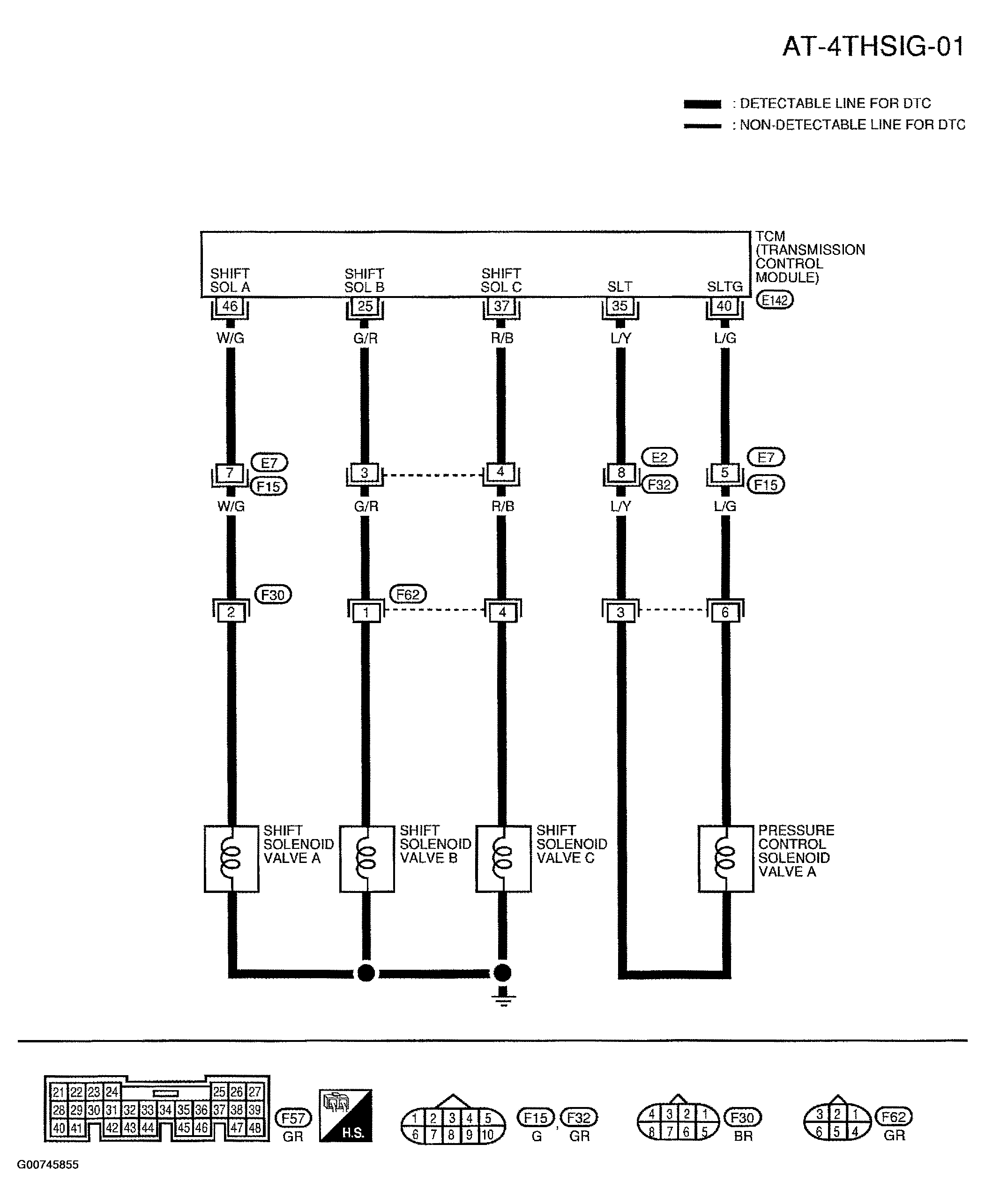

Fig 1: Wiring Diagram - AT-4THSIG-01

Courtesy of NISSAN MOTOR CO., U.S.A.

TCM terminals and data are reference value. Measured between each terminal and ground.

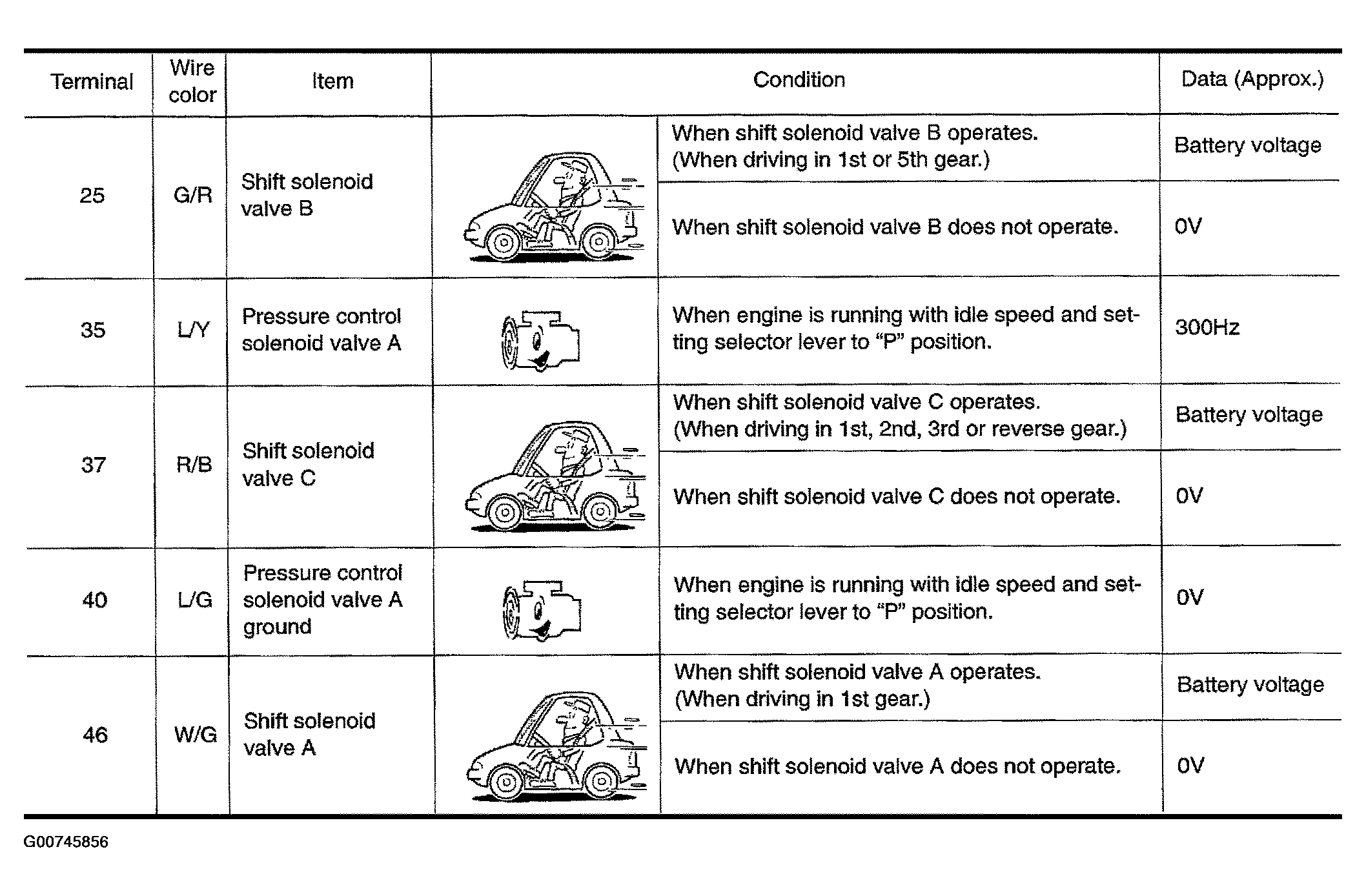

Fig 2: TCM Terminals And Data Reference Value Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
