Wiring Diagram - AT-2NDSIG

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For references to PG-POWER, see GROUND DISTRIBUTION & POWER DISTRIBUTION .

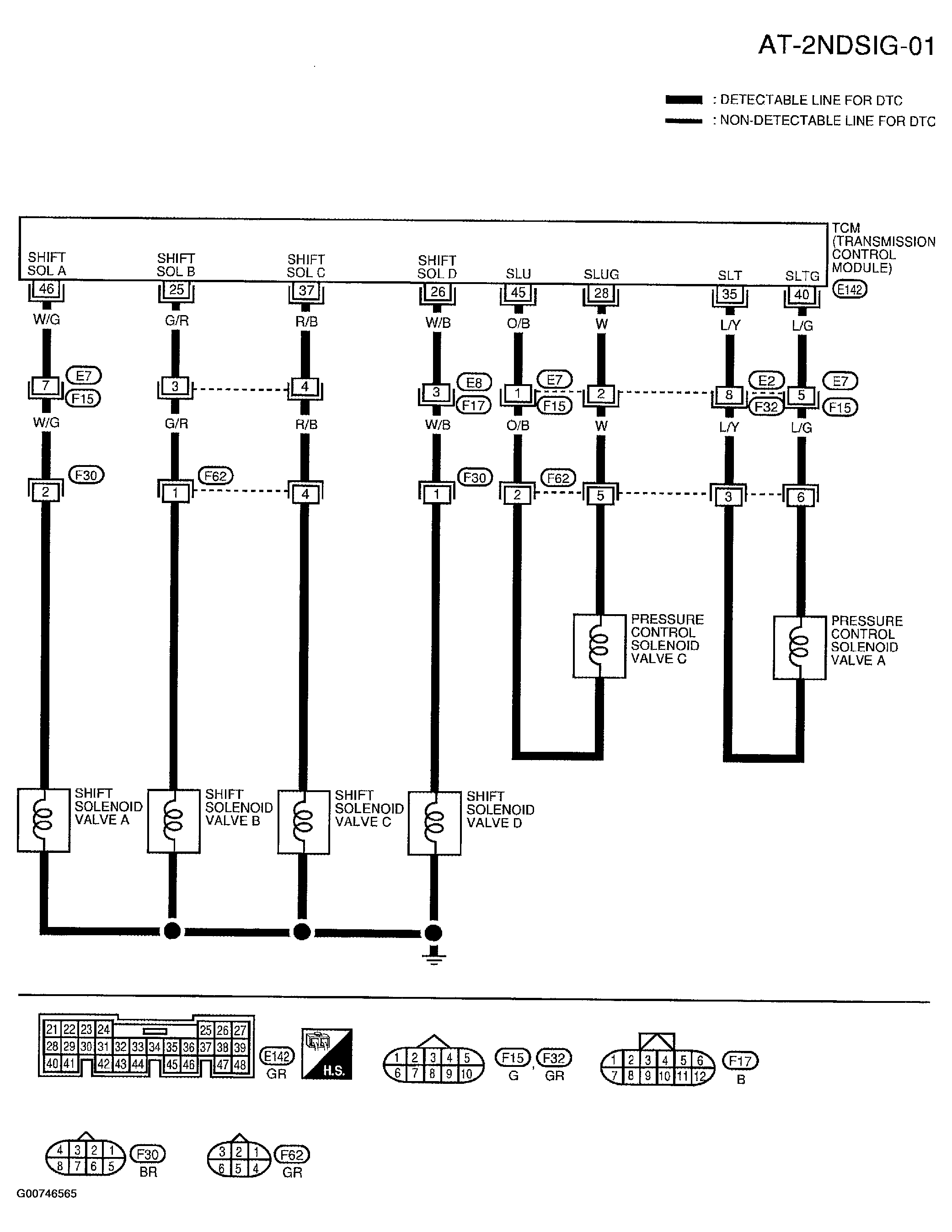

Fig 1: A/T 2nd Gear Function - Wiring Diagram (AT-2NDSIG-01)

Courtesy of NISSAN MOTOR CO., U.S.A.

TCM terminals and data are reference value. Measured between each terminal and ground.

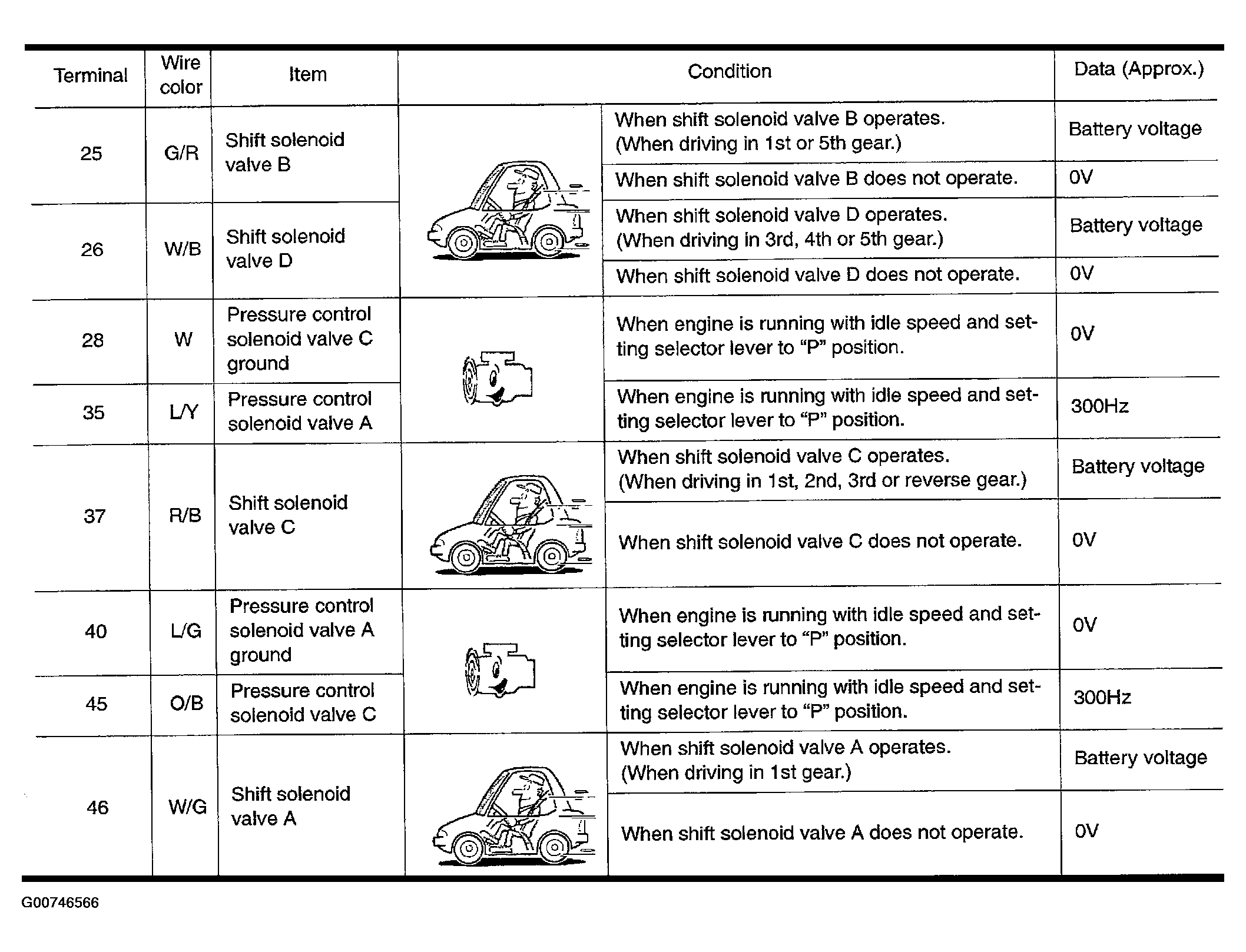

Fig 2: TCM Terminals And Data Are Reference Value Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
