Wiring Diagram - AT-VSSATC

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For references to PG-POWER, see GROUND DISTRIBUTION & POWER DISTRIBUTION .

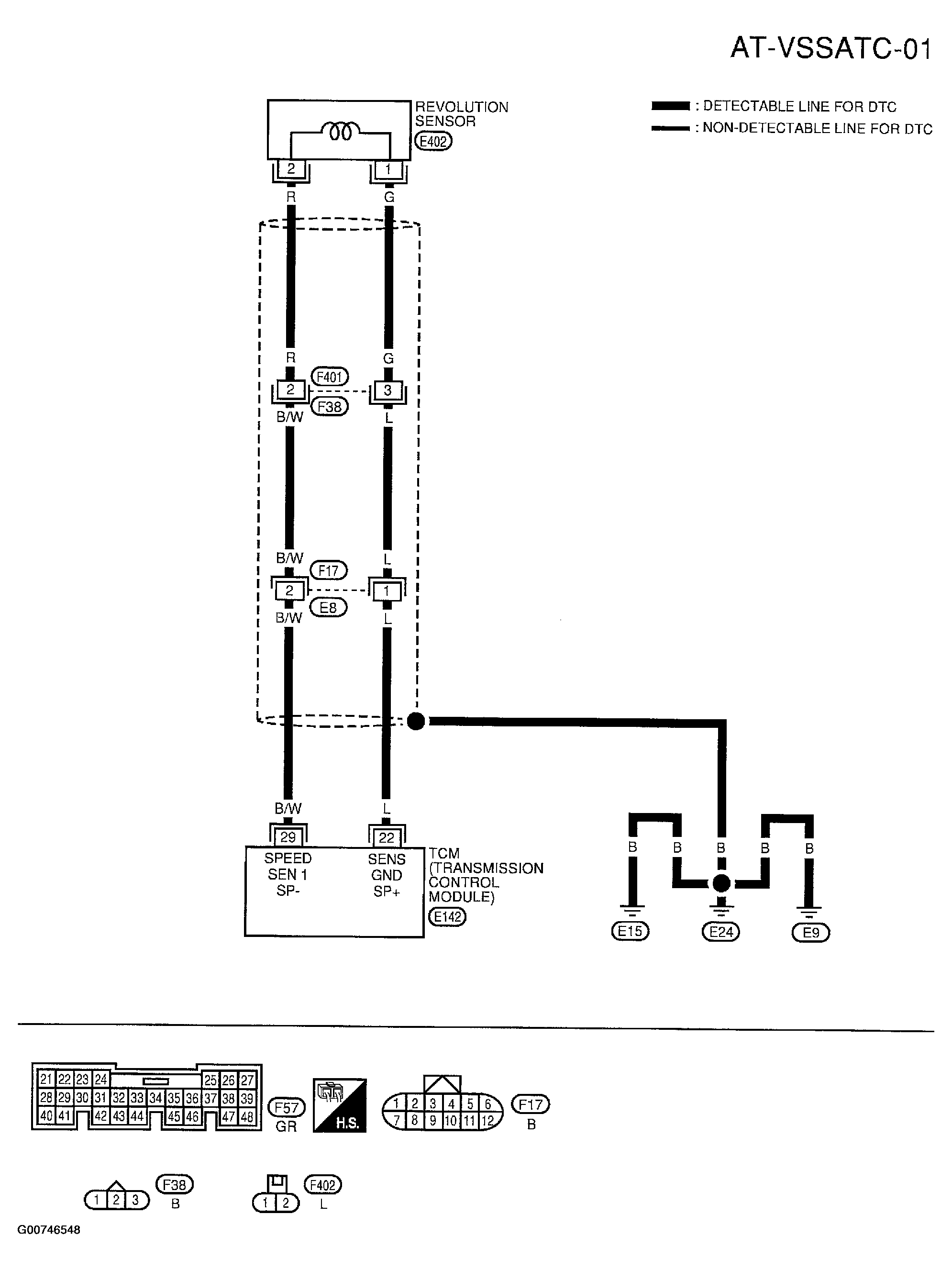

Fig 1: Vehicle Speed Sensor A/T (Revolution Sensor) - Wiring Diagram (AT-VSSATC-01)

Courtesy of NISSAN MOTOR CO., U.S.A.

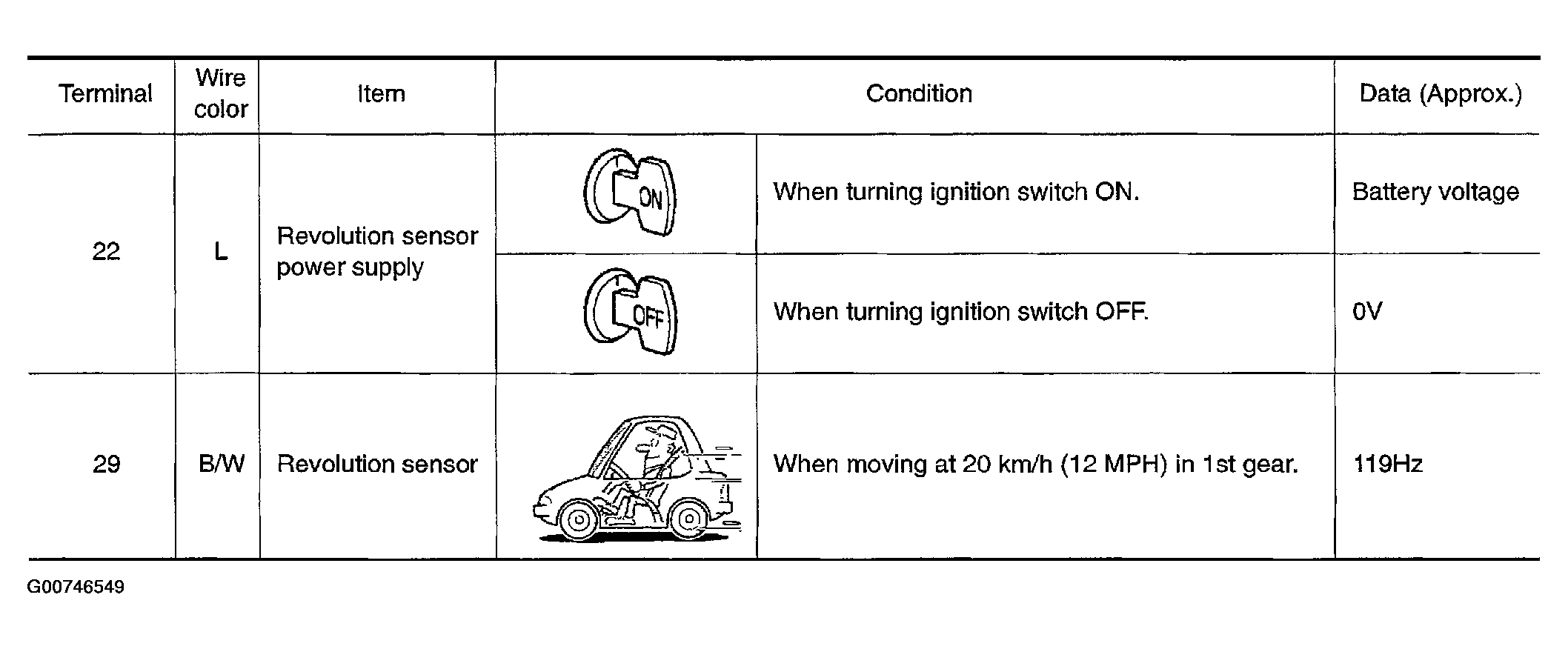

TCM terminals and data are reference value. Measured between each terminal and ground.

Fig 2: TCM Terminals And Data Are Reference Value Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
