Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK PNP SWITCH CIRCUIT

    With CONSULT-II

    1. Turn ignition switch "ON". (Do not start engine.)
    2. Select "DATA MONITOR" mode for "TRANSMISSION" with CONSULT-II.
    3. Move selector lever to "P", "R""N""D" and "L" position and check the value of "PNP SW A""PNP SW B""PNP SW C""PNP SW PA" and "PNP SW PN".

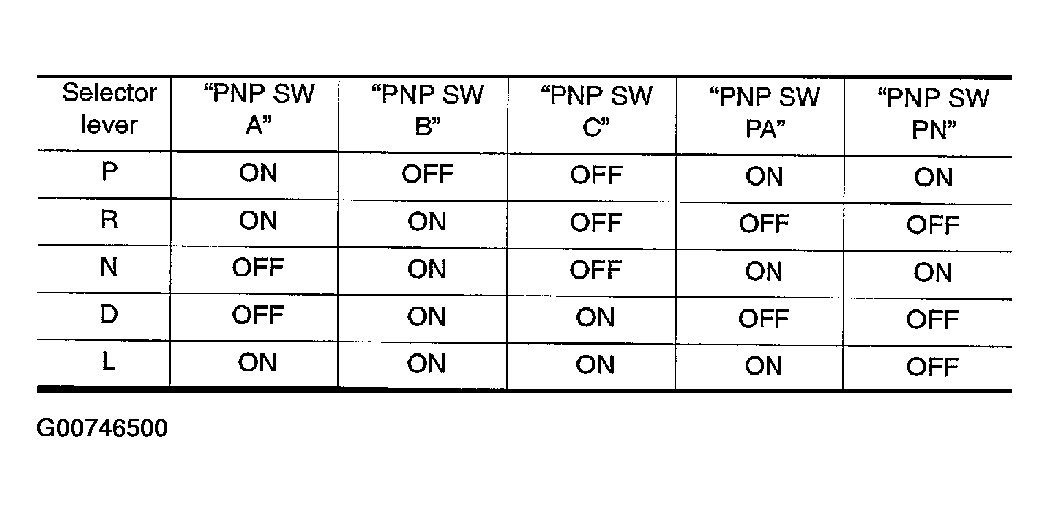

      Fig 1: CONSULT-II Display - Data Monitor
      G00746500Courtesy of NISSAN MOTOR CO., U.S.A.

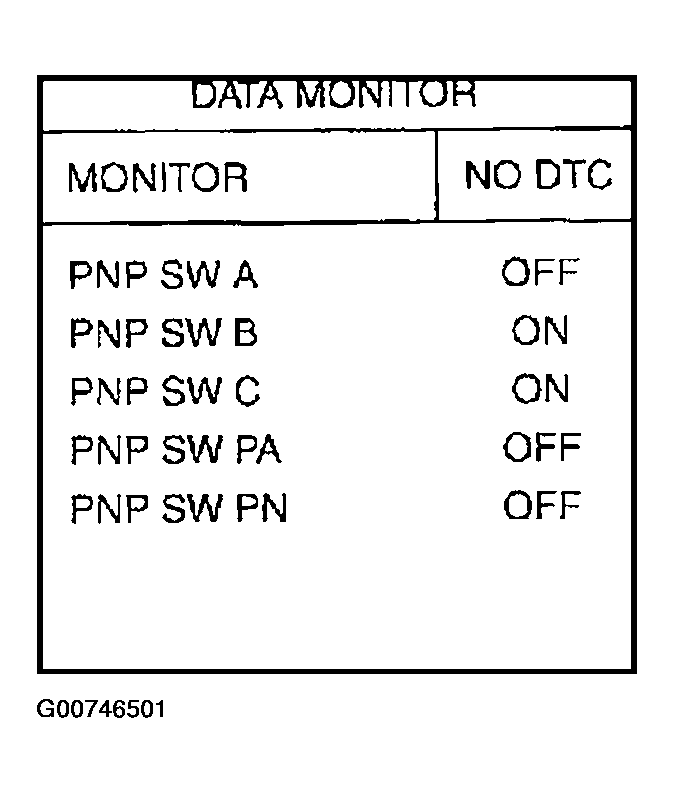

      Fig 2: Data Monitor Chart
      G00746501Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    1. Turn ignition switch "ON". (Do not start engine.)
    2. Move selector lever to "P", "R""N""D" and "L" position and check voltage between the TCM connector terminals and ground.

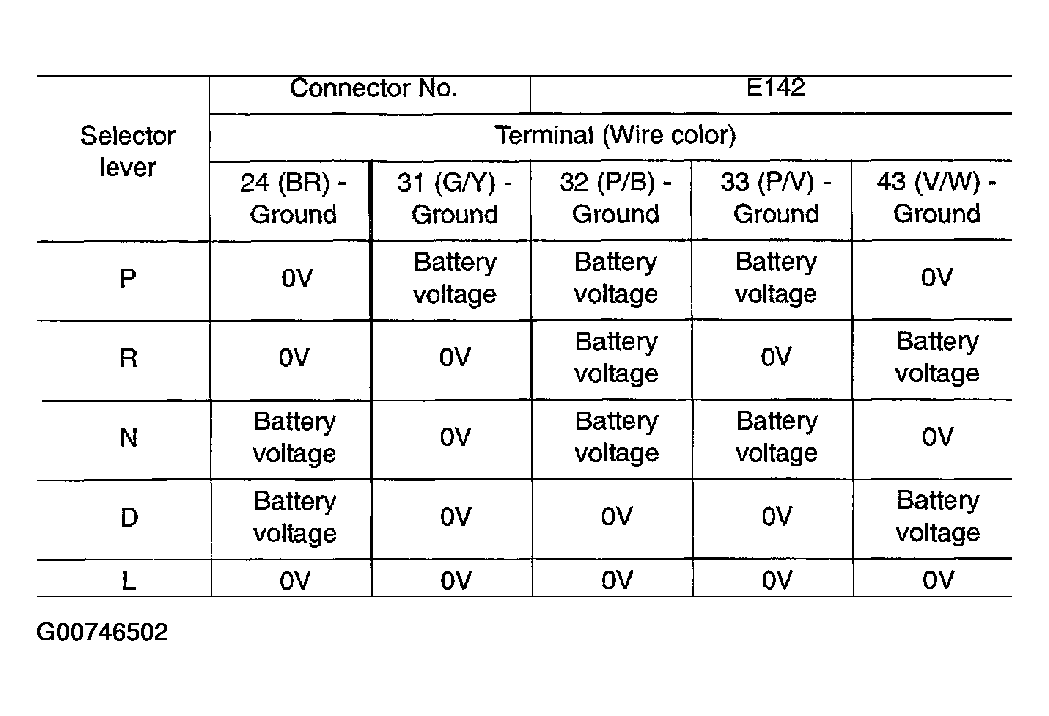

      Fig 3: Checking Voltage Between TCM Connector Terminals And Ground
      G00746502Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO  5.
    2. NG: GO TO 2.

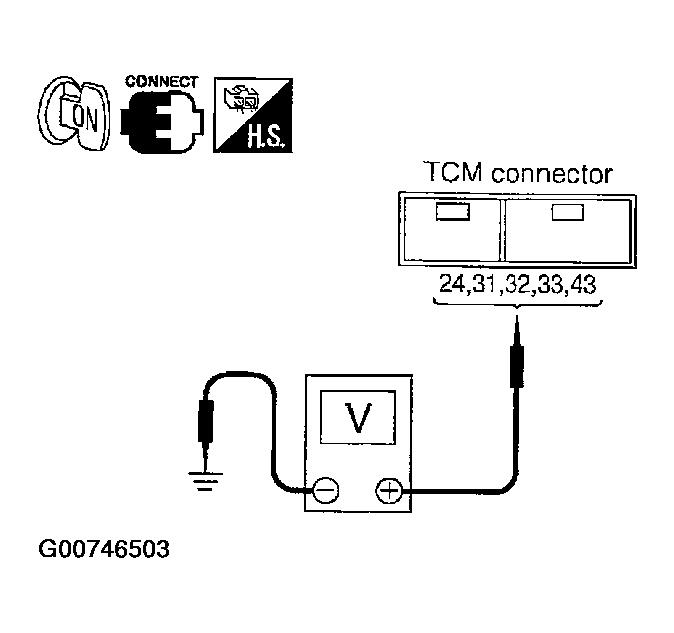

    Fig 4: Connector Terminals Reference
    G00746503Courtesy of NISSAN MOTOR CO., U.S.A.
  2. CHECK PNP SWITCH POWER SOURCE CIRCUIT
    1. Turn ignition switch "OFF".
    2. Disconnect the PNP switch connector.
    3. Turn ignition switch "ON". (Do not start engine.)
    4. Check the voltage between PNP switch connector terminal 1 and ground.

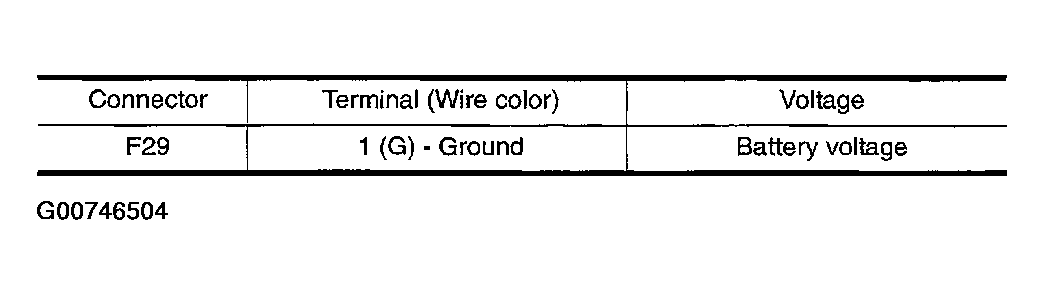

      Fig 5: Terminals Voltage Reference Table
      G00746504Courtesy of NISSAN MOTOR CO., U.S.A.

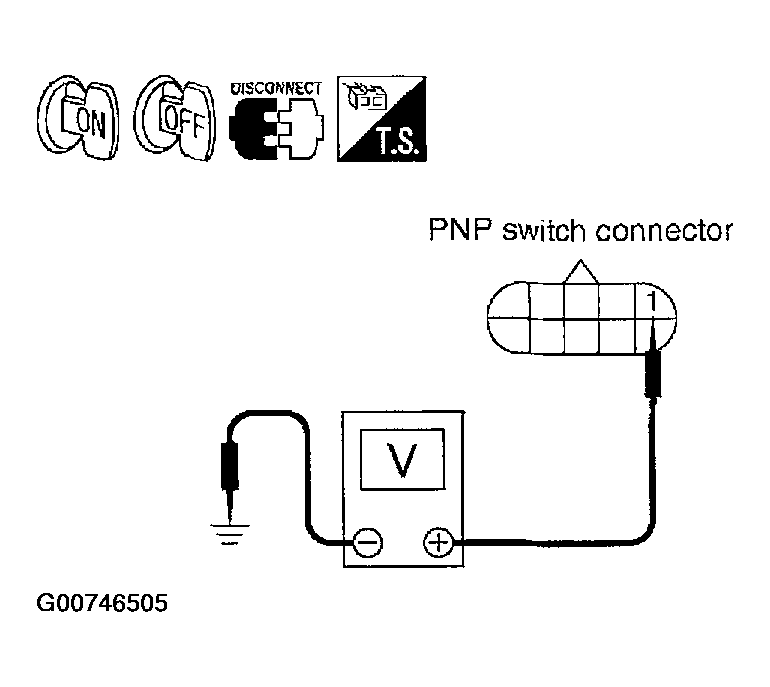

      Fig 6: Checking Voltage Between PNP Switch Connector Terminal 1 And Ground
      G00746505Courtesy of NISSAN MOTOR CO., U.S.A.
    5. Turn ignition switch "OFF".
    6. Check voltage between PNP switch connector terminal 1 and ground.

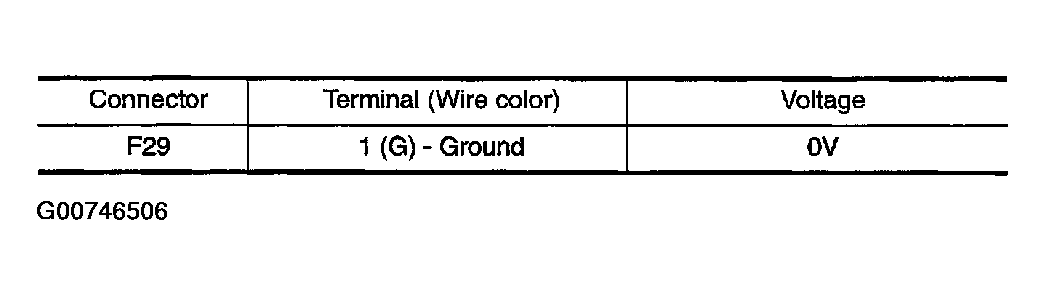

      Fig 7: Terminals Voltage Reference Table
      G00746506Courtesy of NISSAN MOTOR CO., U.S.A.
    7. If OK, check harness for short-circuit to ground or power source.

    OK or NG

    1. OK: GO TO 3.
    2. NG: Check the following. If any items are damaged, repair or replace damaged parts.
      • Harness for short or open between ignition switch and PNP switch
      • Ignition switch and fuse

        Refer to POWER DISTRIBUTION .

  3. CHECK HARNESS BETWEEN TCM AND PNP SWITCH
    1. Turn ignition switch "OFF".
    2. Disconnect the TCM connector and PNP switch connector.
    3. Check continuity between TCM connector terminals 24, 31, 32, 43 and ground.

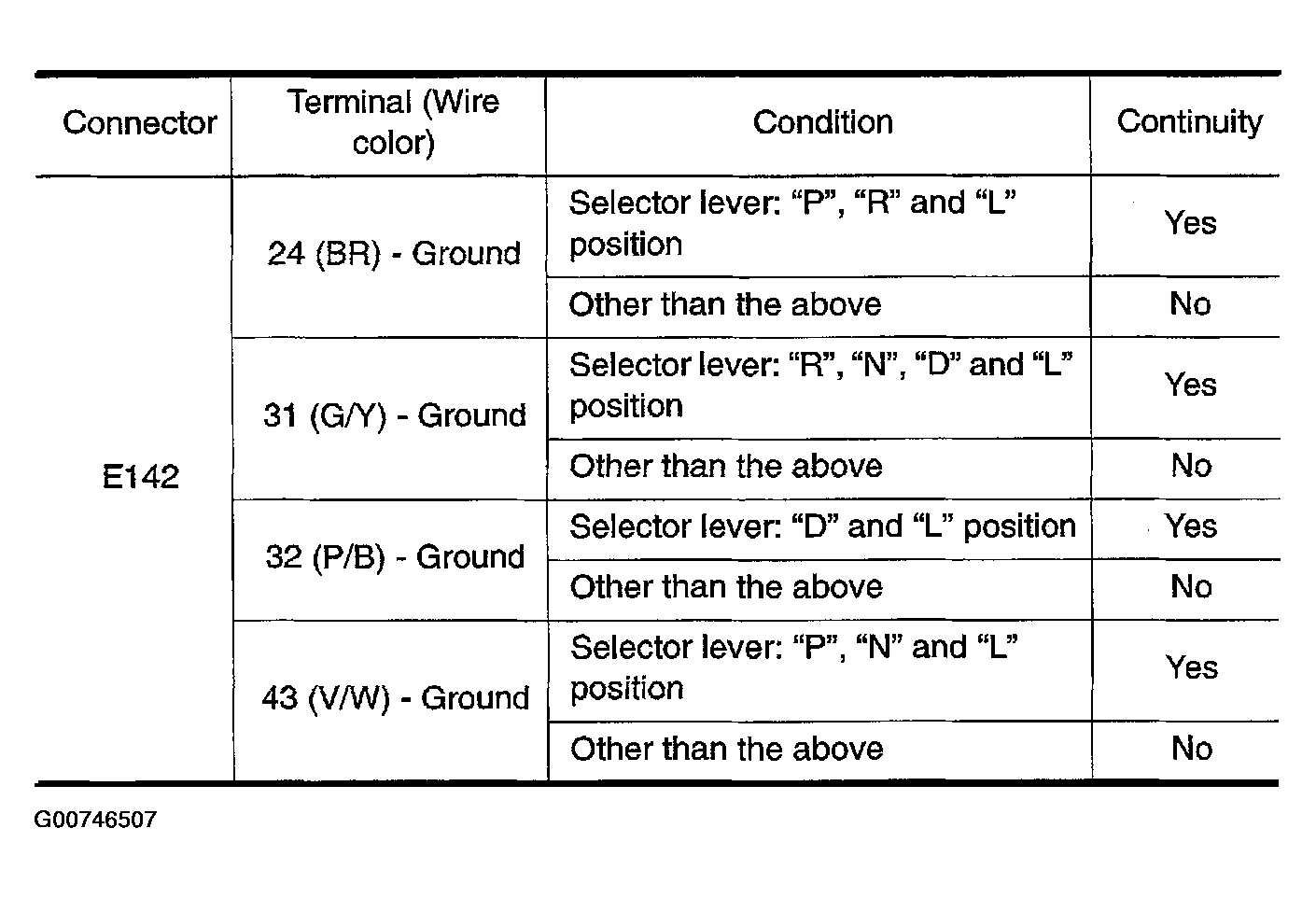

      Fig 8: Terminals Continuity Condition Reference Table
      G00746507Courtesy of NISSAN MOTOR CO., U.S.A.

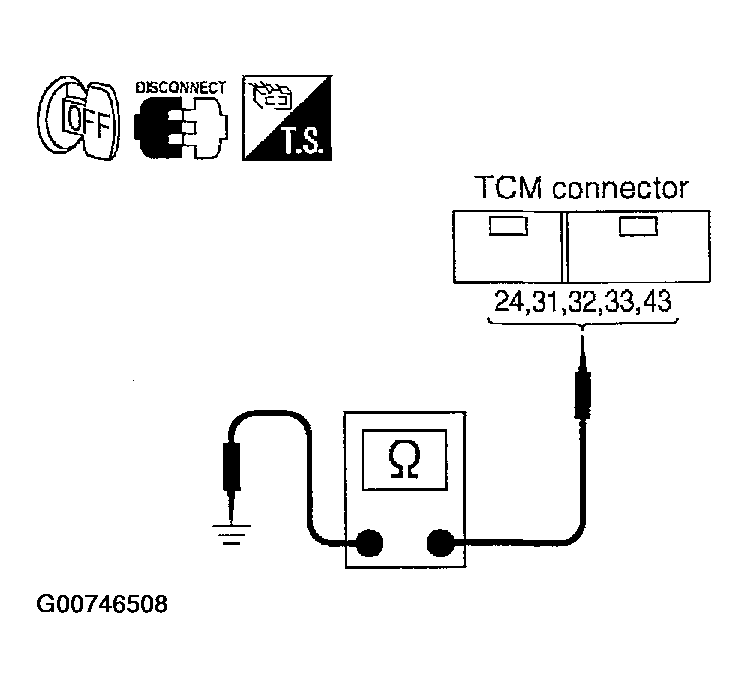

      Fig 9: Checking Continuity Between TCM Connector Terminals 24, 31, 32, 43 And Ground
      G00746508Courtesy of NISSAN MOTOR CO., U.S.A.
    4. If OK, check the following.
      • Harness for short-circuit to ground or power source.
      • Open or short-circuit in the harness between combination meter and TCM.

    OK or NG

    1. OK: GO TO  5.
    2. NG: GO TO 4.
  4. DETECT MALFUNCTIONING ITEM

    Check the following.

    • Open or short-circuit in the harness between TCM and PNP switch A, B, C, PA.
    • Open or short-circuit in the harness for ground of PNP switch.
    • PNP switch. Refer to "COMPONENT INSPECTION ".

    OK or NG

    1. OK: GO TO  6.
    2. NG: Repair or replace damaged parts.
  5. CHECK DTC

    Perform "DTC Confirmation Procedure". Refer to "DTC CONFIRMATION PROCEDURE ".

    OK or NG

    1. OK: INSPECTION END
    2. NG: GO TO 6.
  6. CHECK TCM
    1. Check TCM input/output signal.
    2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

    OK or NG

    1. OK: INSPECTION END
    2. NG: Repair or replace damaged parts.
