With Consult-II

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "ON" and select "DATA MONITOR" mode for "TRANSMISSION" with CONSULT-II.
  2. Start engine.
  3. Drive vehicle and maintain the following conditions for at least 5 consecutive seconds.

    VHCL/S SE-A/T: 30 km/h (17 MPH) or more

    ACCELE ANGLE: 10% or less

  4. If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

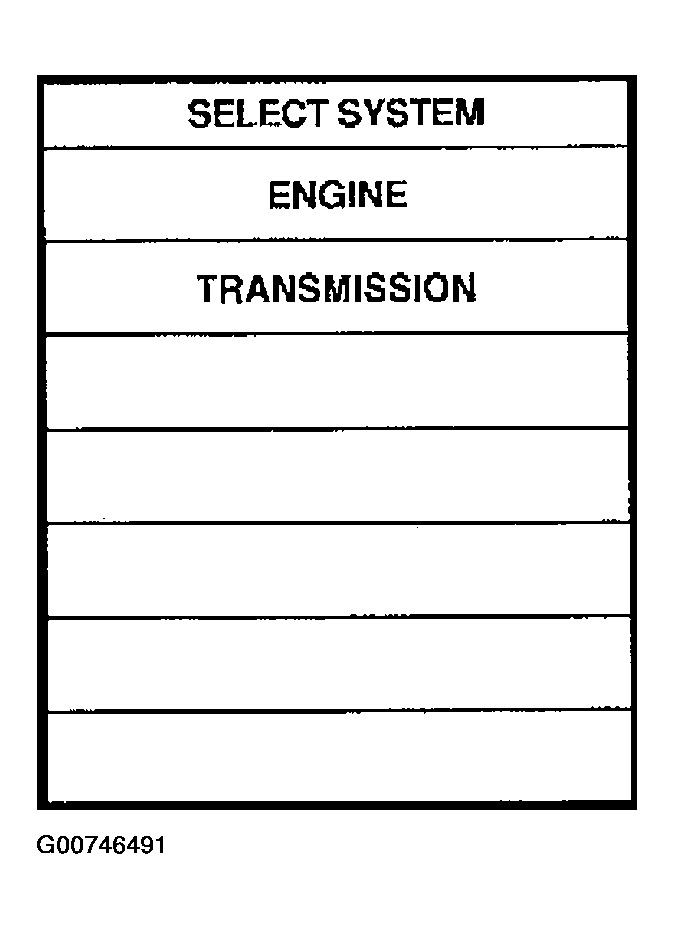

    Fig 1: CONSULT-II Display - Transmission
    G00746491Courtesy of NISSAN MOTOR CO., U.S.A.
