Wiring Diagram -AT- SHIFT

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For references to PG-POWER, see GROUND DISTRIBUTION & POWER DISTRIBUTION .

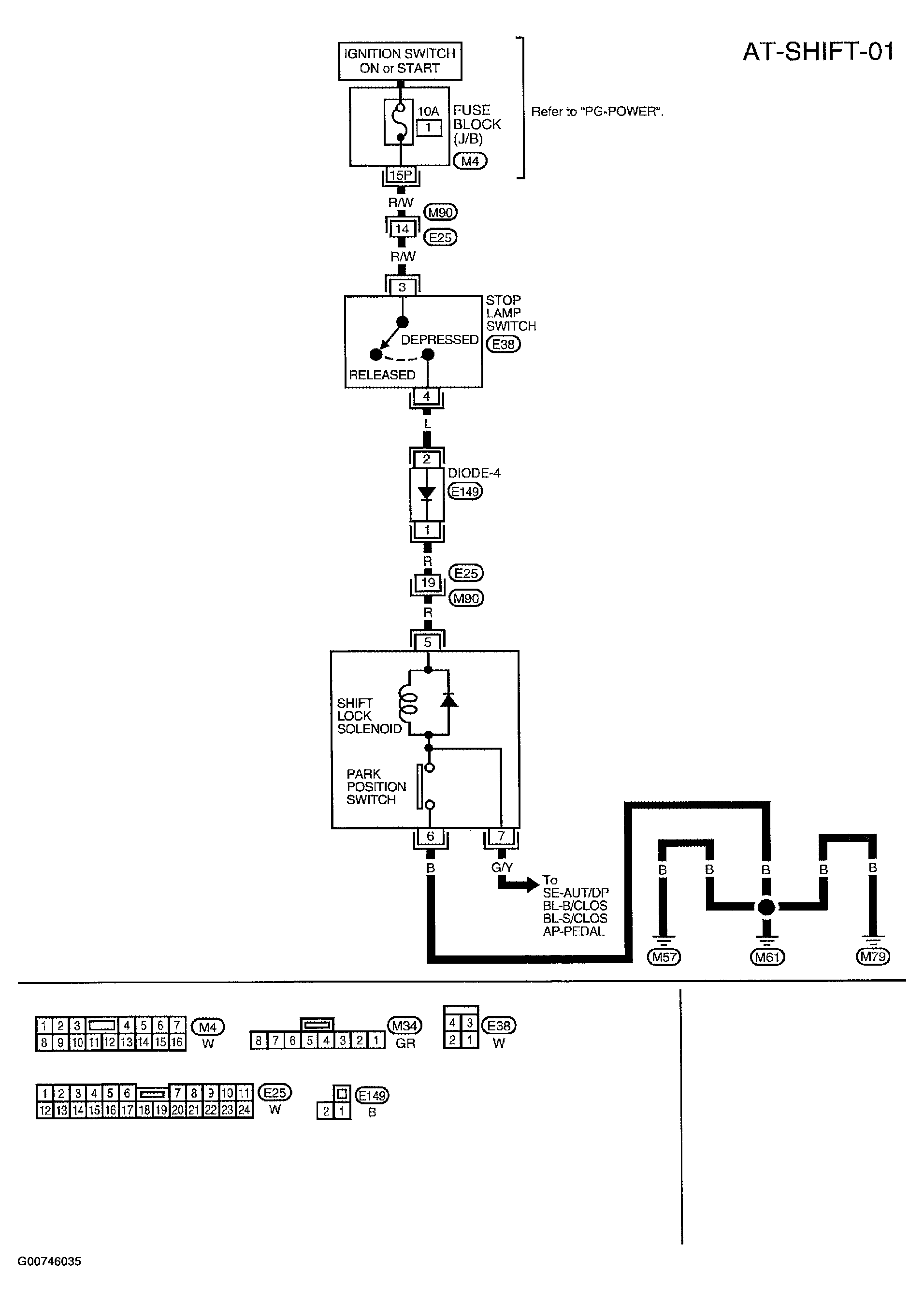

Fig 1: Wiring Diagram -AT- SHIFT
G00746035Courtesy of NISSAN MOTOR CO., U.S.A.
