Function Of Clutch And Brake

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

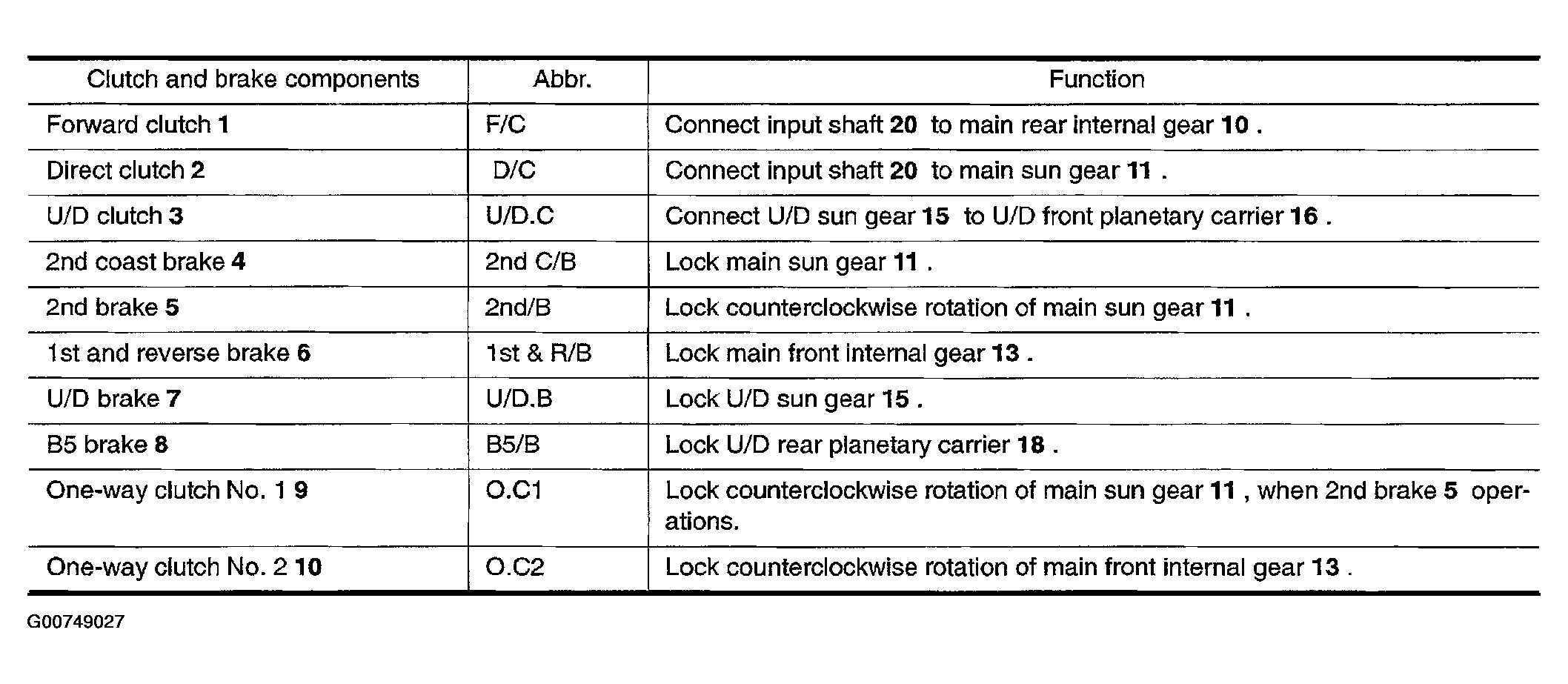

Fig 1: Function Of Clutch And Brake Specification
G00749027Courtesy of NISSAN MOTOR CO., U.S.A.
