Clutch And Band Chart

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

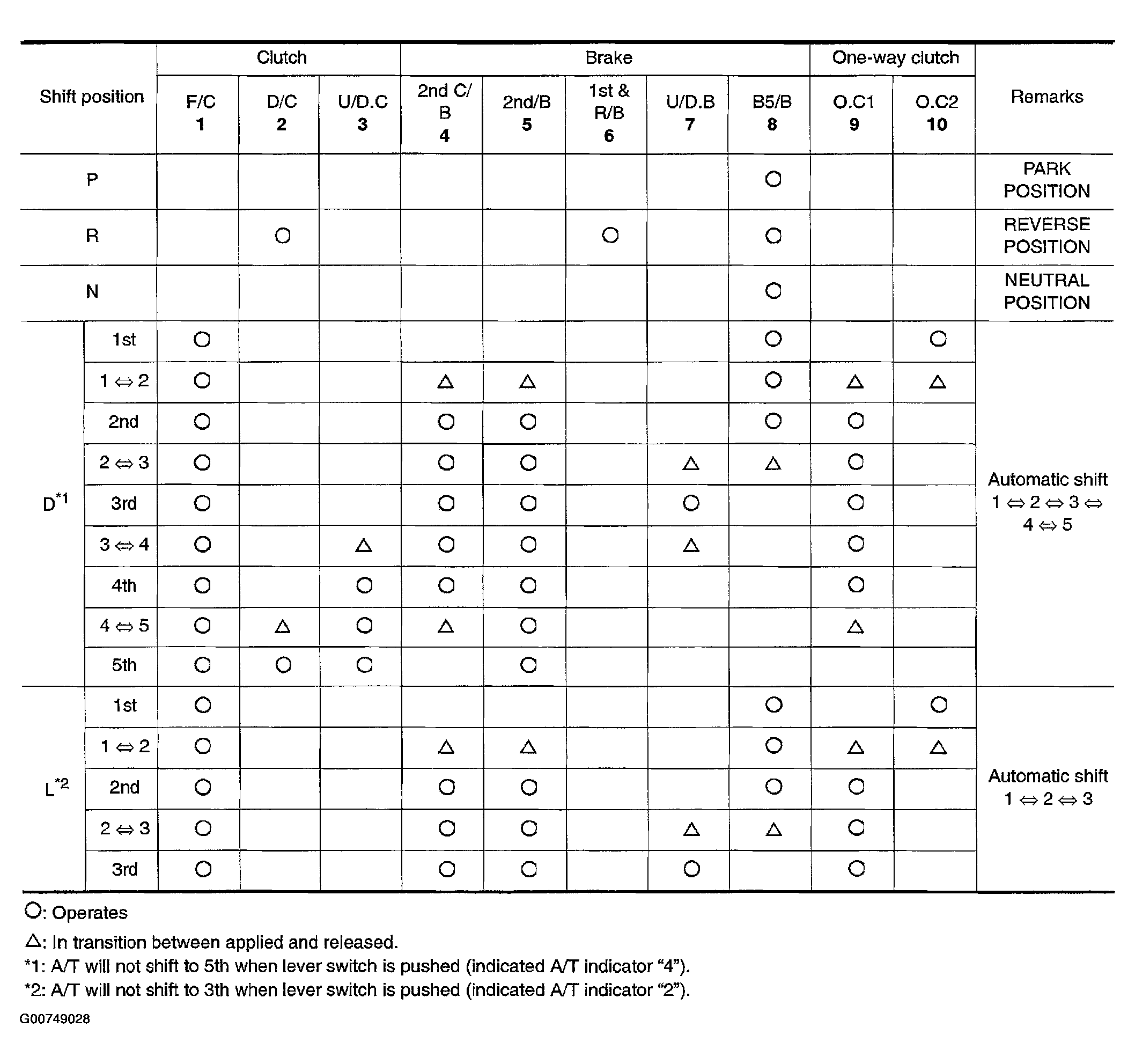

Fig 1: Clutch And Band Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: When shifting D to L position or lever switch pushes (indicated A/T indicator "4" at D position or "2" at L position), down shift permission control is activated. Refer to "DOWN SHIFT PERMISSION CONTROL ".
