Vehicle Does Not Start From D1

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

SYMPTOM:

Vehicle does not start from D1 on Cruise test -- Part 2 .

CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to vehicle speed sensor-A/T (revolution sensor), shift solenoid valve A, B or vehicle speed sensor-MTR after cruise test?

Yes or No
1. Yes: Check damaged circuit. Refer to "DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR) ", "DTC P0750 SHIFT SOLENOID VALVE A ", "DTC P0755 SHIFT SOLENOID VALVE B " or "DTC VEHICLE SPEED SENSOR MTR ".
2. No: GO TO 2.

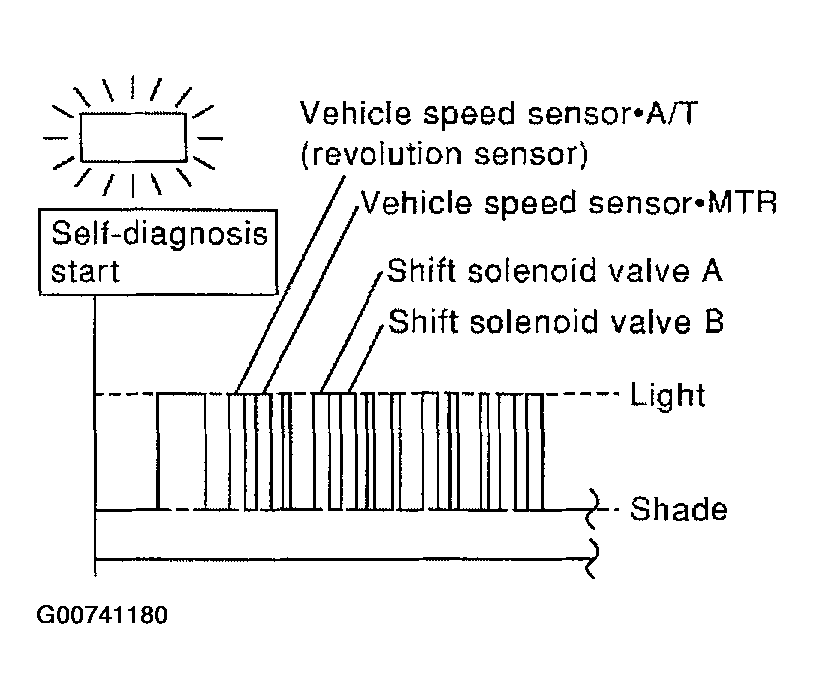

Fig 1: Checking Self Diagnostic Results
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK SYMPTOM
Check again.

OK or NG
1. OK: Go to "VEHICLE CANNOT BE STARTED FROM D1 ".
2. NG: GO TO 3.
CHECK TCM INSPECTION
1. perform TCM input/output signal inspection. Refer to "TCM TERMINALS AND REFERENCE VALUE ".
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
1. OK: INSPECTION END
2. NG: Repair or replace damaged parts.
