Symptom Chart

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Numbers are arranged in order of inspection.

Perform inspections starting with number one and work up.

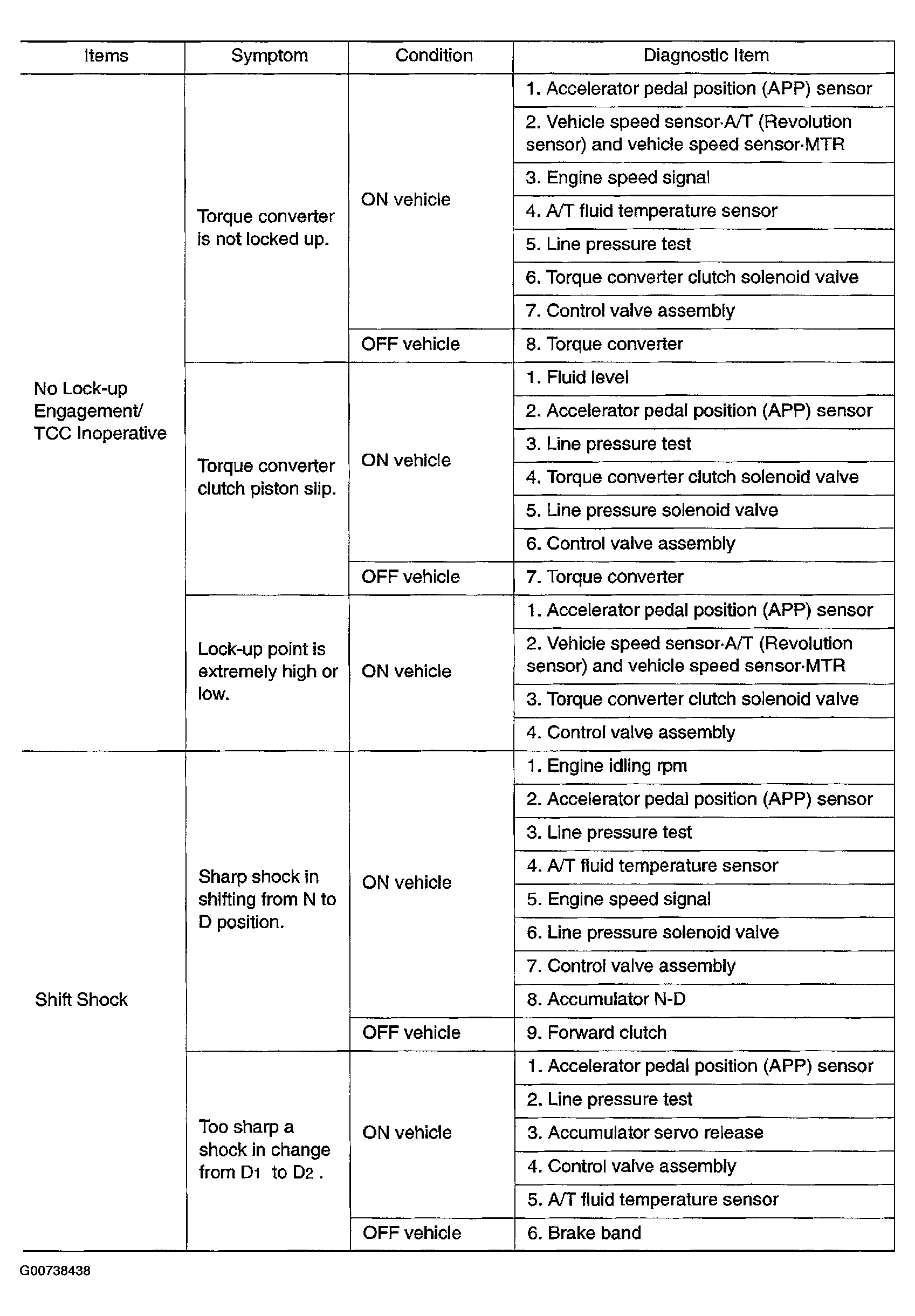

Fig 1: Symptom Chart (1 Of 10)

G00738438

Courtesy of NISSAN MOTOR CO., U.S.A.

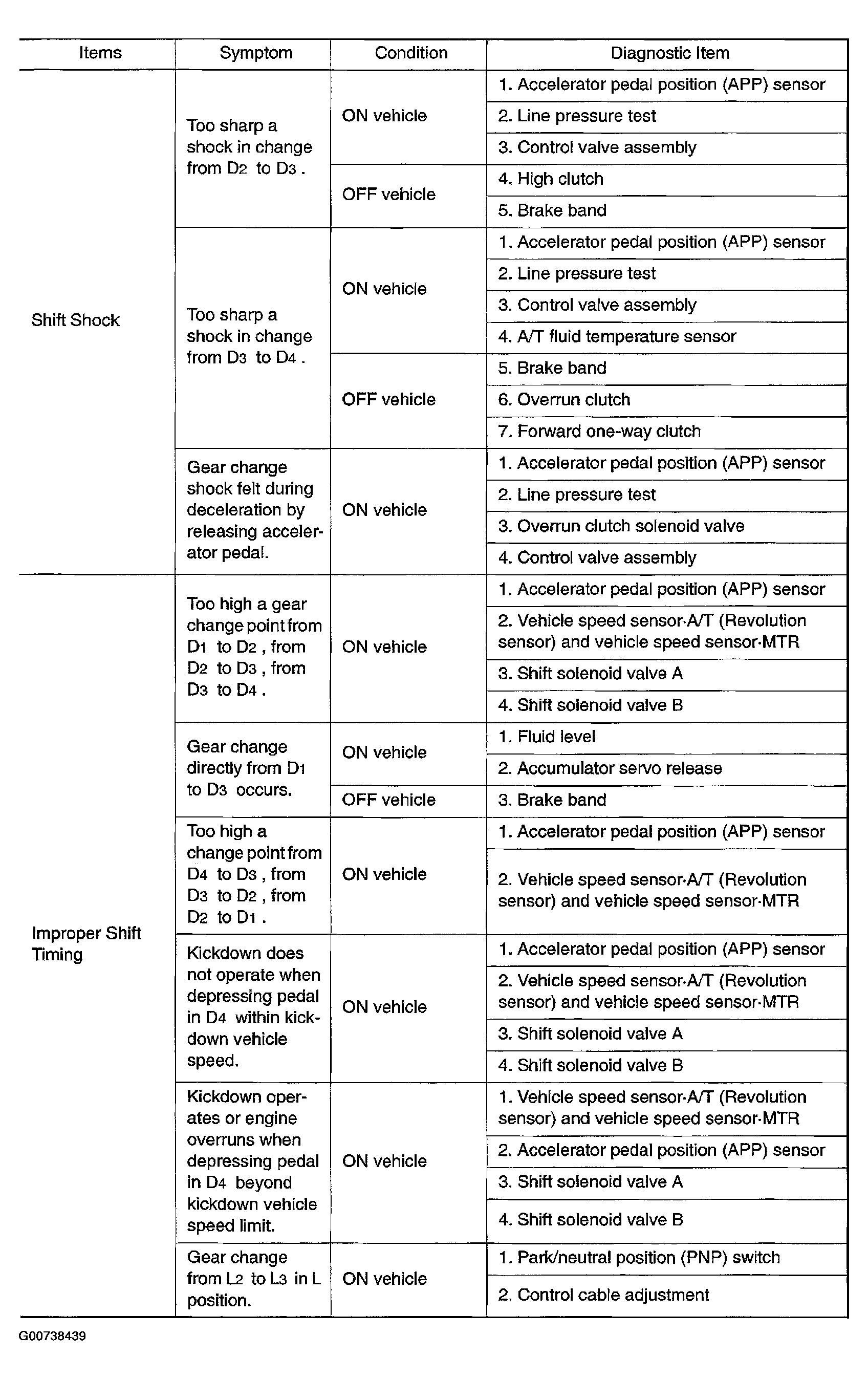

Fig 2: Symptom Chart (2 Of 10)

G00738439

Courtesy of NISSAN MOTOR CO., U.S.A.

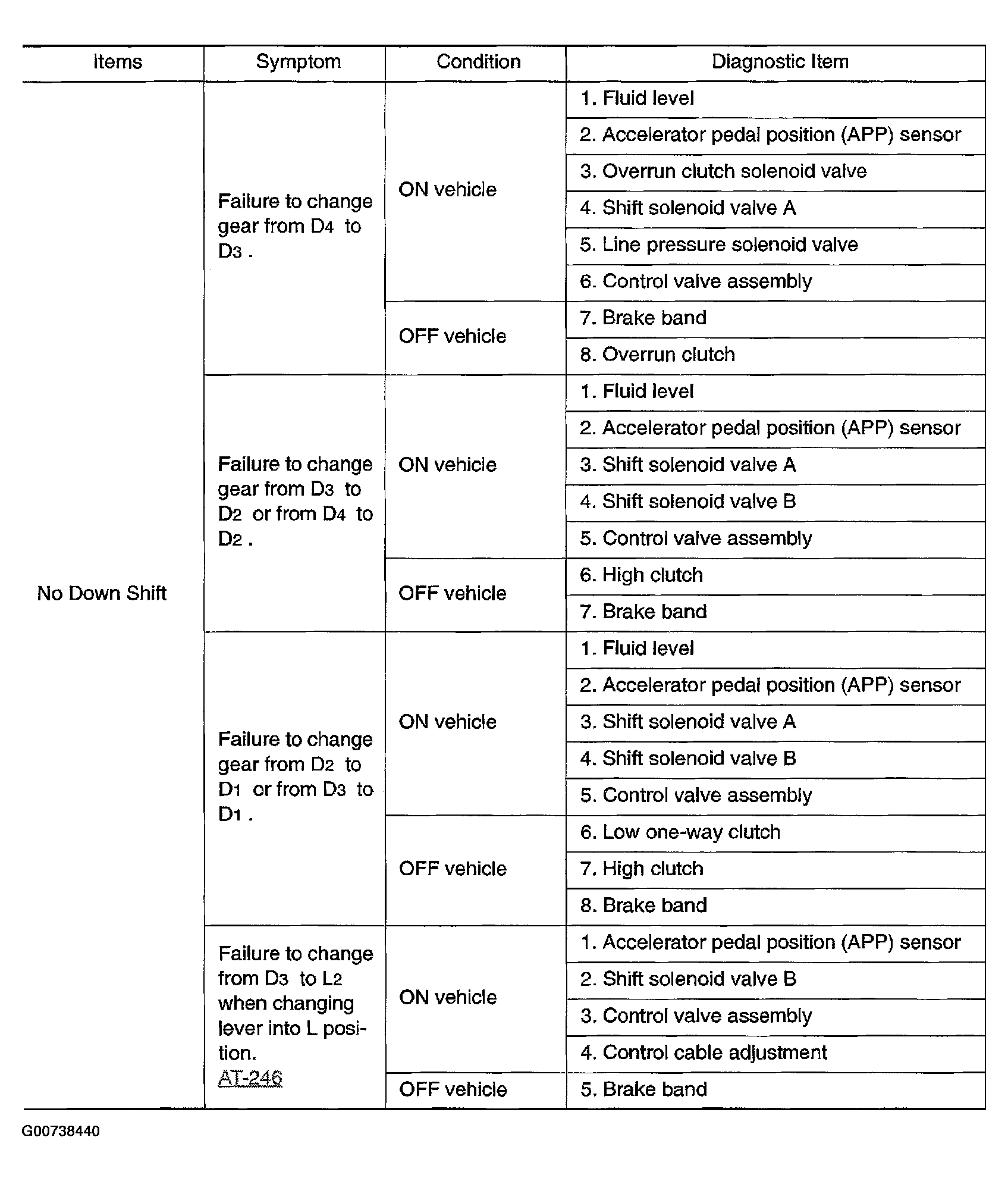

Fig 3: Symptom Chart (3 Of 10)

G00738440

Courtesy of NISSAN MOTOR CO., U.S.A.

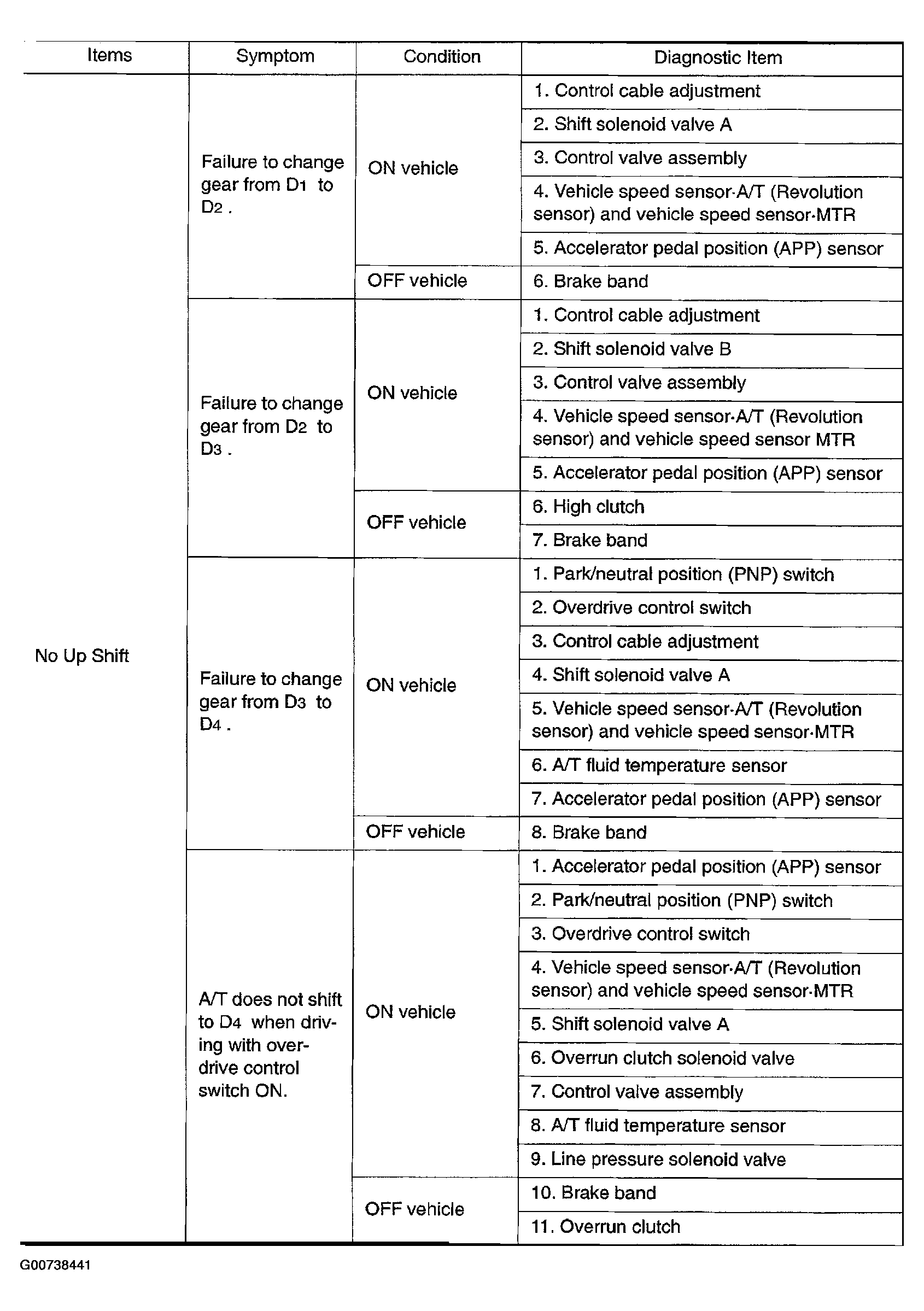

Fig 4: Symptom Chart (4 Of 10)

G00738441

Courtesy of NISSAN MOTOR CO., U.S.A.

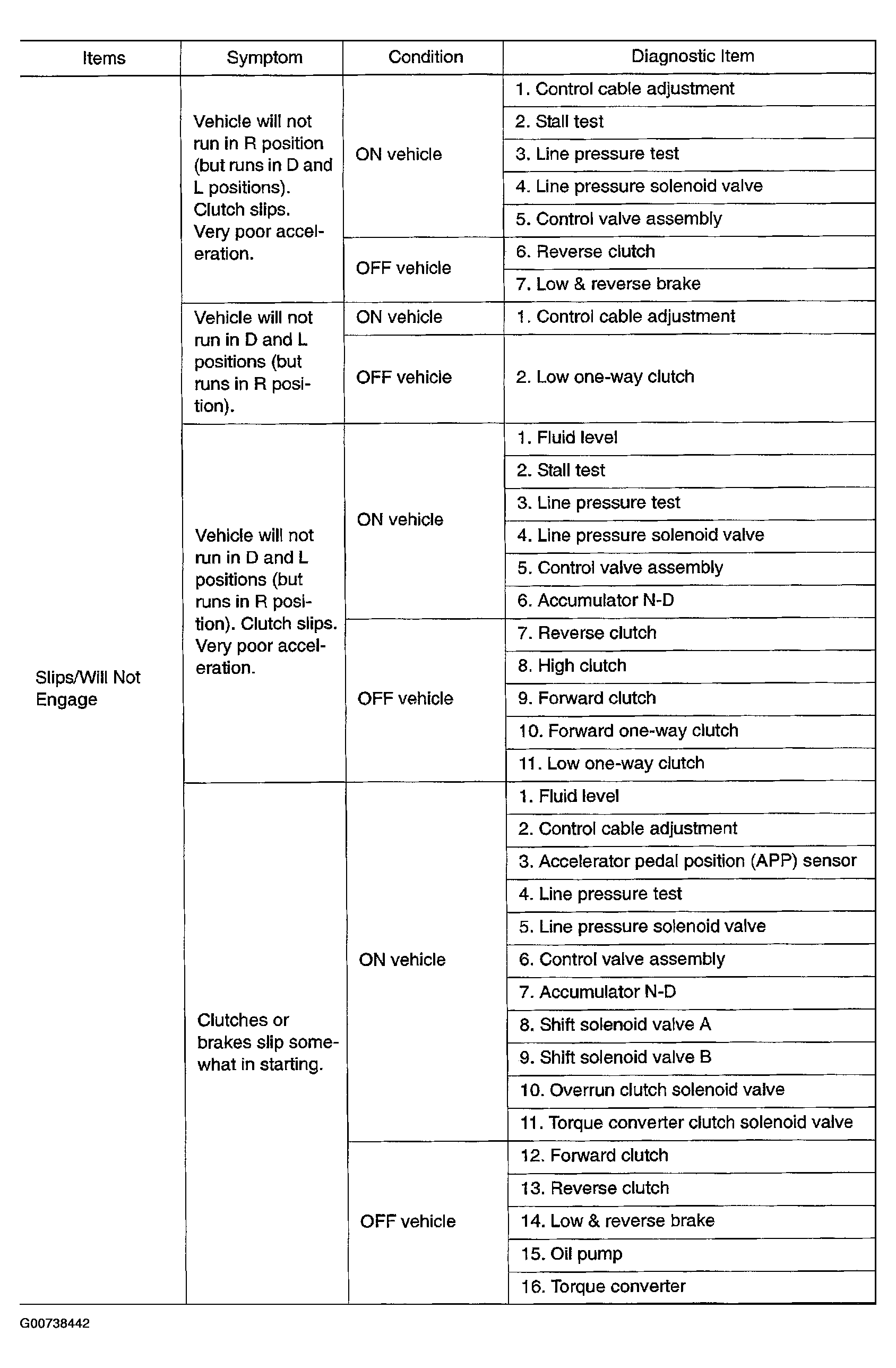

Fig 5: Symptom Chart (5 Of 10)

G00738442

Courtesy of NISSAN MOTOR CO., U.S.A.

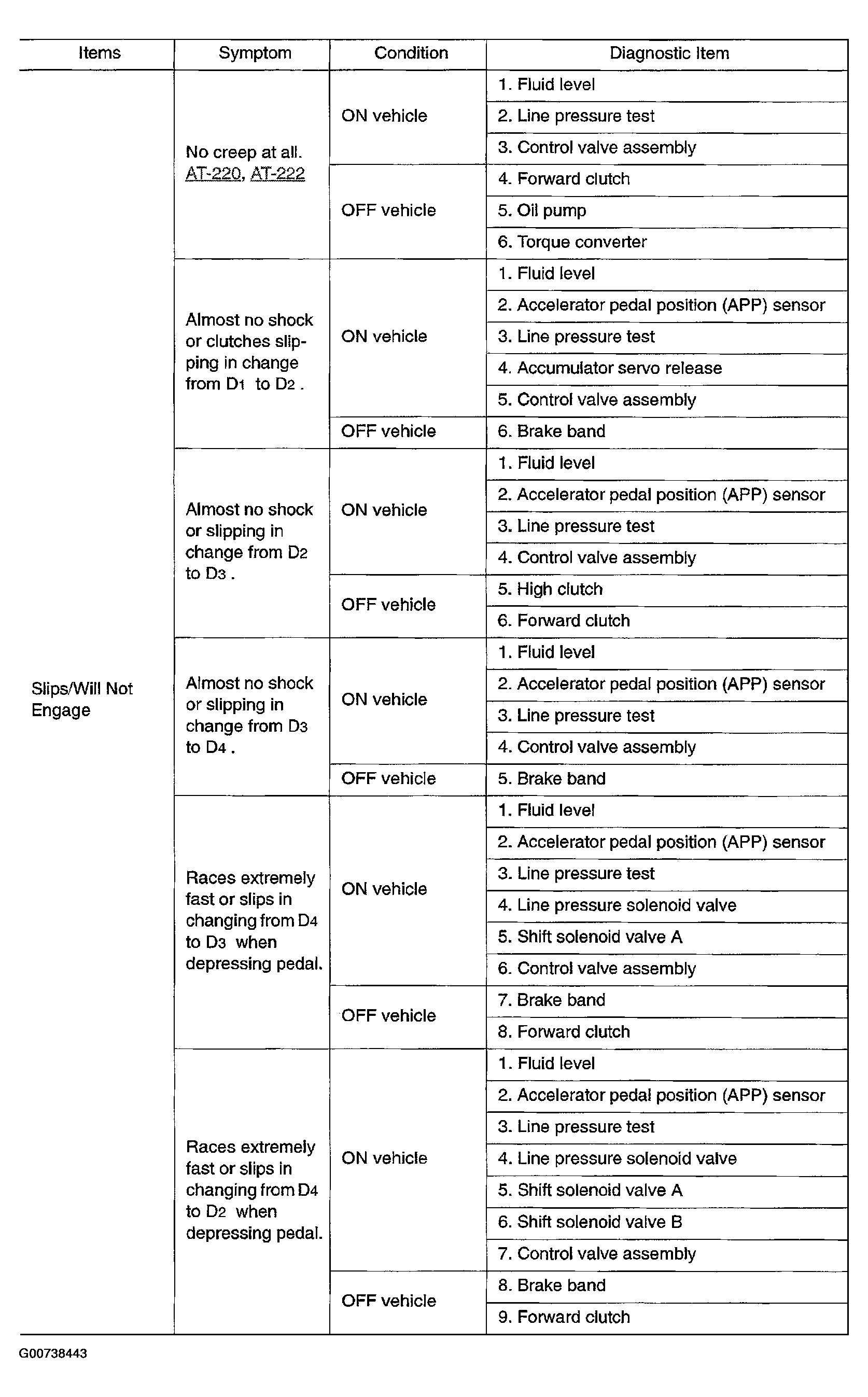

Fig 6: Symptom Chart (6 Of 10)

G00738443

Courtesy of NISSAN MOTOR CO., U.S.A.

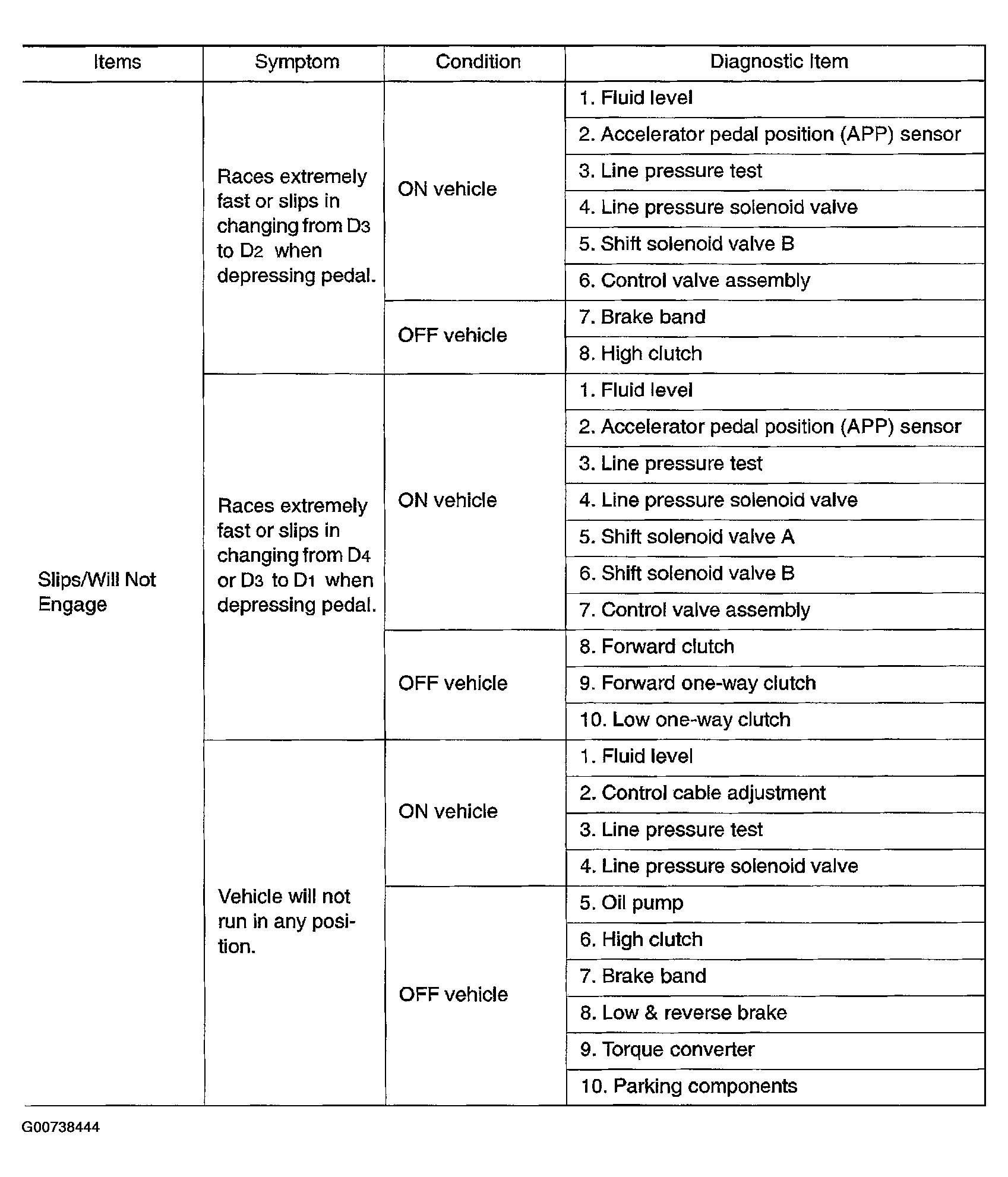

Fig 7: Symptom Chart (7 Of 10)

G00738444

Courtesy of NISSAN MOTOR CO., U.S.A.

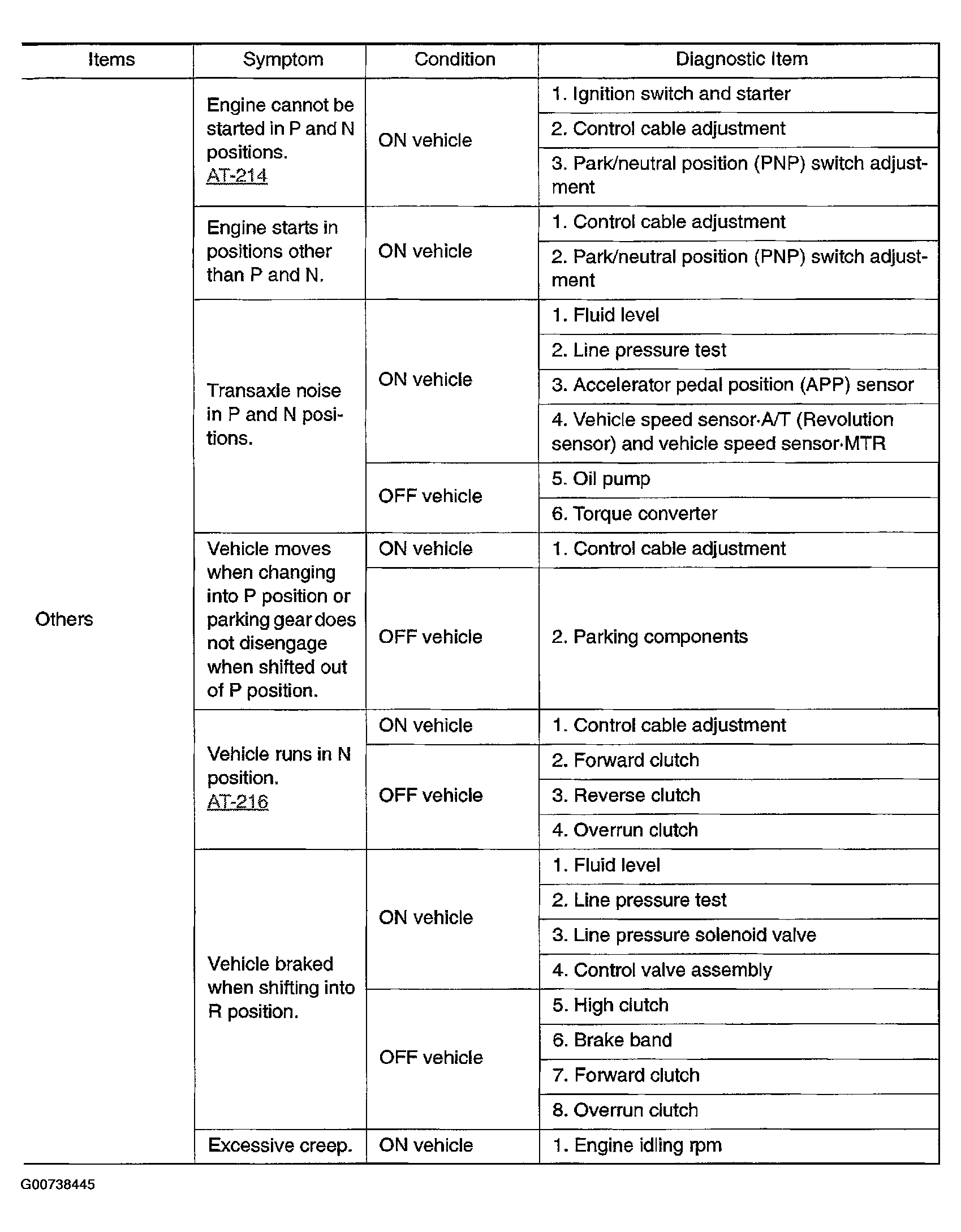

Fig 8: Symptom Chart (8 Of 10)

G00738445

Courtesy of NISSAN MOTOR CO., U.S.A.

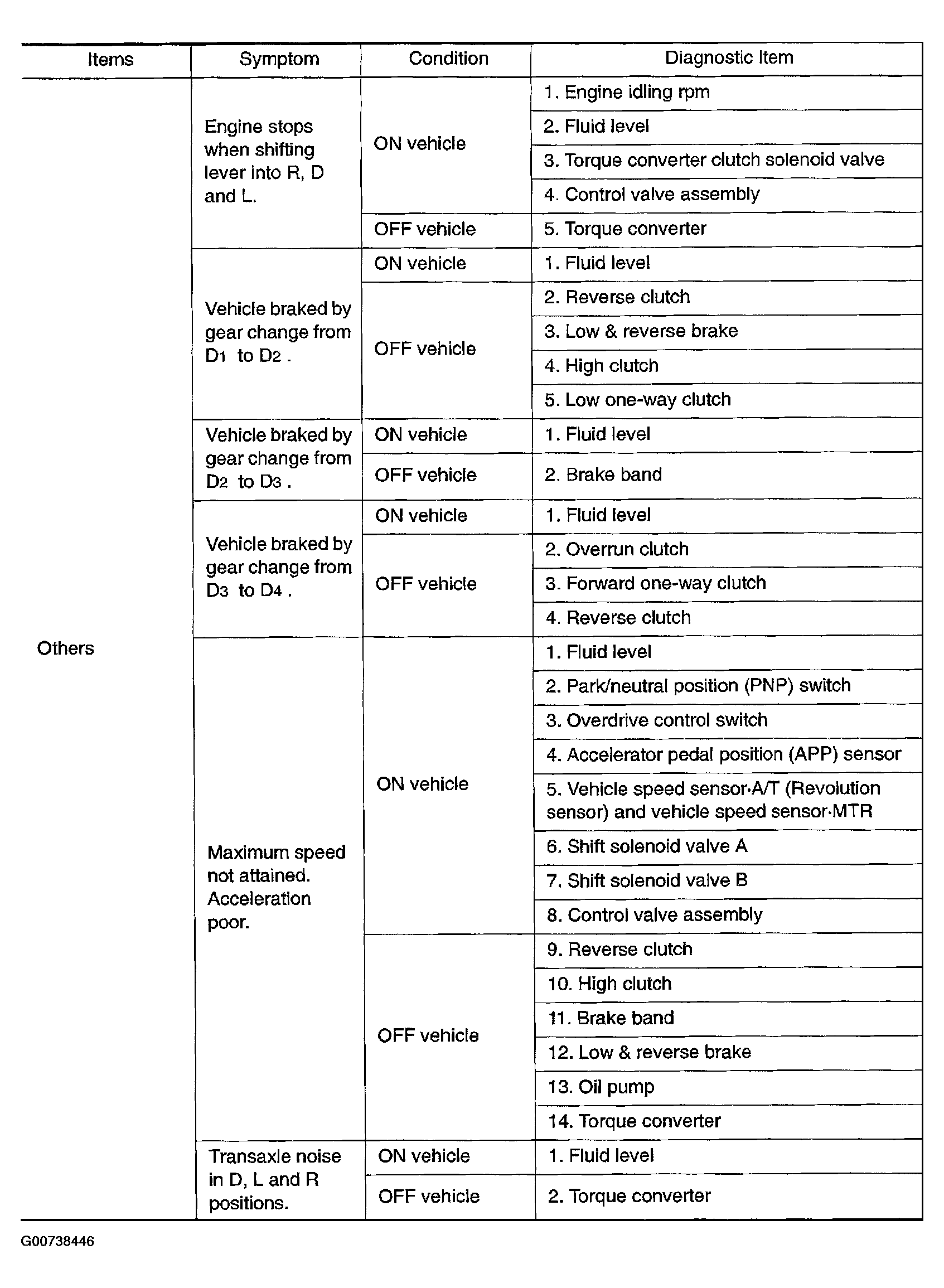

Fig 9: Symptom Chart (9 Of 10)

G00738446

Courtesy of NISSAN MOTOR CO., U.S.A.

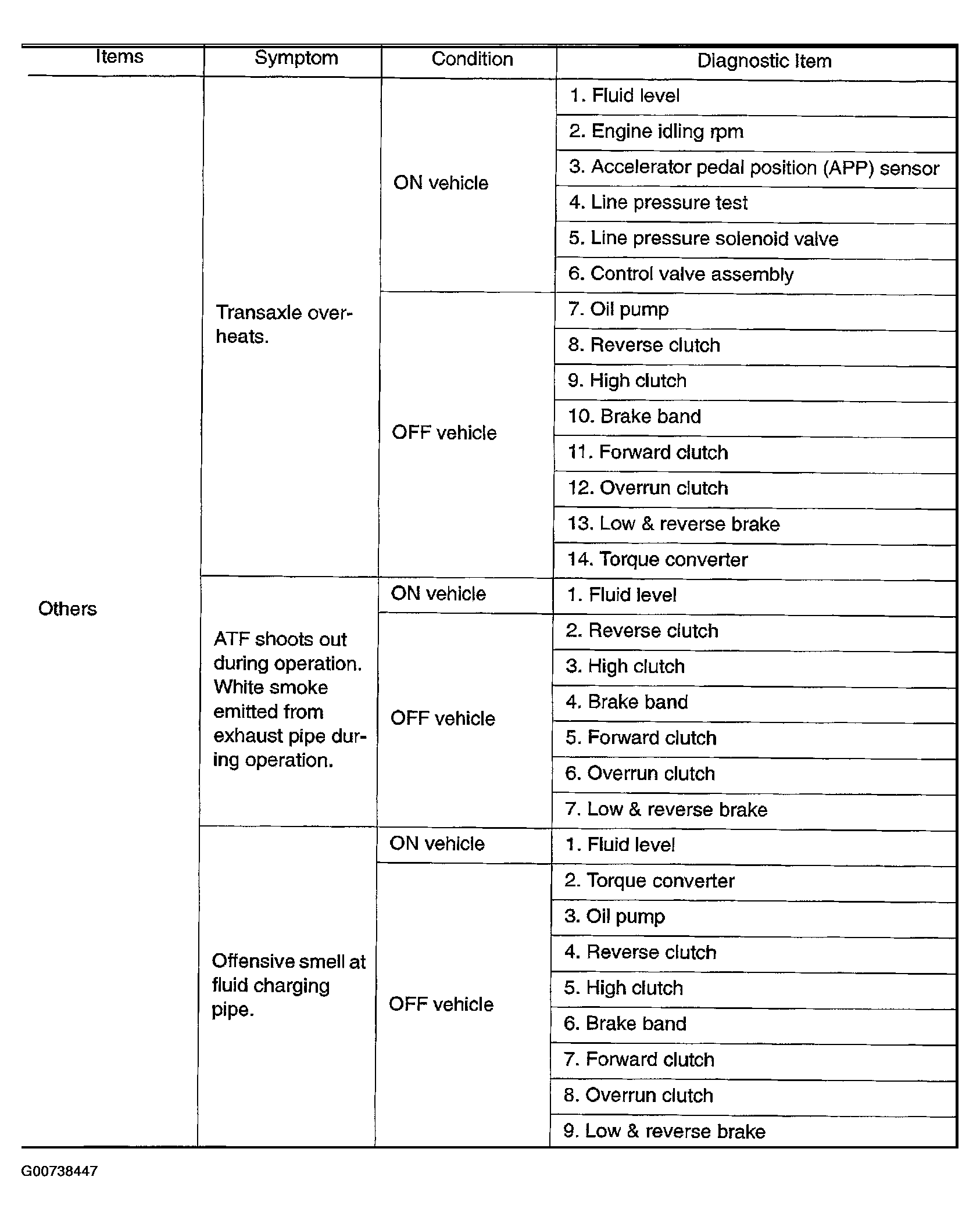

Fig 10: Symptom Chart (10 Of 10)

G00738447

Courtesy of NISSAN MOTOR CO., U.S.A.
