Stall Test Procedure

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Check A/T fluid and engine oil levels. If necessary, add fluid and oil.

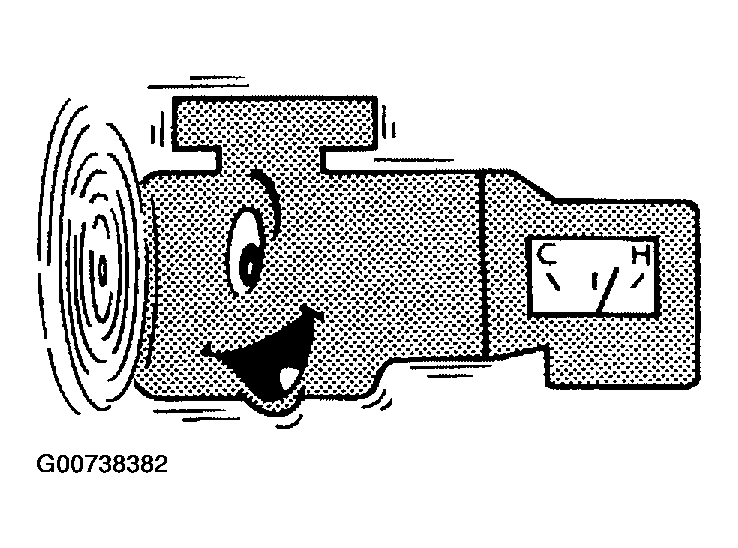

Fig 1: Identifying ATF Operating Temperature
Courtesy of NISSAN MOTOR CO., U.S.A.
Drive vehicle for approximately 10 minutes or until fluid and oil reach operating temperature.
ATF operating temperature: 50 - 80°C (122 - 176°F)
Set parking brake and block wheels.

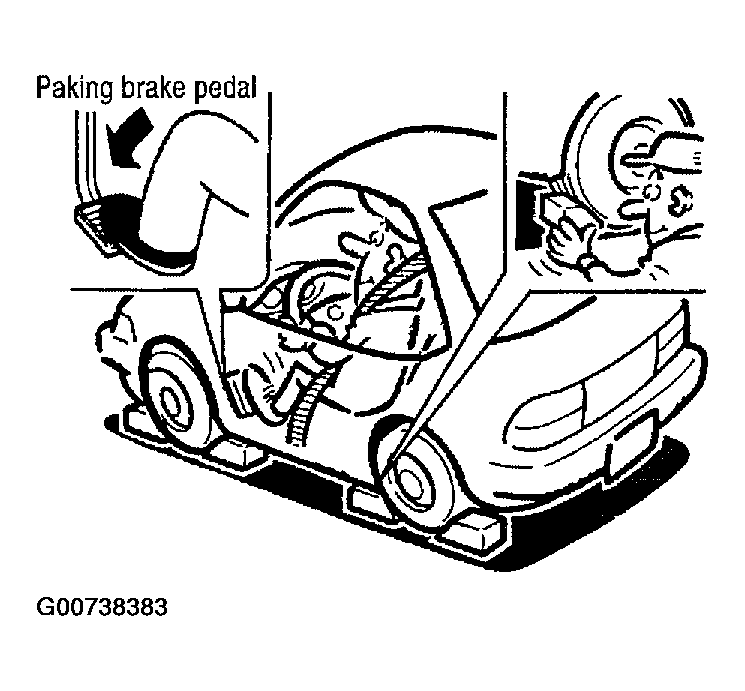

Fig 2: Setting Parking Brake
Courtesy of NISSAN MOTOR CO., U.S.A.
Install a tachometer where it can be seen by driver during test.
- It is good practice to mark the point of specified engine RPM on indicator .
Start engine, apply foot brake, and place selector lever in D position.

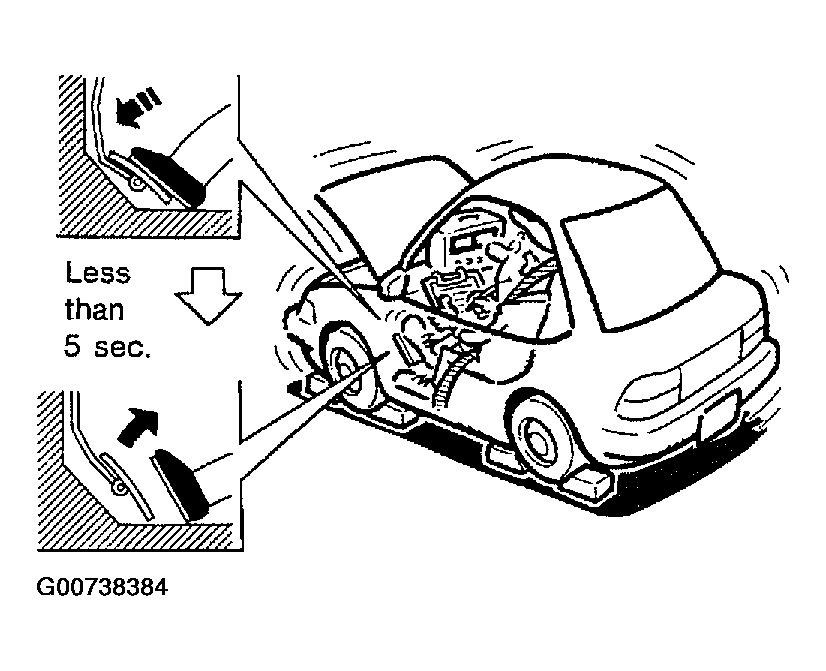

Fig 3: Applying Foot Brake
Courtesy of NISSAN MOTOR CO., U.S.A.
Accelerate to wide open throttle gradually while applying foot brake.
Quickly note the engine stall revolution and immediately release throttle.
- During test, never hold throttle wide open for less than 5 seconds .
  Stall revolution: 2, 500 - 3, 050 RPM
Move selector lever to N position.

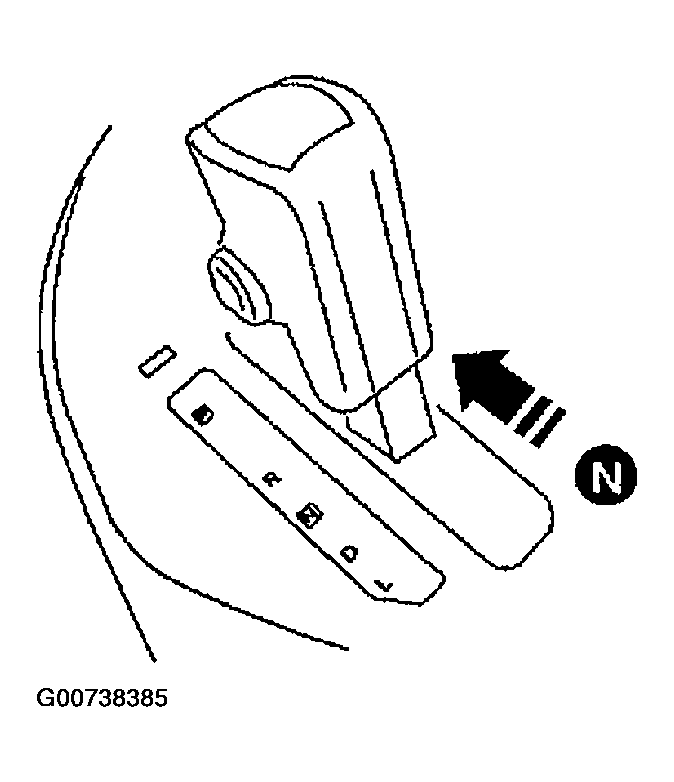

Fig 4: Identifying Selector Lever N Position
Courtesy of NISSAN MOTOR CO., U.S.A.
Cool off ATF.
- Run engine at idle for at least one minute .
Repeat steps 5 through 9 with selector lever in L and R positions.
