CONSULT-II Setting Procedure

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  1. Turn ignition switch OFF.
  2. Connect CONSULT-II and CONSULT-II CONVERTER to data link connector, which is located in left side dash panel.

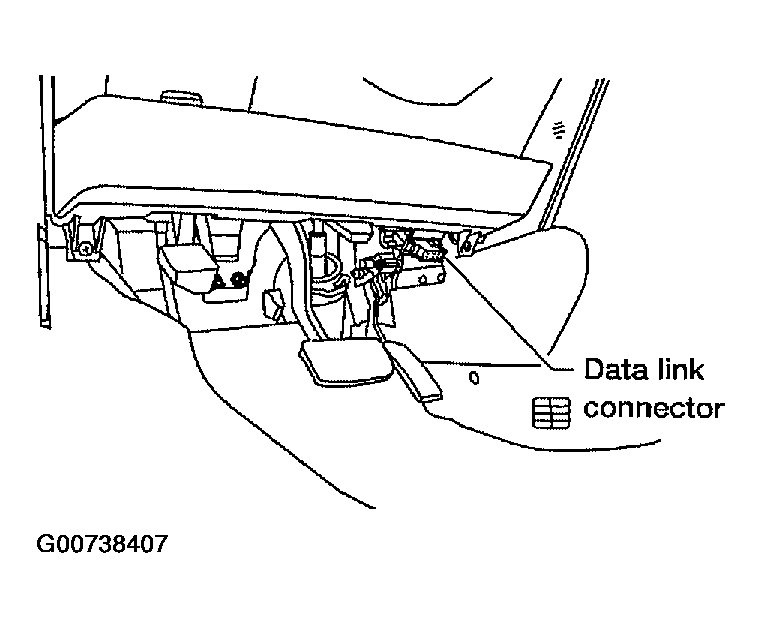

    Fig 1: Identifying Data Link Connector Location
    G00738407Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch ON.
  4. Touch "START (NISSAN BASED VHCL)".

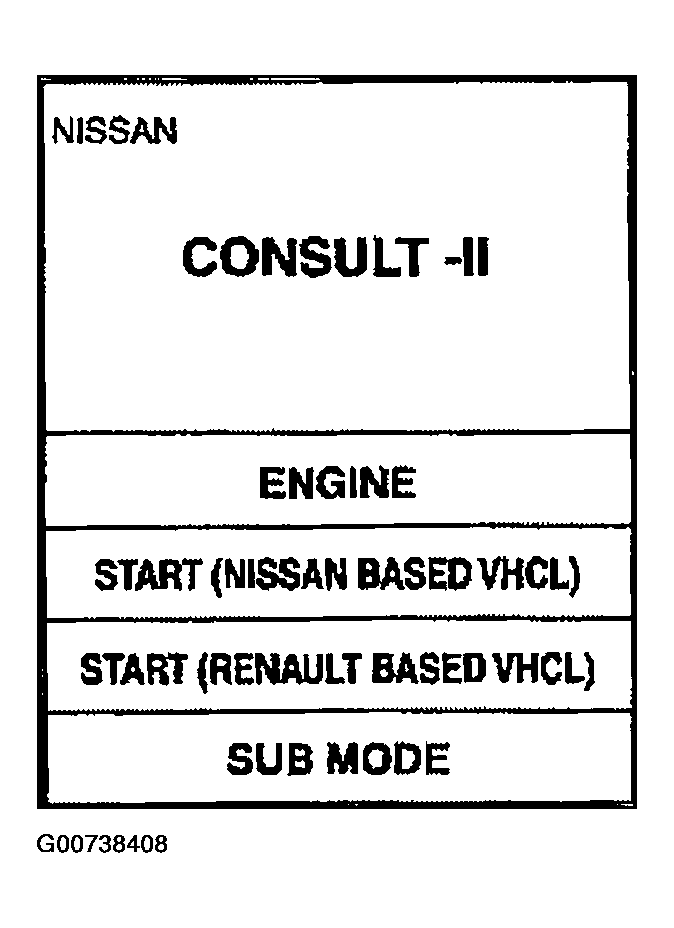

    Fig 2: CONSULT-II Display - Touch START (NISSAN BASED VHCL)
    G00738408Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "A/T".

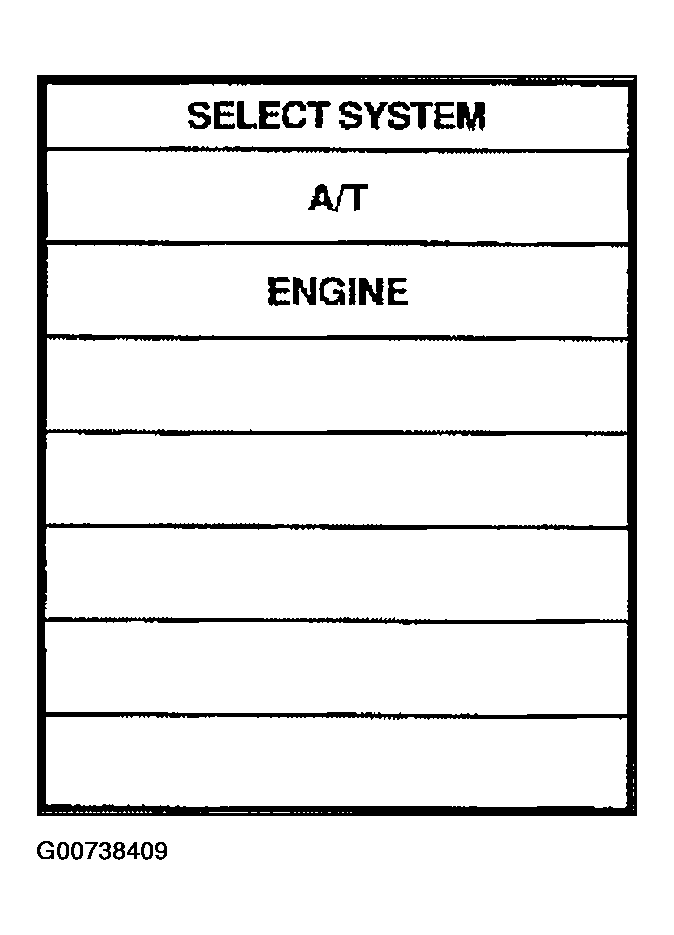

    Fig 3: CONSULT-II Display - SELECT SYSTEM
    G00738409Courtesy of NISSAN MOTOR CO., U.S.A.

    If "A/T" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

  6. Touch "DATA MONITOR".

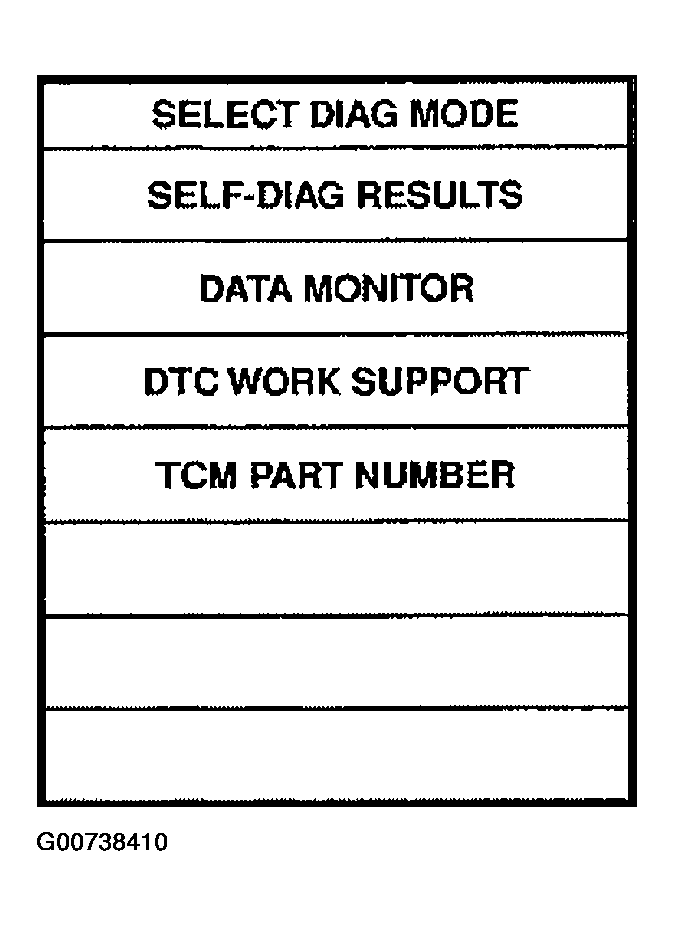

    Fig 4: CONSULT-II Display - SELECT DIAG MODE
    G00738410Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch "MAIN SIGNALS" or "TCM INPUT SIGNALS".

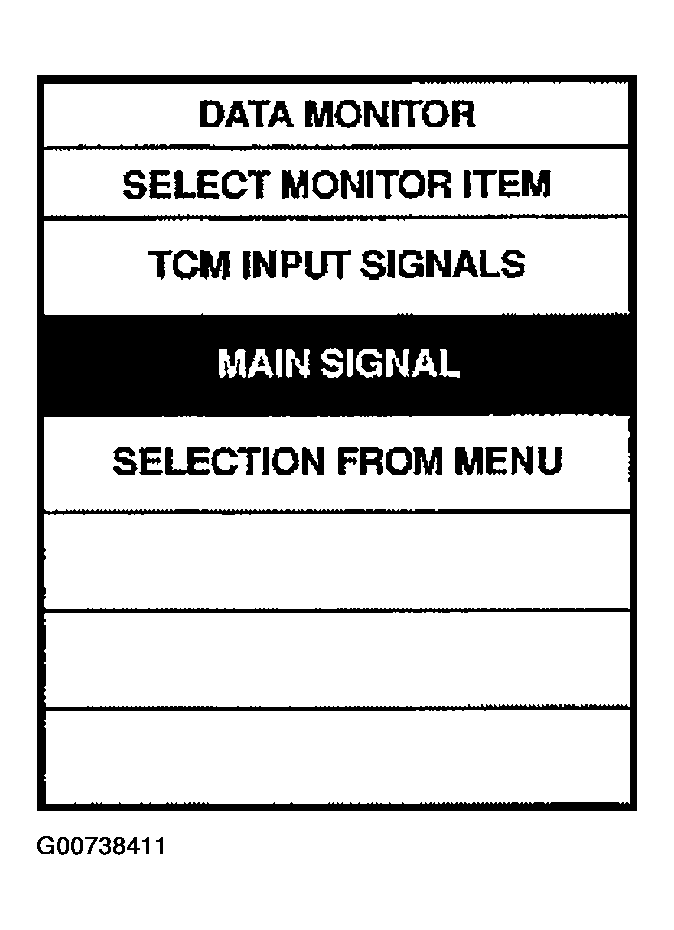

    Fig 5: CONSULT-II Display - DATA MONITOR
    G00738411Courtesy of NISSAN MOTOR CO., U.S.A.
  8. See " ""Bar chart Display" or "Line Graph Display".
  9. Touch "SETTING" to set recording condition ("AUTO TRIG" or "MANU TRIG") and touch "BACK".

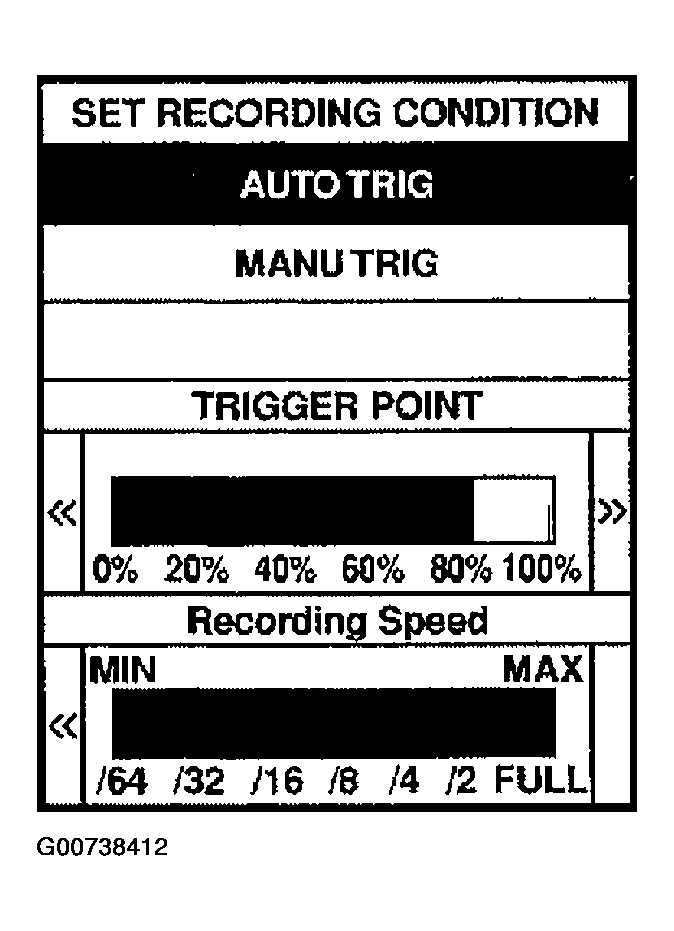

    Fig 6: CONSULT-II Display - SET RECORDING CONDITION
    G00738412Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Touch "Start".
  11. When performing cruise test, touch "RECORD".

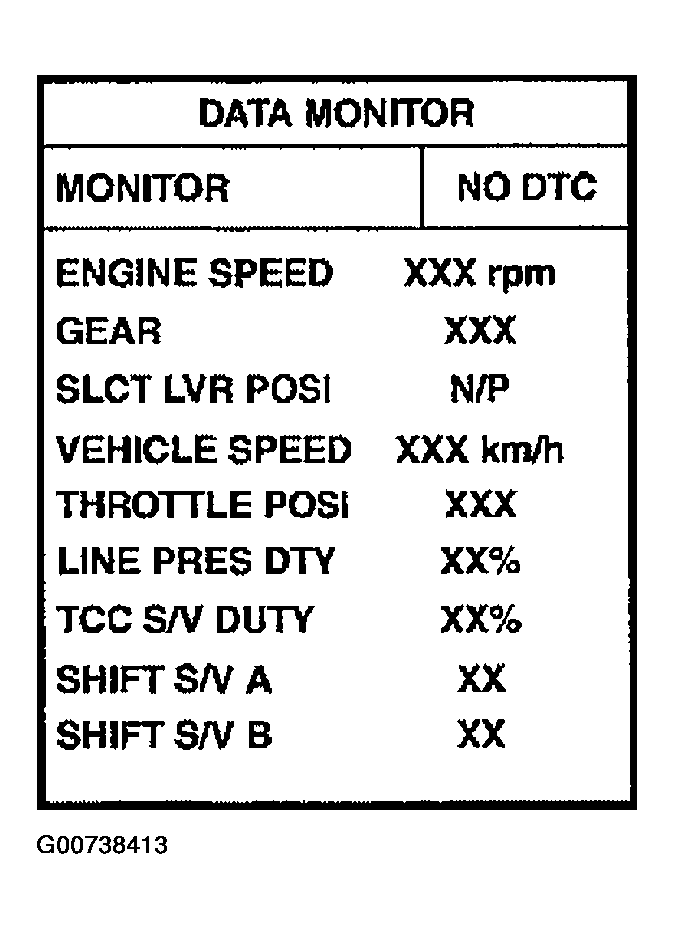

    Fig 7: CONSULT-II Display - DATA MONITOR
    G00738413Courtesy of NISSAN MOTOR CO., U.S.A.
  12. After finishing cruise test part 1, touch "STOP".

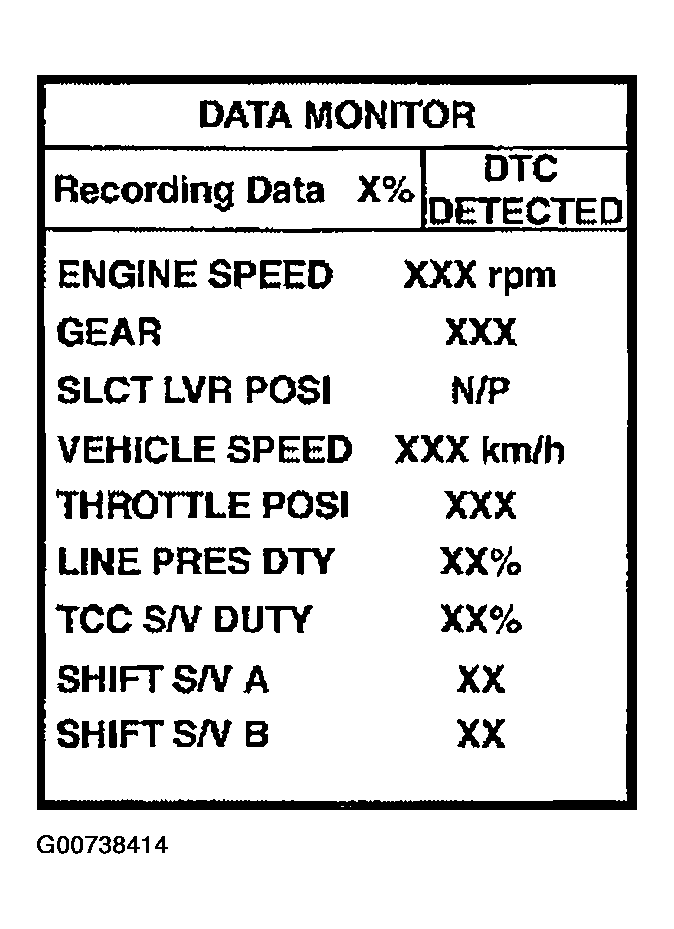

    Fig 8: CONSULT-II Display - DATA MONITOR
    G00738414Courtesy of NISSAN MOTOR CO., U.S.A.
  13. Touch "STORE" and touch "BACK".

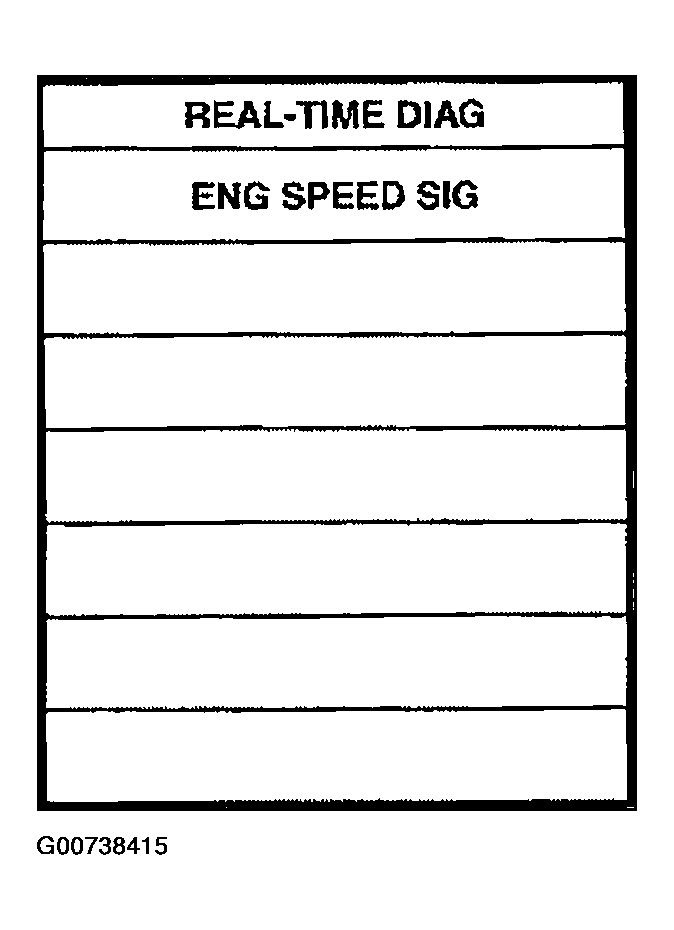

    Fig 9: CONSULT-II Display - REAL TIME DIAG
    G00738415Courtesy of NISSAN MOTOR CO., U.S.A.

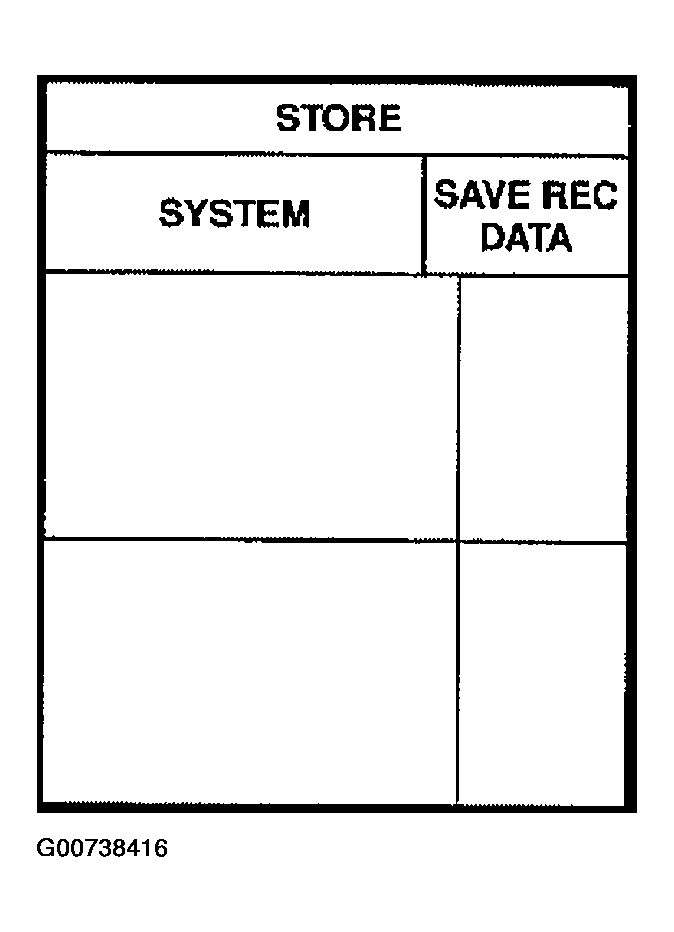

    Fig 10: CONSULT-II Display - STORE
    G00738416Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Touch "DISPLAY".
  15. Touch "PRINT".

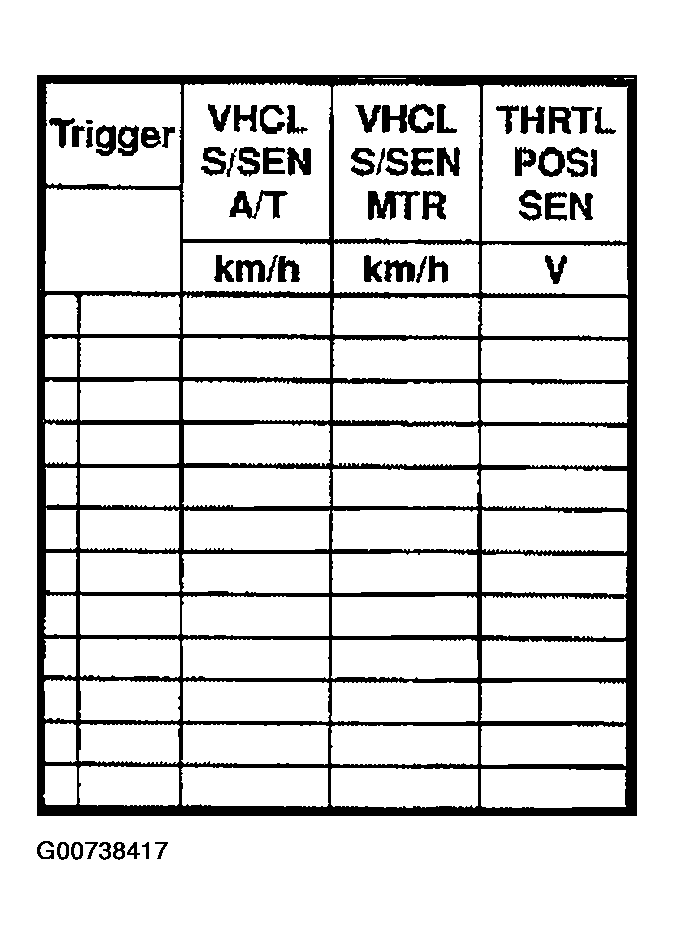

    Fig 11: CONSULT-II Display - MONITOR DATA PRINT
    G00738417Courtesy of NISSAN MOTOR CO., U.S.A.
  16. Check the monitor data printed out.
  17. Continue cruise test part 2 and 3.
