Line Pressure Test Ports

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

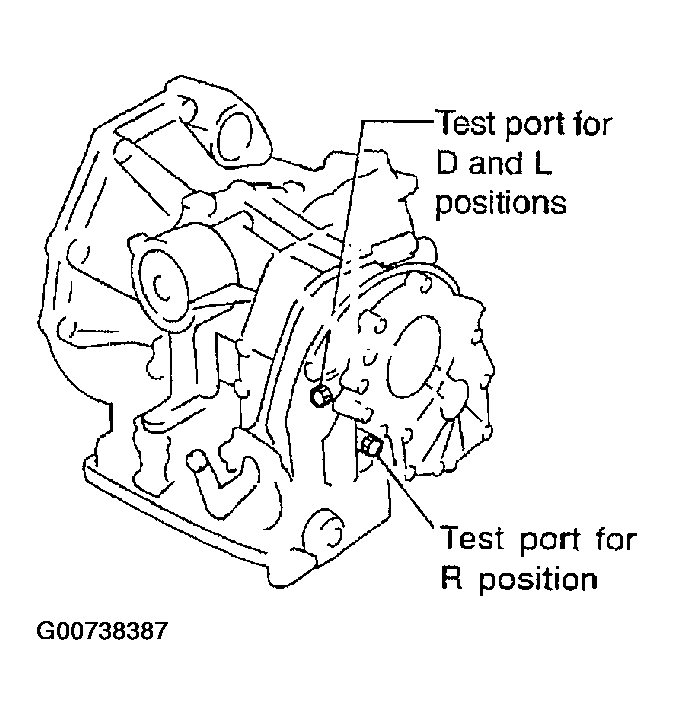

Location of line pressure test ports are shown in the illustration.
