Fluid Leakage Check

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean area suspected of leaking. -- for example, mating surface of converter housing and transmission case.

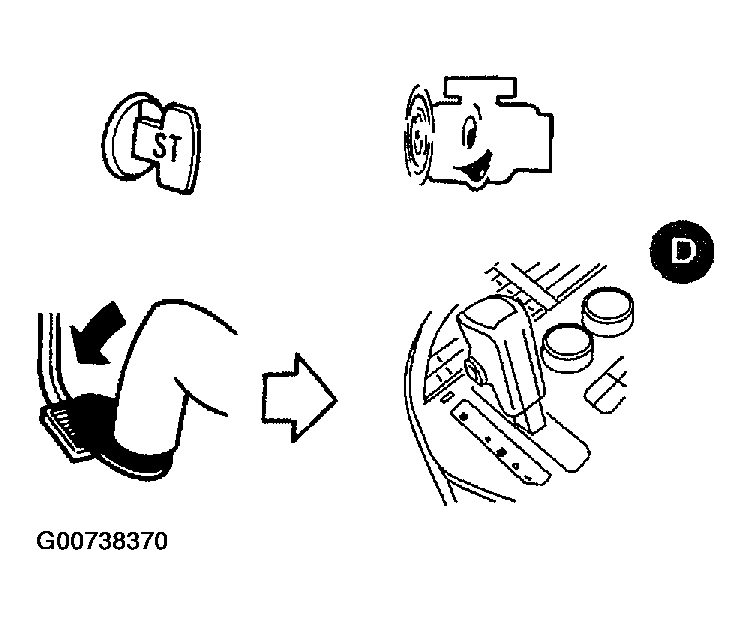

    Fig 1: Applying Foot Brake And Placing Selector Lever To D Position
    G00738370Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Start engine, apply foot brake, place selector lever in D position and wait a few minutes.
  3. Stop engine.
  4. Check for fresh leakage.

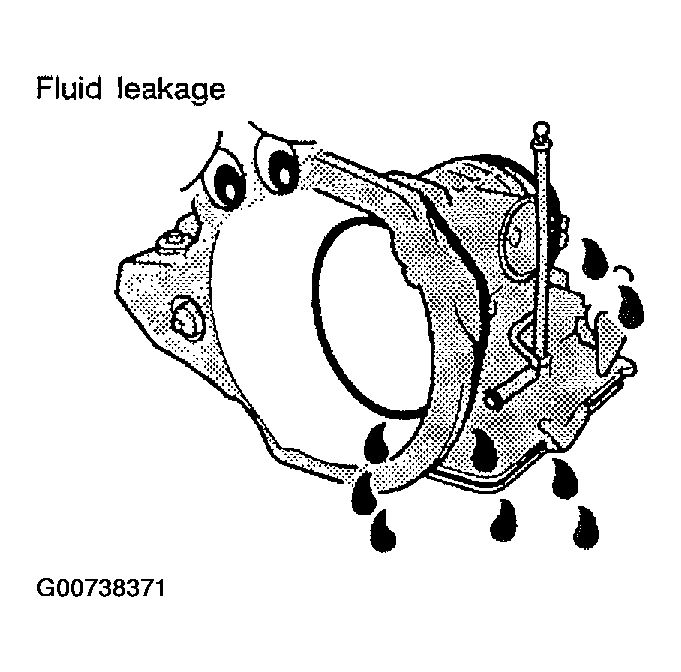

    Fig 2: Checking A/T Fluid Leakage
    G00738371Courtesy of NISSAN MOTOR CO., U.S.A.
