Vehicle Speed When Performing And Releasing Lock-Up

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

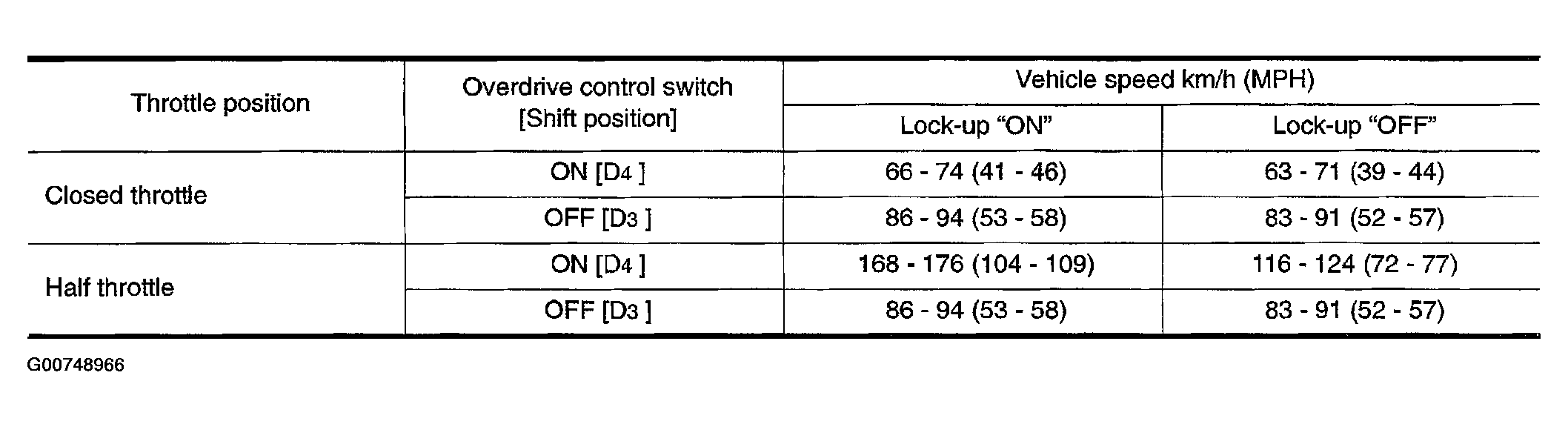

Fig 1: Vehicle Speed When Performing And Releasing Lock-Up Chart
G00748966Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
  • Closed throttle: Throttle opening is 1/8 or below, and closed throttle position signal is trend OFF.
  • Half throttle: Throttle opening is 4/8.
  • Perform lock-up inspection after warning up engine.
  • Lock-up vehicle speed may vary depending on the driving conditions and circumstances.
