Reduction Pinion Gear Bearing Adjusting Shims

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

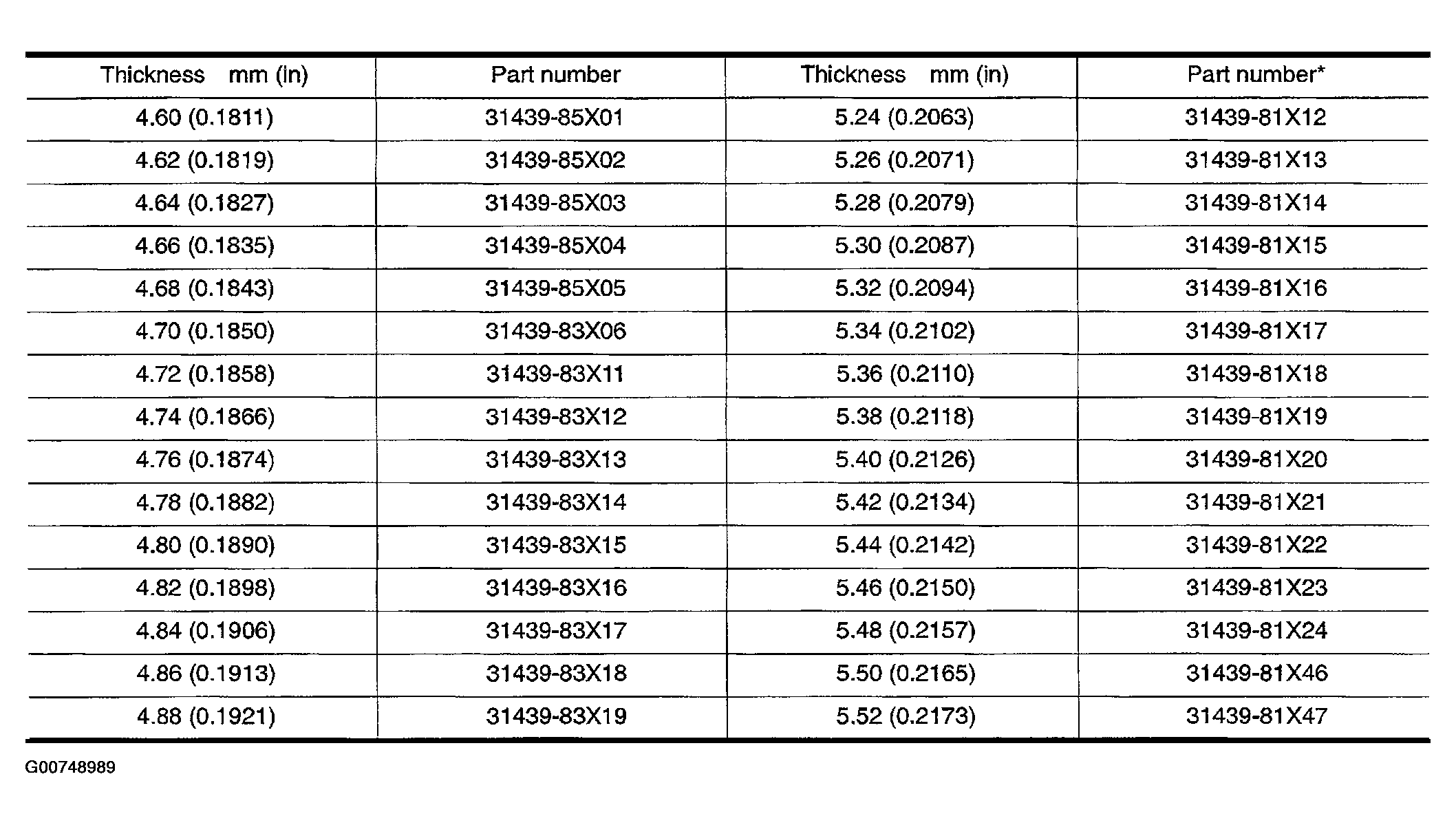

Fig 1: Reduction Pinion Gear Bearing Adjusting Shims Chart (1 Of 2)
G00748989Courtesy of NISSAN MOTOR CO., U.S.A.

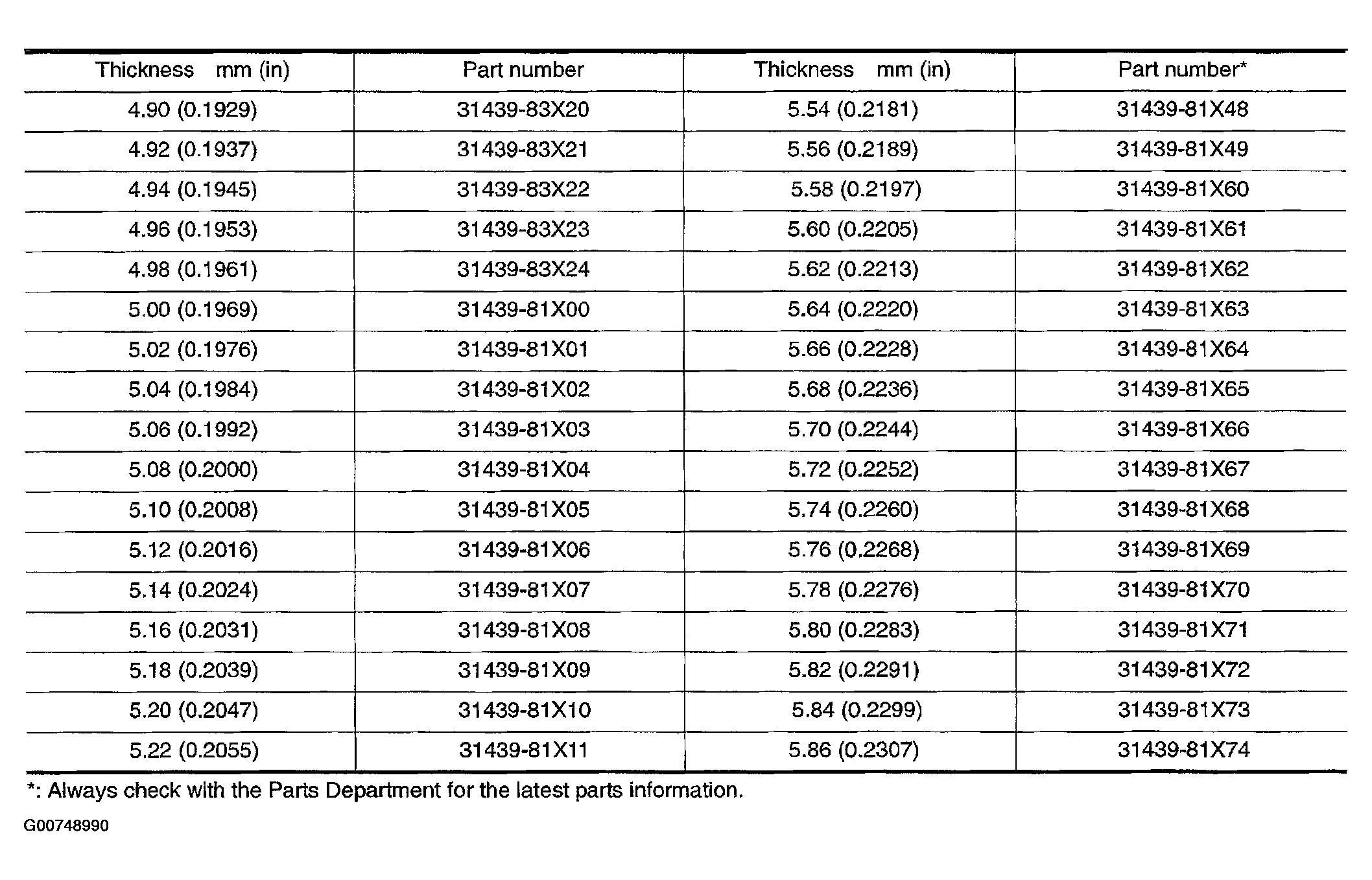

Fig 2: Reduction Pinion Gear Bearing Adjusting Shims Chart (2 Of 2)
G00748990Courtesy of NISSAN MOTOR CO., U.S.A.
