Reverse Clutch Dish Plates
Reverse Clutch Dish Plates
WARNING:
This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
Check for deformation or damage.
Measure thickness of dish plate.

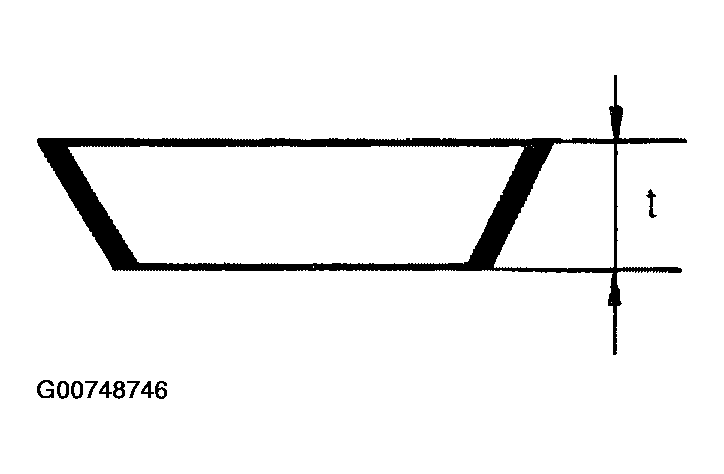

Fig 1: Identifying Reverse Clutch Dish Plate Thickness
Courtesy of NISSAN MOTOR CO., U.S.A.
Thickness of dish plate: 3.18 mm (0.1252 in)
If deformed or fatigued, replace.
