Reverse Clutch: Disassembly

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Check operation of reverse clutch

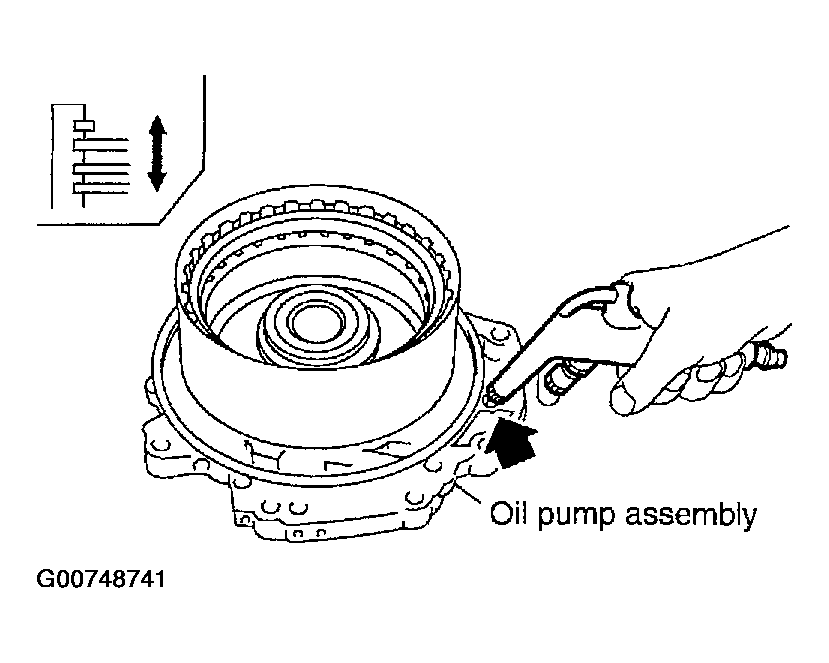

Fig 1: Checking Reverse Clutch Operation
Courtesy of NISSAN MOTOR CO., U.S.A.
1. Install seal ring onto drum support of oil pump cover and install reverse clutch assembly. Apply compressed air to oil hole.
2. Check to see that retaining plate moves to snap ring.
3. If retaining plate does not contact snap ring:
  - D-ring might be damaged.
  - Oil seal might be damaged.
  - Fluid might be leaking past piston check ball.

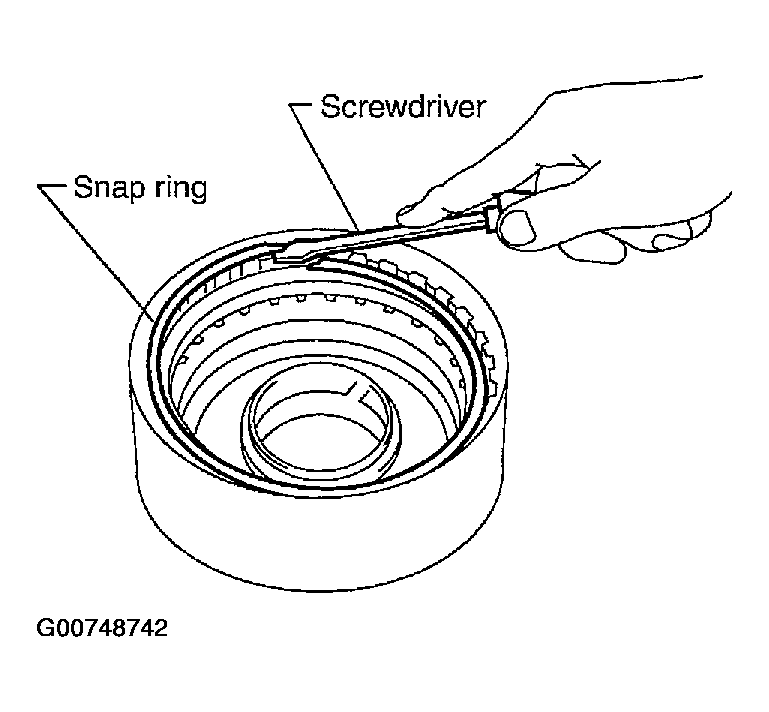

    Fig 2: Removing Snap Ring
    Courtesy of NISSAN MOTOR CO., U.S.A.
Remove snap ring.
CAUTION: Do not expand snap ring excessively.
Remove drive plates, driven plates, retaining plate, and dish plates.
Set Tool on spring retainer and remove snap ring from reverse clutch drum while compressing return springs.

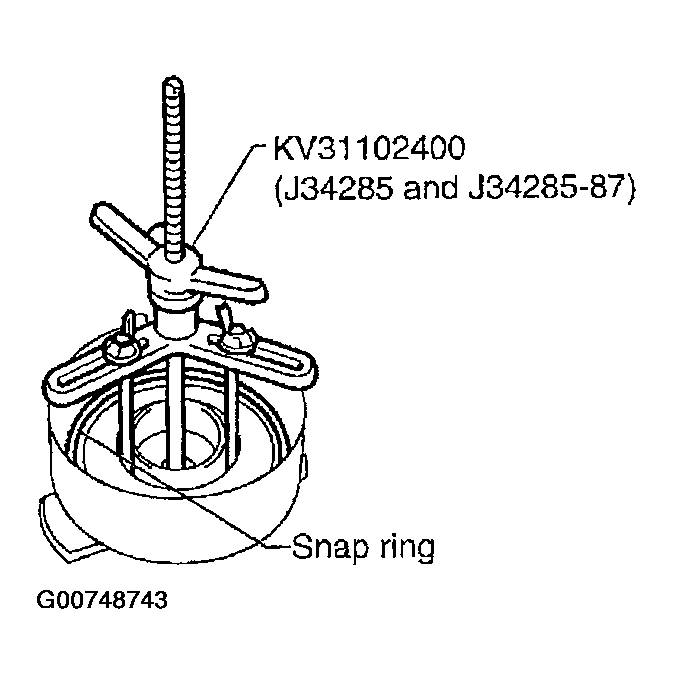

Fig 3: Removing Snap Ring From Reverse Clutch Drum
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
- Set Tool directly over springs.
- Do not expand snap ring excessively.
Remove spring retainer and return springs.
Remove piston from reverse clutch drum by turning it.
Remove D-ring and oil seal from piston.

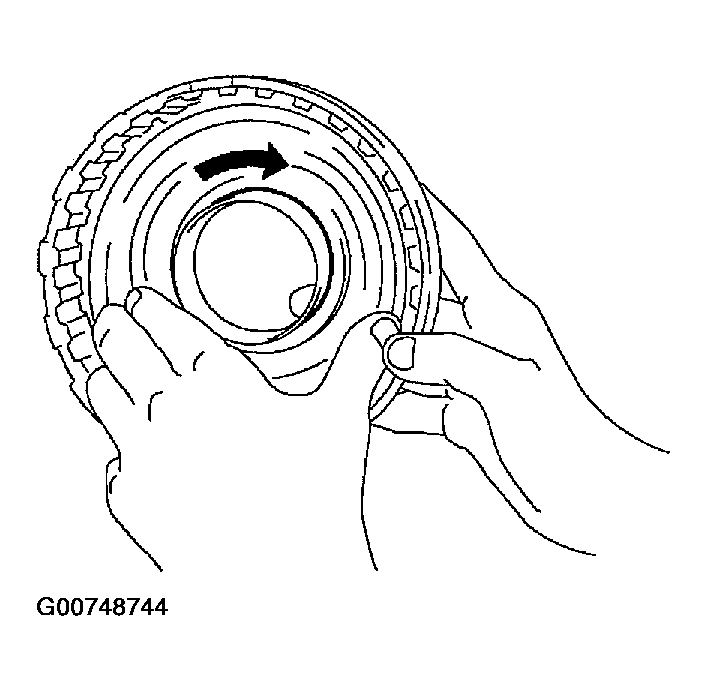

Fig 4: Removing Piston From Reverse Clutch Drum
Courtesy of NISSAN MOTOR CO., U.S.A.
