Rear Internal Gear, Forward Clutch Hub and Overrun Clutch Hub: Disassembly

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Remove overrun clutch hub and thrust washer from forward clutch hub.

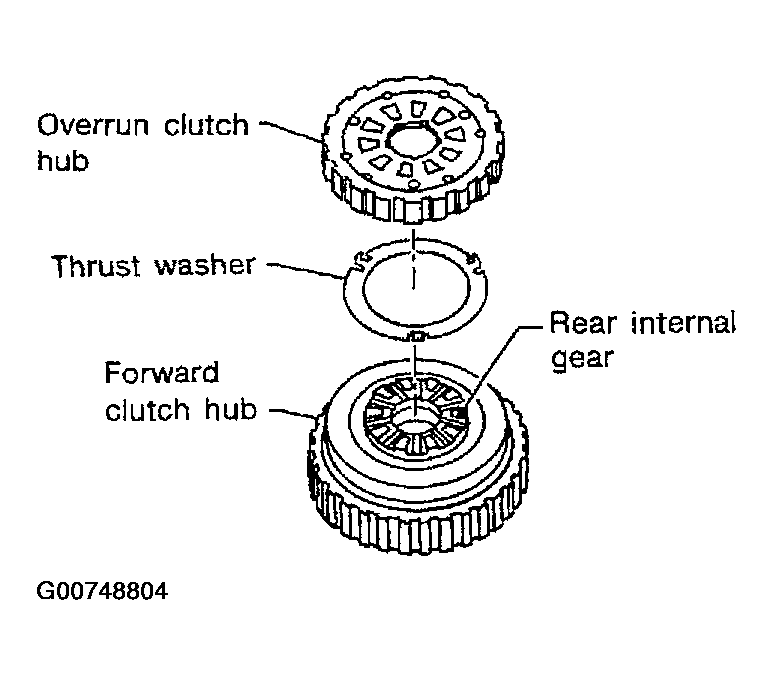

Fig 1: Removing Overrun Clutch Hub And Thrust Washer From Forward Clutch Hub
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove forward clutch hub from rear internal gear.

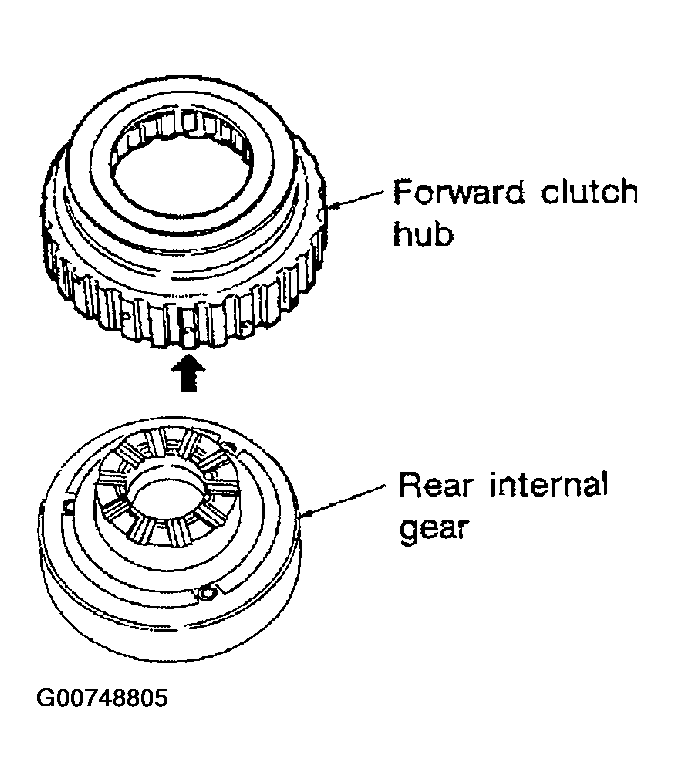

Fig 2: Removing Forward Clutch Hub From Rear Internal Gear
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove bearing from rear internal gear.

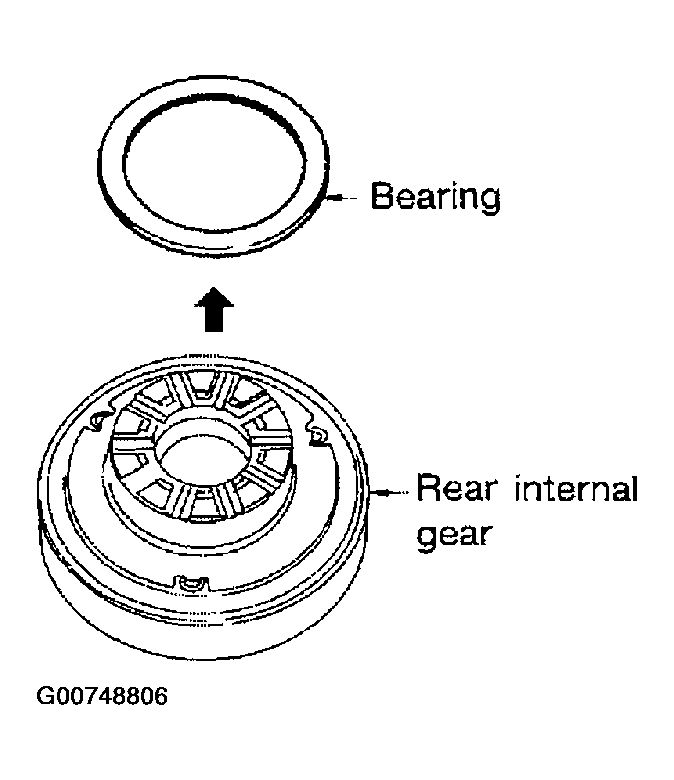

Fig 3: Removing Rear Internal Gear Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove thrust washer from rear internal gear.

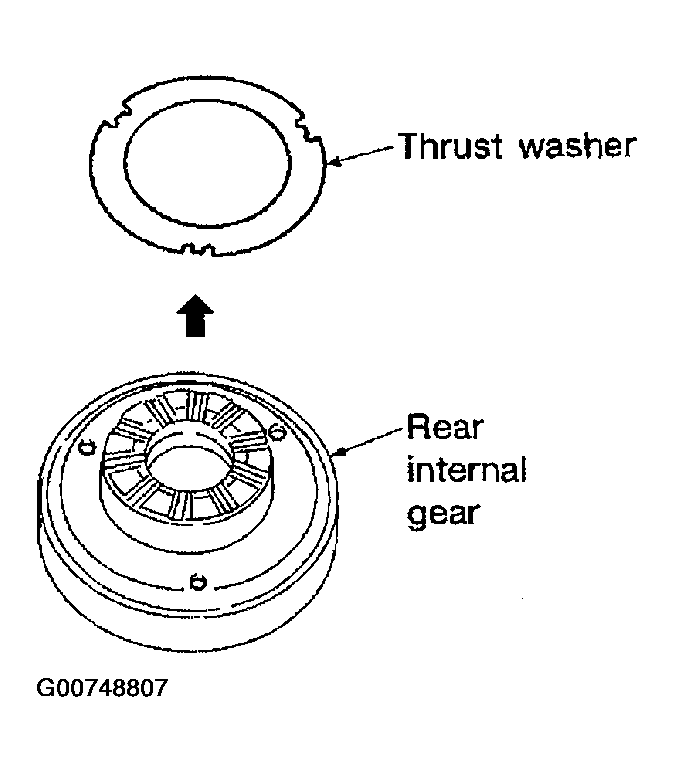

Fig 4: Removing Rear Internal Gear Thrust Washer
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove bearing from forward one-way clutch.

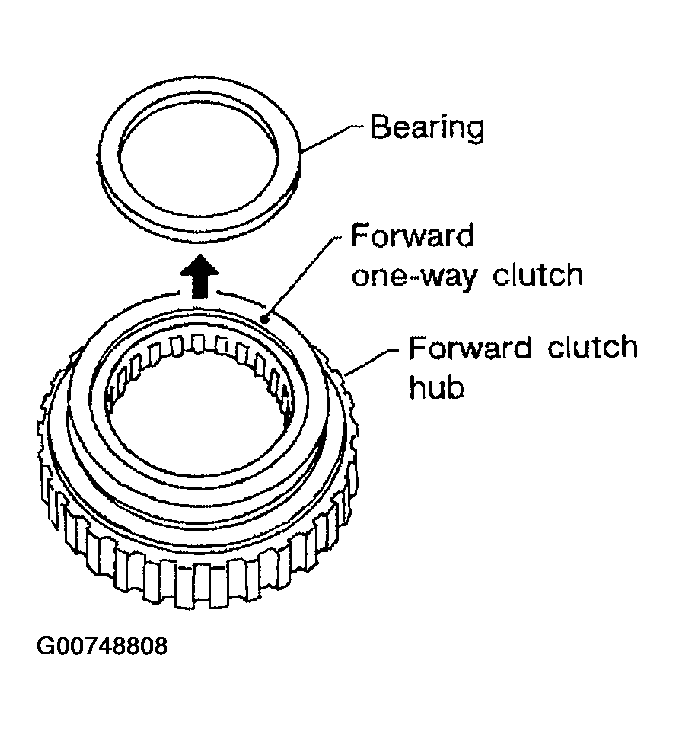

Fig 5: Removing Forward One-Way Clutch Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove forward one-way clutch from forward clutch hub.

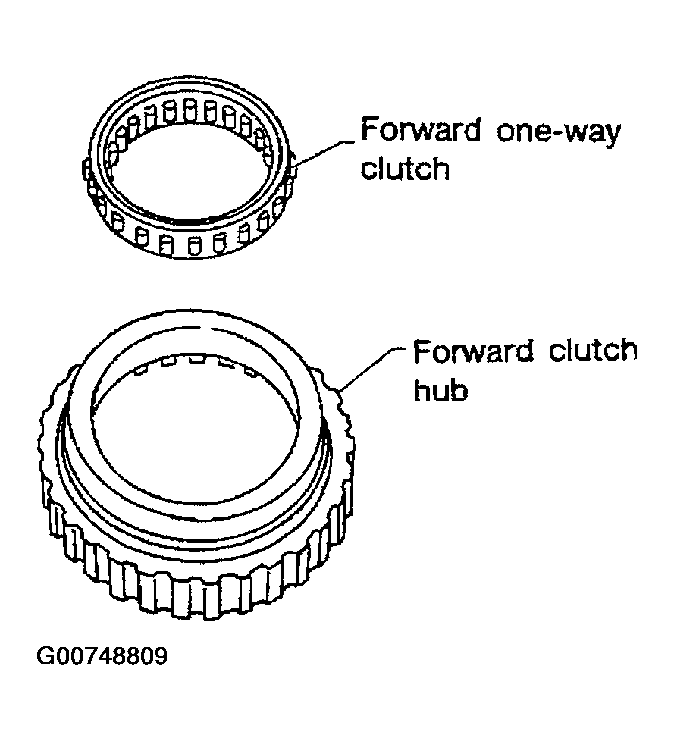

Fig 6: Removing Forward One-Way Clutch From Forward Clutch Hub
Courtesy of NISSAN MOTOR CO., U.S.A.
