Output Shaft, Idler Gear, Reduction Pinion Gear and Bearing Retainer: Assembly

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

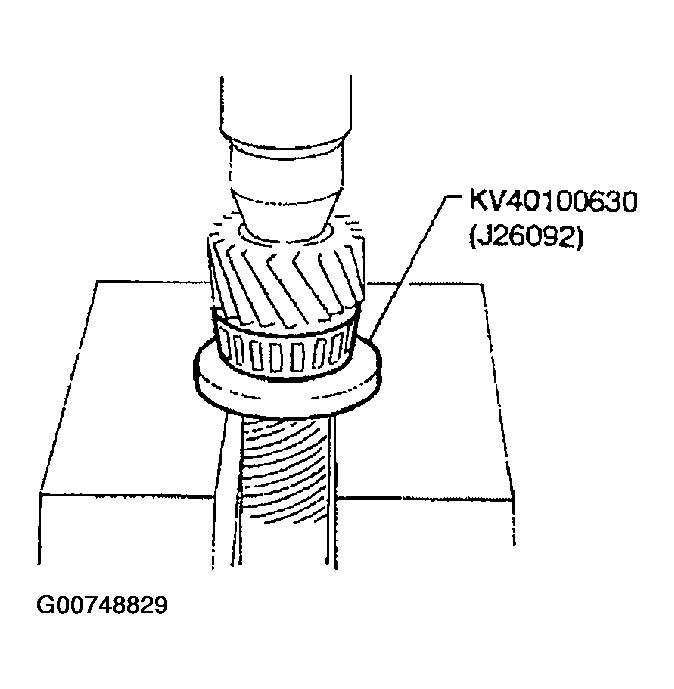

Press reduction pinion gear bearing inner race on reduction pinion gear.

Fig 1: Installing Reduction Pinion Gear Bearing Inner Race On Reduction Pinion Gear
Courtesy of NISSAN MOTOR CO., U.S.A.

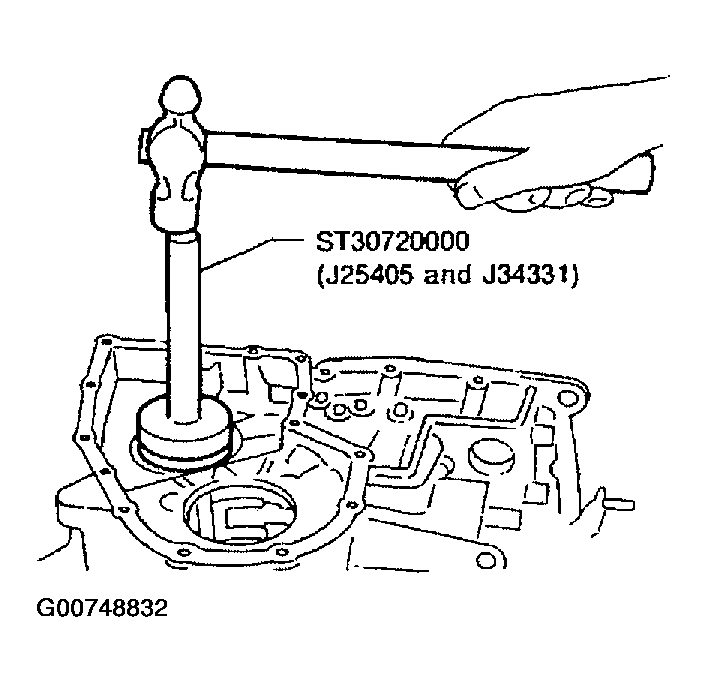

Install reduction pinion gear bearing outer race on transaxle case.

Fig 2: Installing Reduction Pinion Gear Bearing Outer Race On Transaxle Case
Courtesy of NISSAN MOTOR CO., U.S.A.

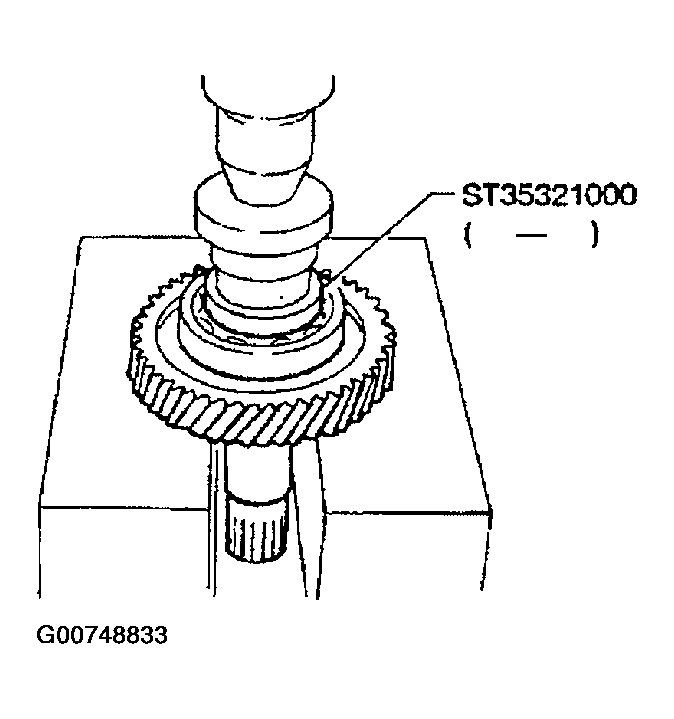

Press idler gear bearing inner race on idler gear.

Fig 3: Installing Idler Gear Bearing Inner Race On Idler Gear
Courtesy of NISSAN MOTOR CO., U.S.A.
Install idler gear bearing outer race on transaxle case.

Fig 4: Installing Idler Gear Bearing Outer Race On Transaxle Case
Courtesy of NISSAN MOTOR CO., U.S.A.

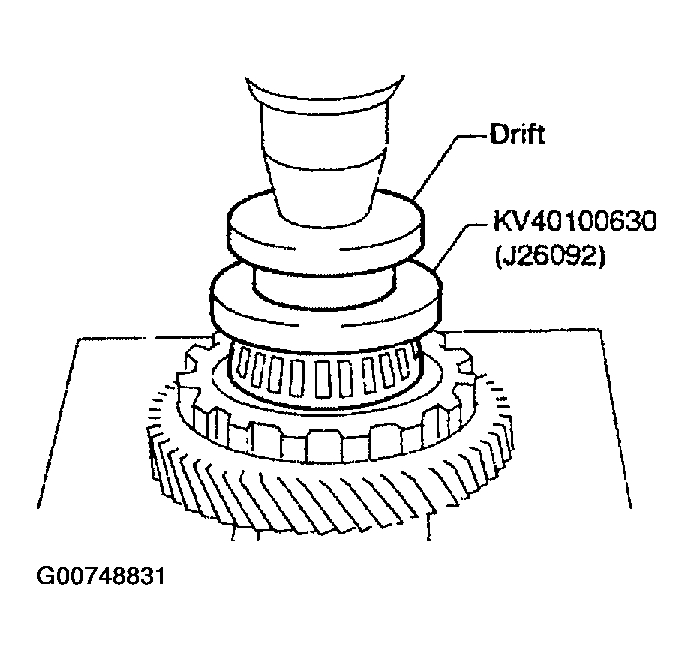

Press output shaft bearing on output shaft.

Fig 5: Installing Output Shaft Bearing On Output Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.

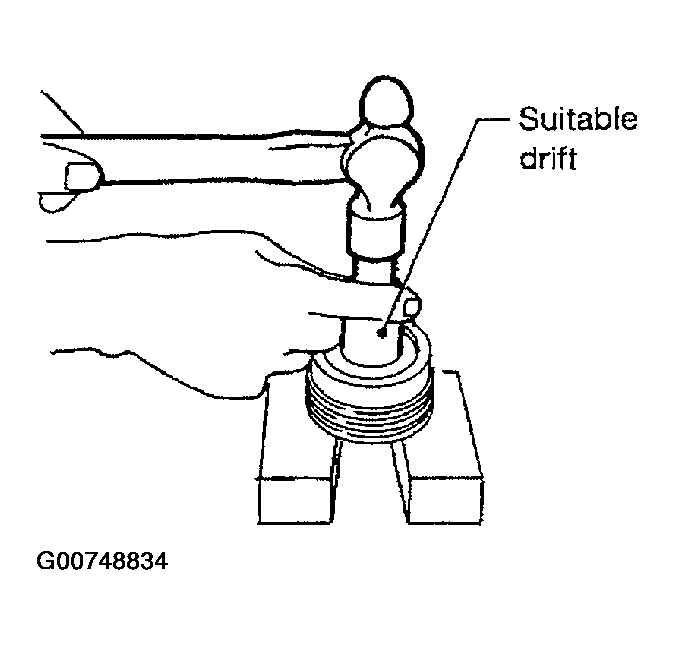

Press needle bearing on bearing retainer.

Fig 6: Installing Needle Bearing On Bearing Retainer
Courtesy of NISSAN MOTOR CO., U.S.A.

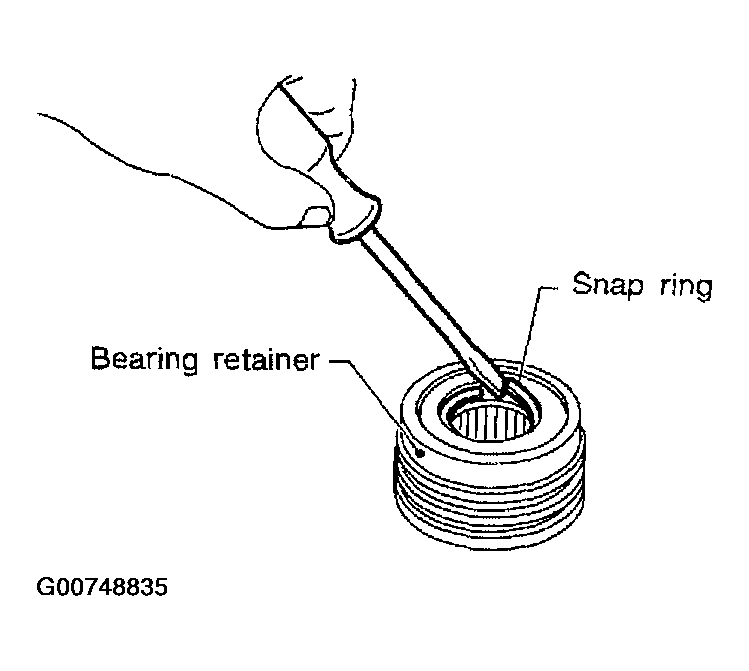

Install snap ring to bearing retainer.
CAUTION: Do not expand snap ring excessively.

Fig 7: Installing Snap Ring To Bearing Retainer
Courtesy of NISSAN MOTOR CO., U.S.A.

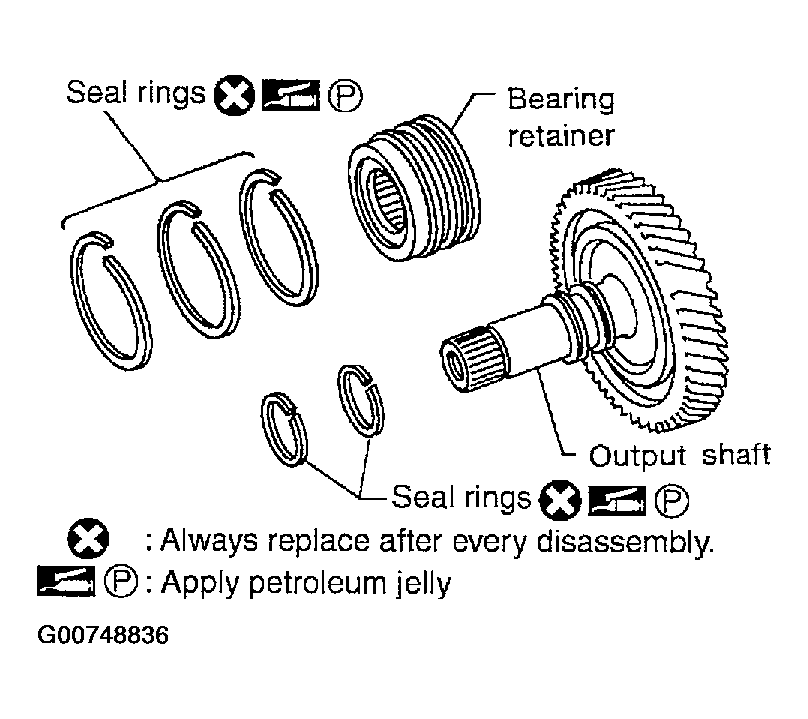

After packing ring grooves with petroleum jelly, carefully install new seal rings on output shaft and bearing retainer.
CAUTION:
- Apply petroleum jelly.

  Fig 8: Installing Seal Rings On Output Shaft And Bearing Retainer
  Courtesy of NISSAN MOTOR CO., U.S.A.

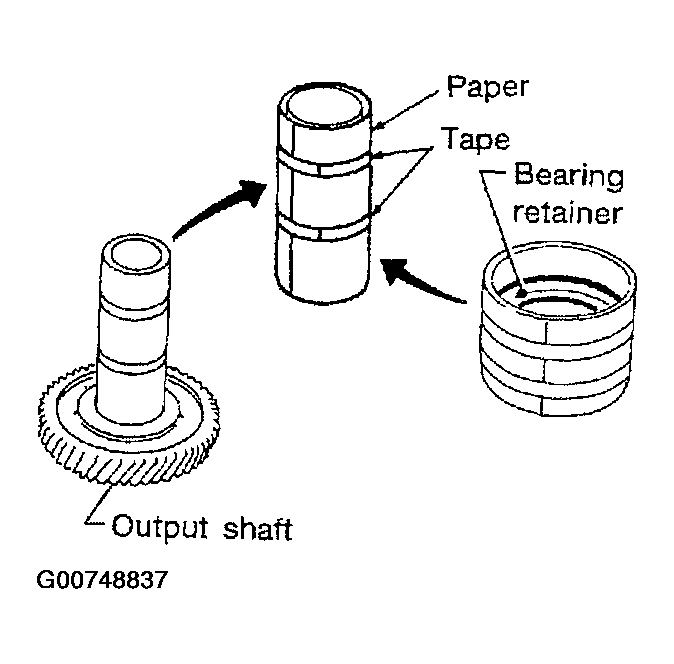

- Roll paper around seal rings to prevent seal rings from spreading.

  Fig 9: Protecting Seal Rings
  Courtesy of NISSAN MOTOR CO., U.S.A.
