Manual Shaft: Removal

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove detent spring from transaxle case.

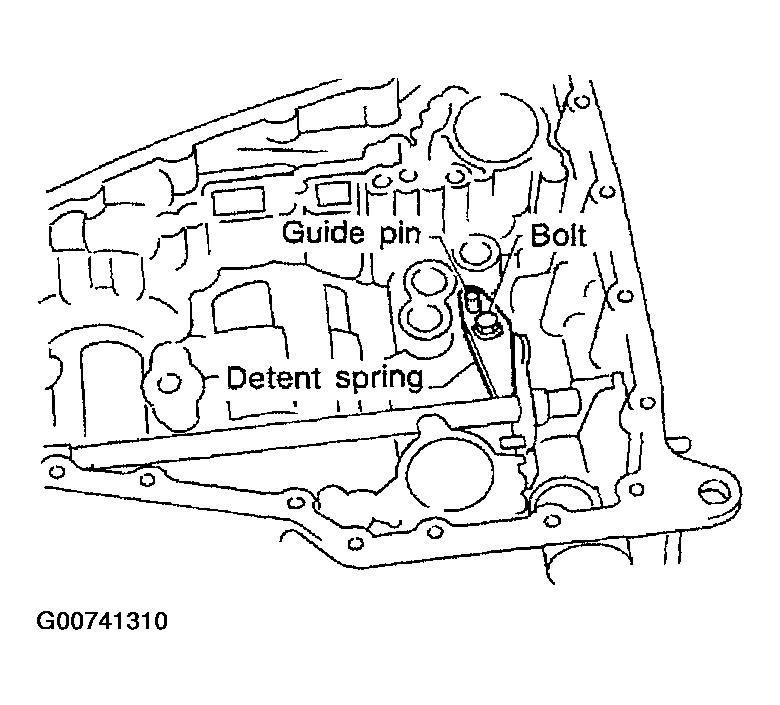

    Fig 1: Removing Detent Spring From Transaxle Case
    G00741310Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Drive out manual plate retaining pin.

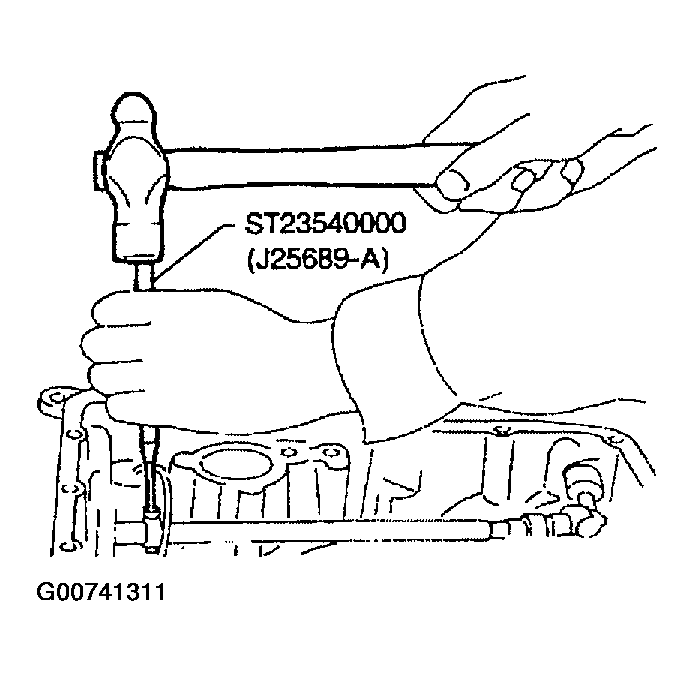

    Fig 2: Removing Manual Plate Retaining Pin
    G00741311Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Drive and pull out parking rod plate retaining pin.
  4. Remove parking rod plate from manual shaft.
  5. Draw out parking rod from transaxle case.

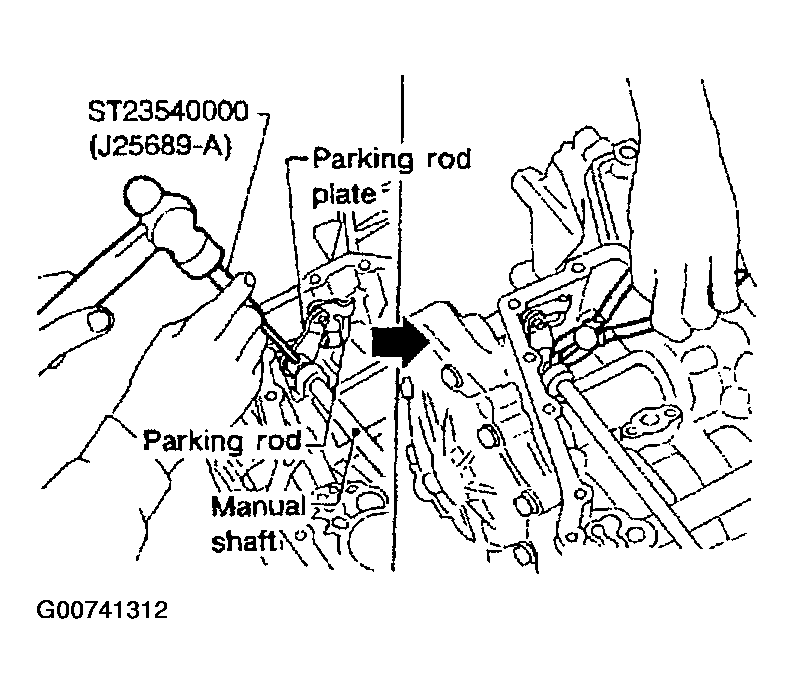

    Fig 3: Drawing Out Parking Rod From Transaxle Case
    G00741312Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Pull out manual shaft retaining pin.
  7. Remove manual shaft and manual plate from transaxle case.

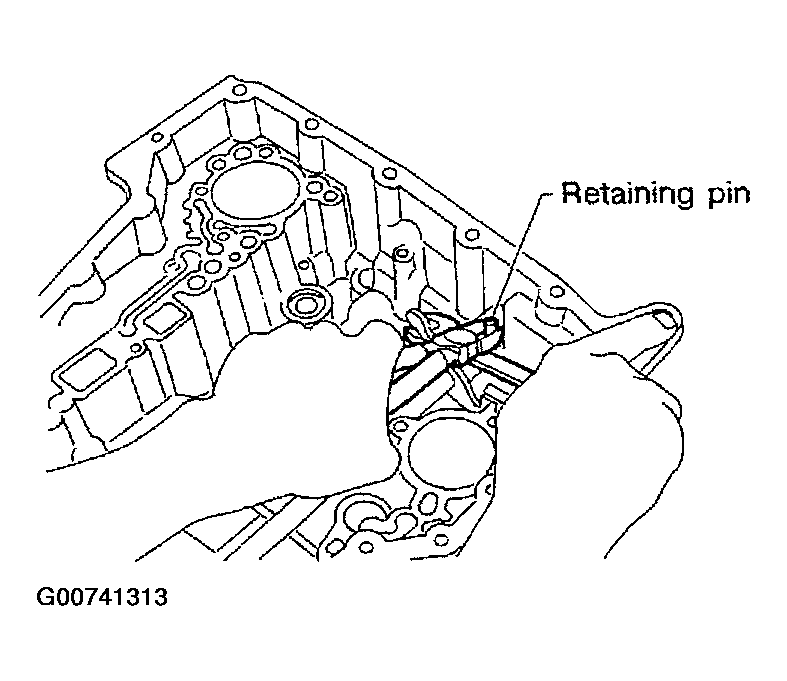

    Fig 4: Pulling Out Manual Shaft Retaining Pin
    G00741313Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Remove manual shaft oil seal.
    CAUTION: Be careful not to scratch transaxle case.

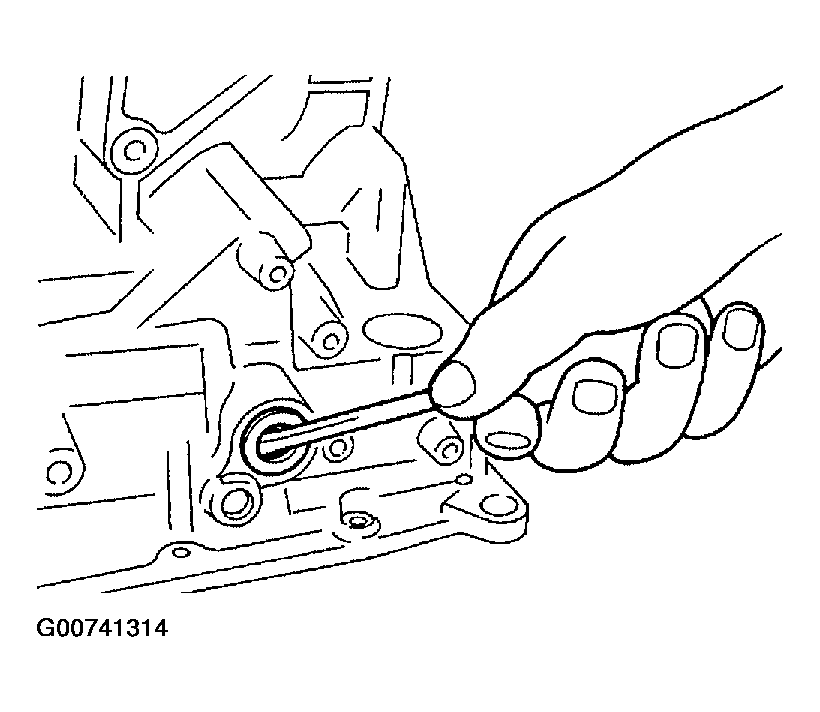

Fig 5: Removing Manual Shaft Oil Seal
G00741314Courtesy of NISSAN MOTOR CO., U.S.A.
