Manual Shaft: Installation

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install manual shaft oil seal.
    CAUTION:
    • Do not reuse oil seal.
    • Apply ATF to outer surface of oil seal.

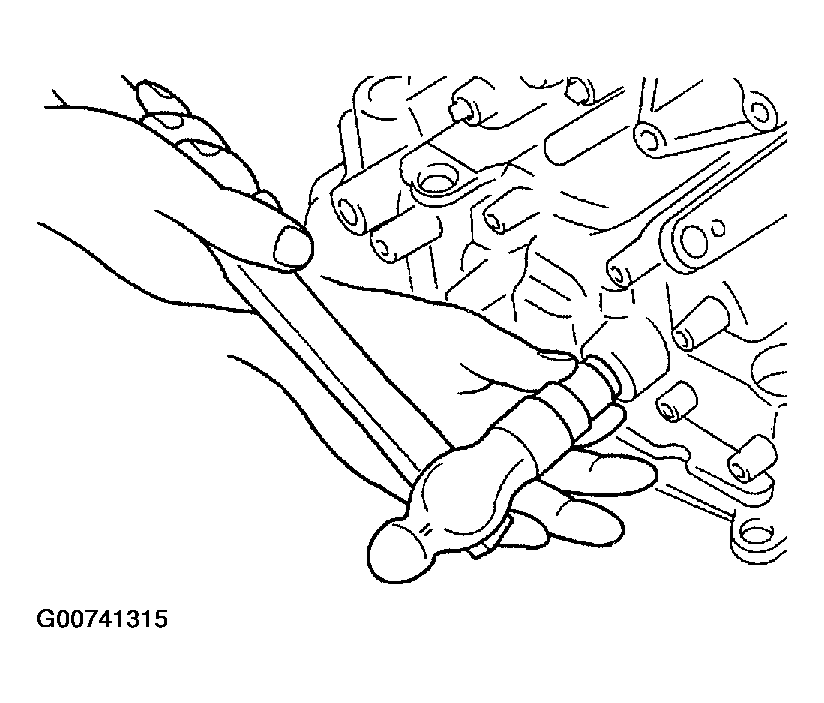

    Fig 1: Installing Manual Shaft Oil Seal
    G00741315Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install manual shaft and manual plate.

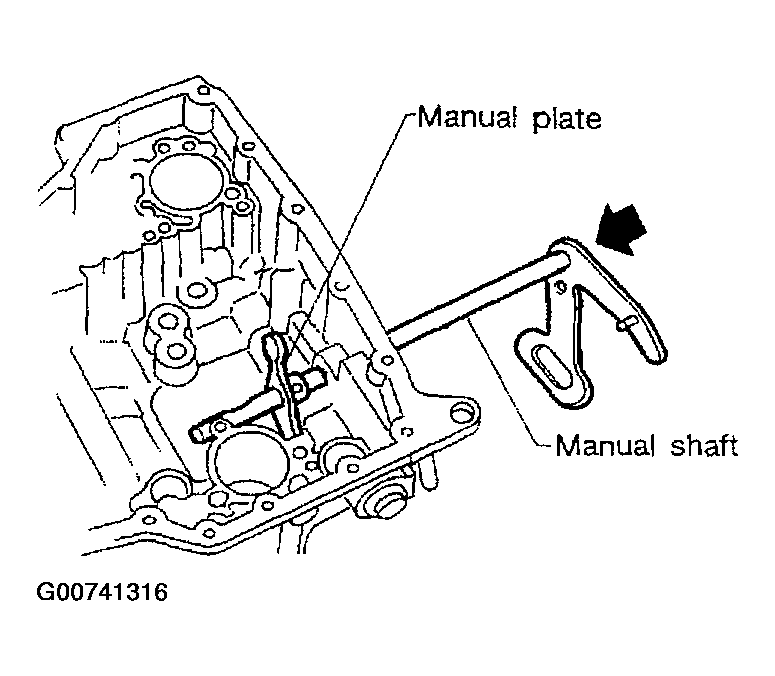

    Fig 2: Installing Manual Shaft And Manual Plate
    G00741316Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Align groove of manual shaft and hole of transaxle case.
  4. Install manual shaft retaining pin up to bottom of hole.

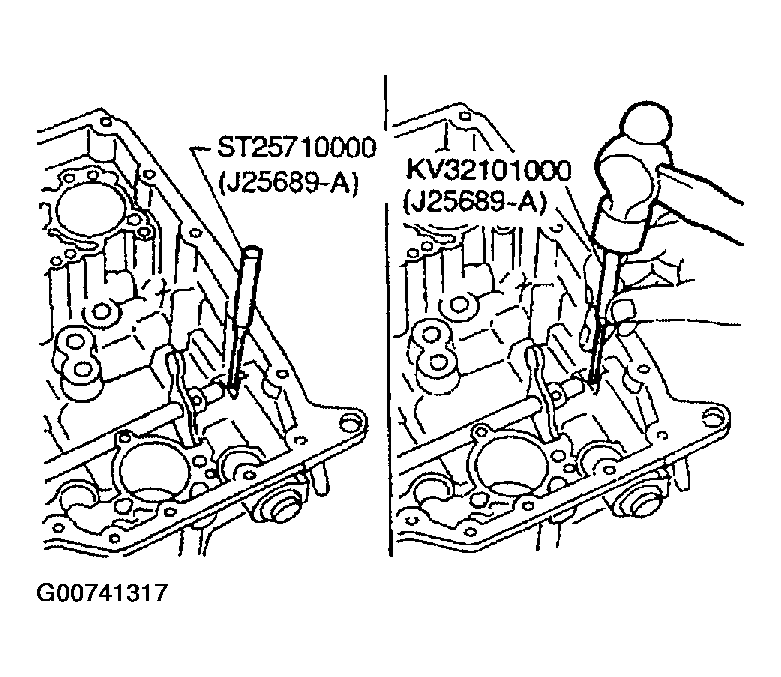

    Fig 3: Installing Manual Shaft Retaining Pin Up To Bottom Of Hole
    G00741317Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install parking rod to parking rod plate.
  6. Set parking rod assembly onto manual shaft and drive retaining pin.
    CAUTION:
    • Do not reuse retaining pin.
    • Both ends of pin should protrude.

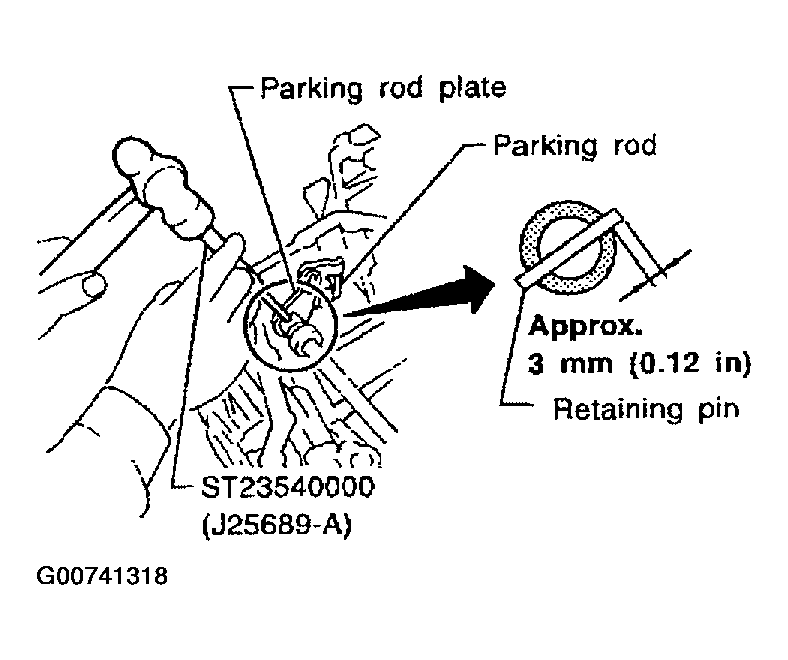

    Fig 4: Installing Parking Rod To Parking Rod Plate
    G00741318Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Drive manual plate retaining pin.
    CAUTION:
    • Do not reuse retaining pin.
    • Both ends of pin should protrude.

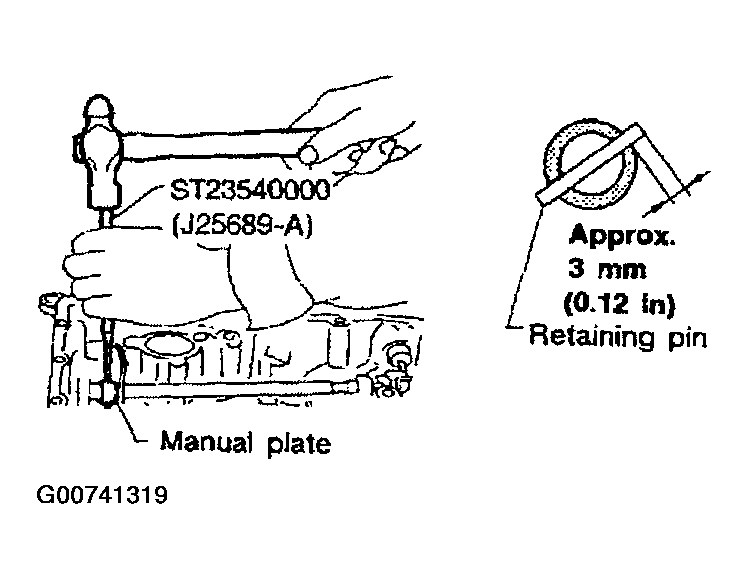

    Fig 5: Installing Manual Plate Retaining Pin
    G00741319Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Install detent spring. Tighten detent spring bolts to the specified torque. Refer to "COMPONENTS ".

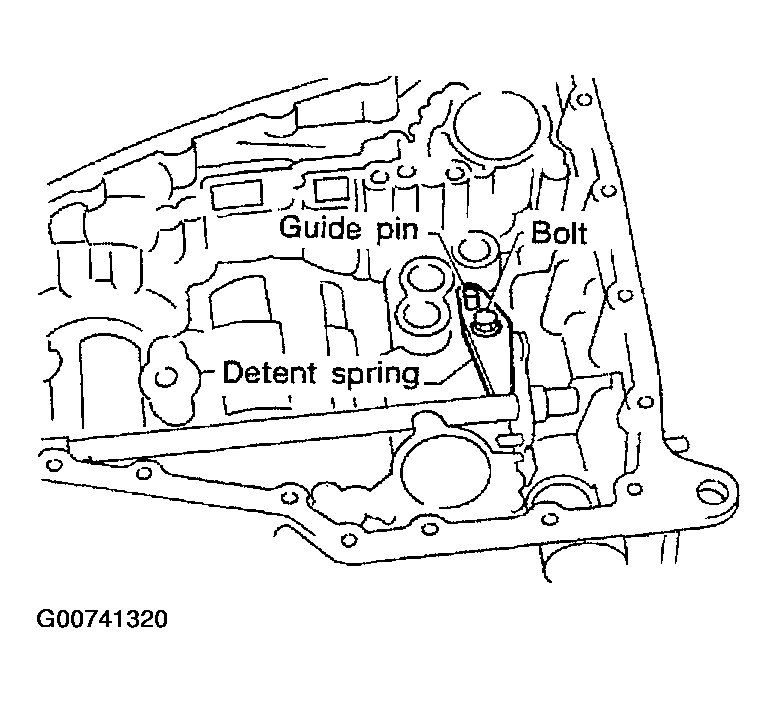

    Fig 6: Installing Detent Spring
    G00741320Courtesy of NISSAN MOTOR CO., U.S.A.
