Low & Reverse Brake: Assembly

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Install D-rings on piston.

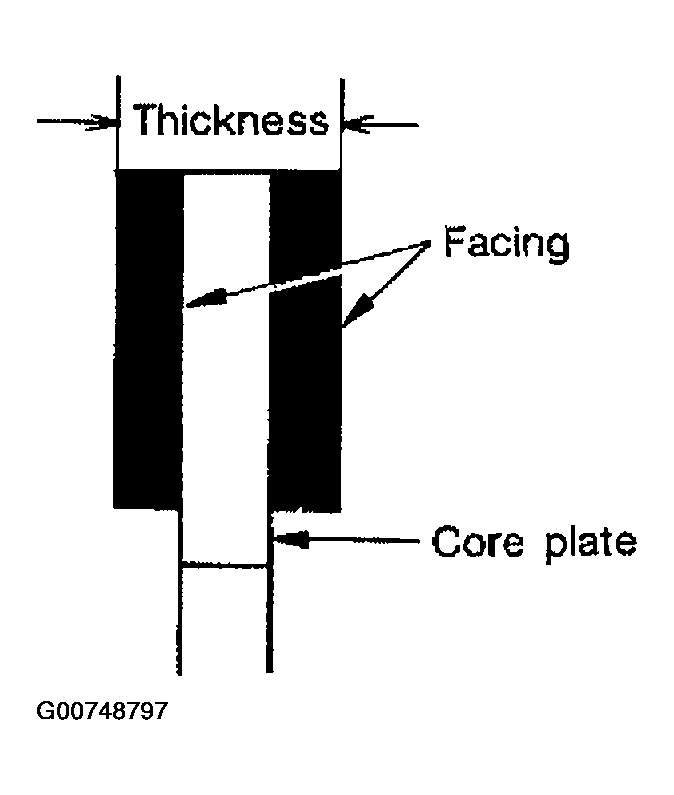

Fig 1: Identifying Low & Reverse Brake Drive Plate Thickness
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
- Do not reuse D-ring.
- Apply ATF to both parts.

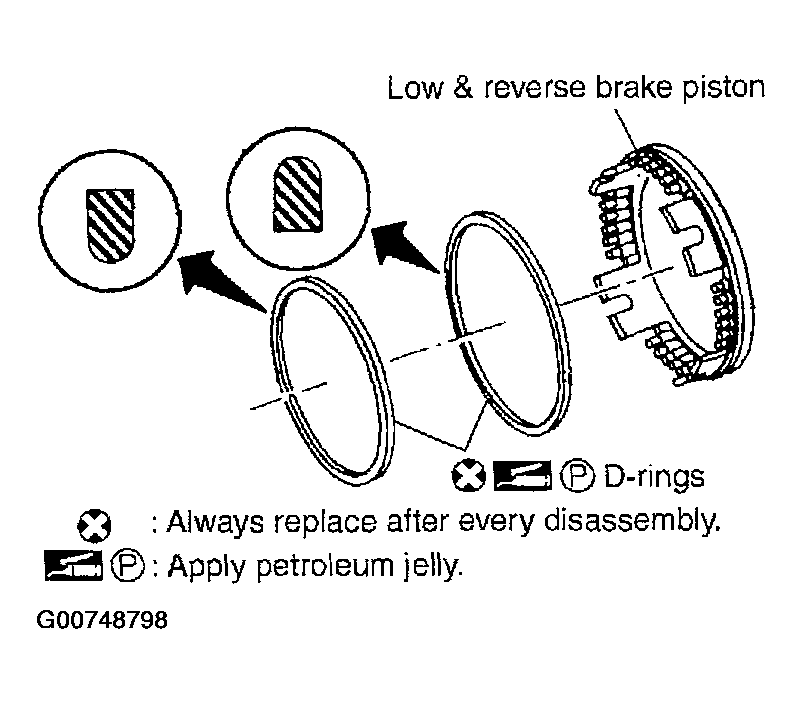

Fig 2: Installing D Rings On Piston
Courtesy of NISSAN MOTOR CO., U.S.A.
Set and align piston with retainer.

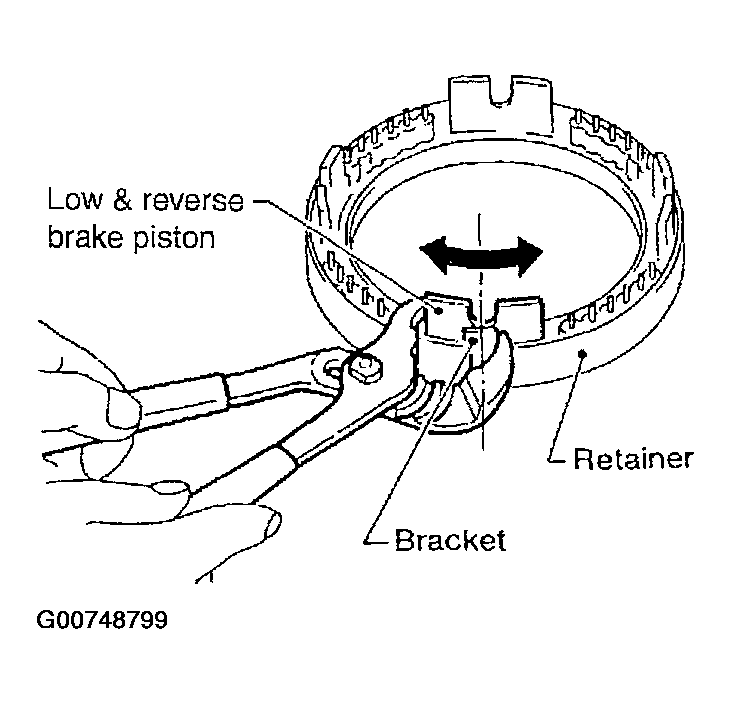

Fig 3: Aligning Piston With Retainer
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: This operation is required in order to engage the protrusions of piston to return springs correctly.

Further procedures are given in "ASSEMBLY".
Install driven plates, drive plates, retaining plate and dish plate on transaxle case.

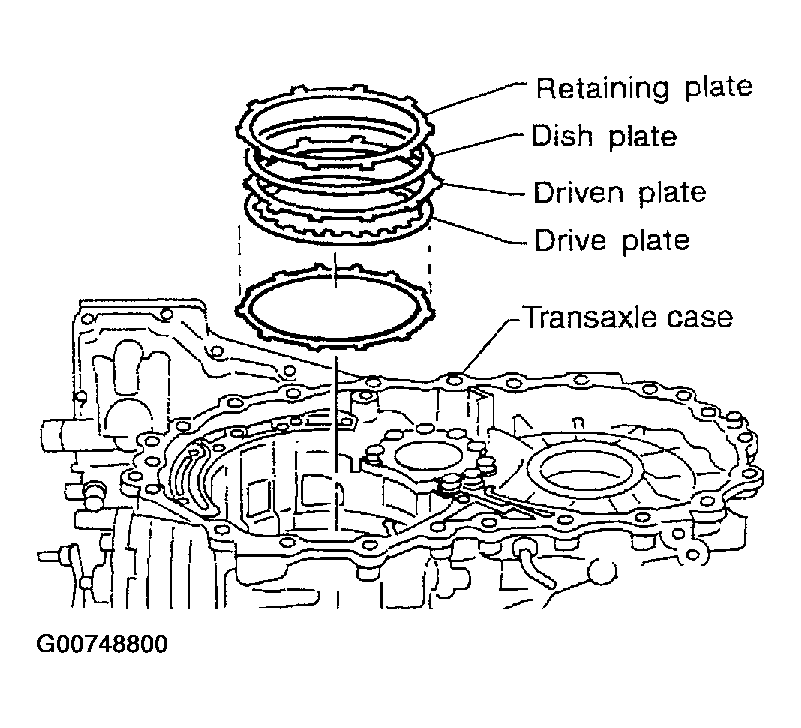

Fig 4: Installing Driven Plates, Drive Plates, Retaining Plate And Dish Plate On Transaxle Case
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Take care with order of plates and direction of dish plate.
Install snap ring.

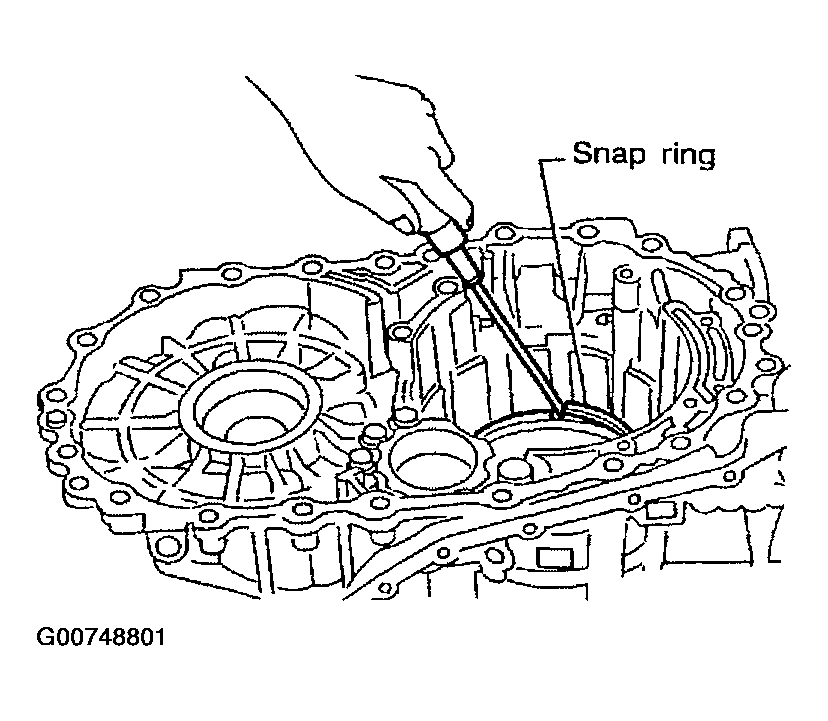

Fig 5: Installing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Do not expand snap ring excessively
Measure clearance between driven plate and transaxle case. If not within allowable limit, select proper retaining plate. (front side)

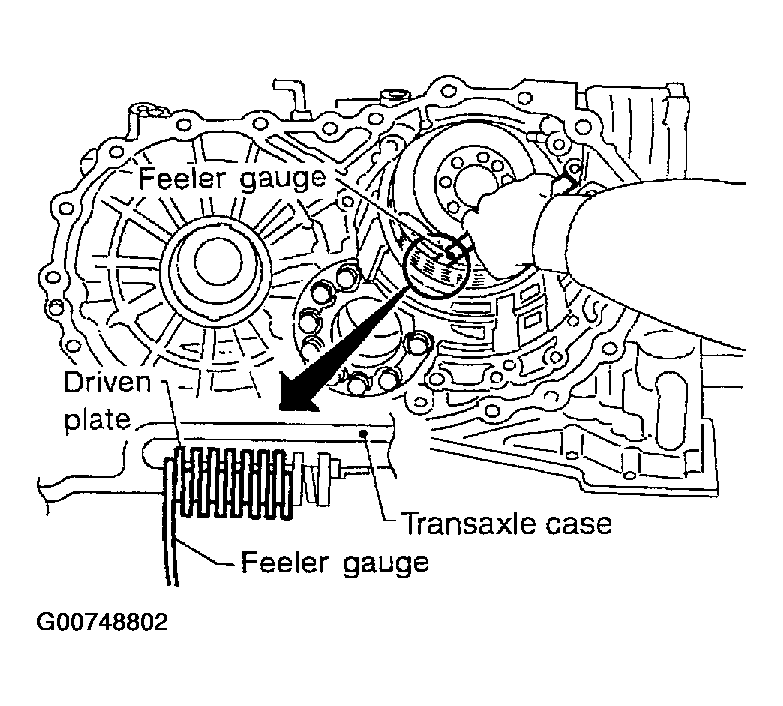

Fig 6: Measuring Clearance Between Driven Plate And Transaxle Case
Courtesy of NISSAN MOTOR CO., U.S.A.

Specified clearance

Standard: 1.7 - 2.1 mm (0.067 - 0.083 in)

Allowable limit: 3.3 mm (0.130 in)

Retaining plate Refer to " LOW & REVERSE BRAKE " .
