High Clutch Drive Plates
WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
- Check facing for burns, cracks or damage.

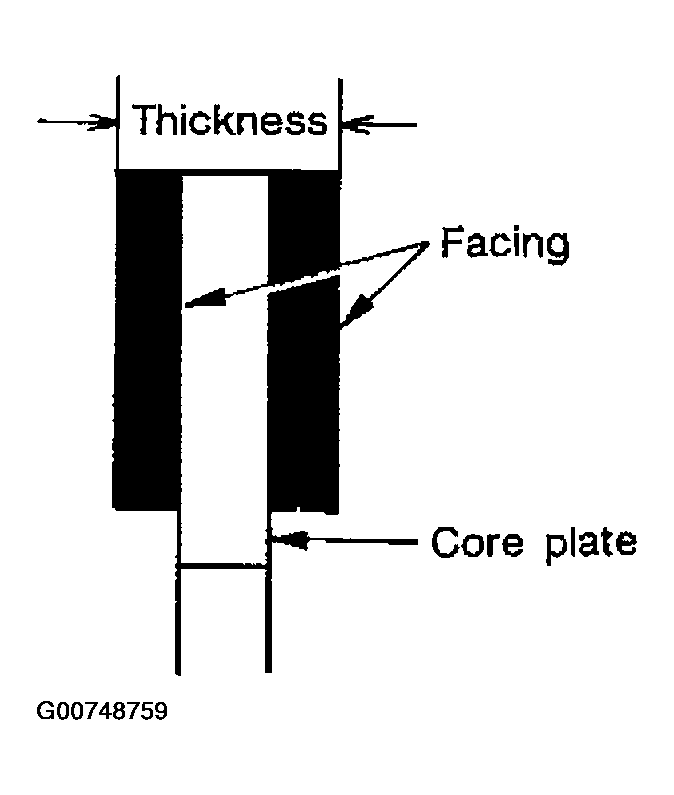

- Measure thickness of facing.
Courtesy of NISSAN MOTOR CO., U.S.A.
Thickness of drive plate:
Standard: 1.5 mm (0.059 in)
Wear limit: 1.3 mm (0.051 in)
- If not within wear limit, replace.
