Forward and Overrun Clutches: Assembly

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

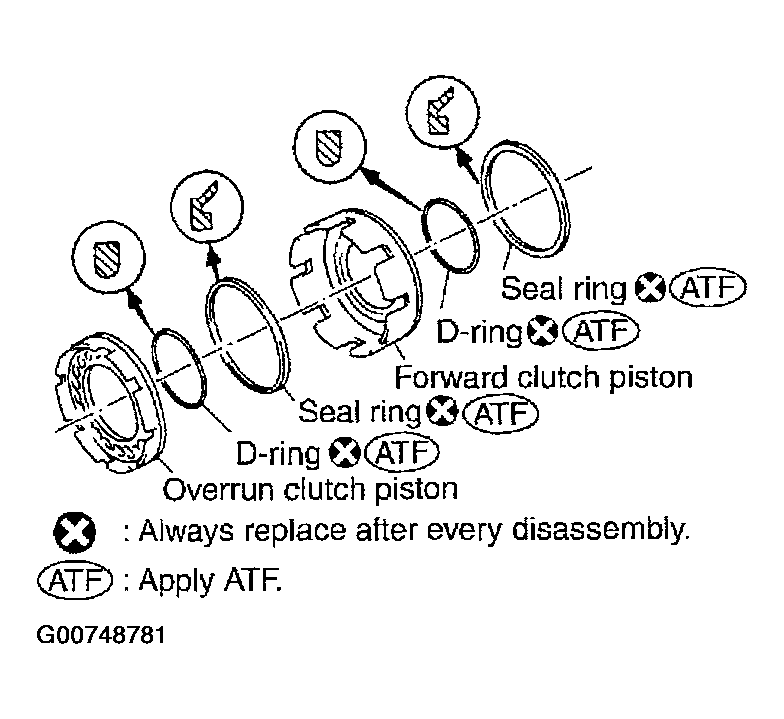

Install D-rings and seal rings on forward clutch piston and overrun clutch piston.

Fig 1: Installing D-Rings And Seal Rings On Forward Clutch Piston And Overrun Clutch Piston
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
- Do not reuse D-ring and seal ring.
- Take care with direction of seal ring.
- Apply ATF to both parts.

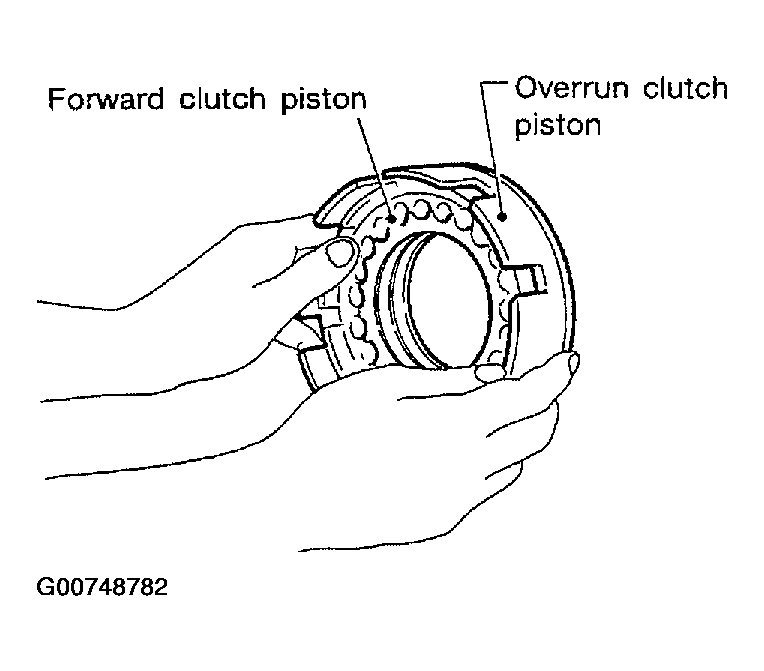

Install overrun clutch piston assembly on forward clutch piston by turning it slowly.

Fig 2: Installing Overrun Clutch Piston Assembly On Forward Clutch Piston
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Apply ATF to inner surface of forward clutch piston.

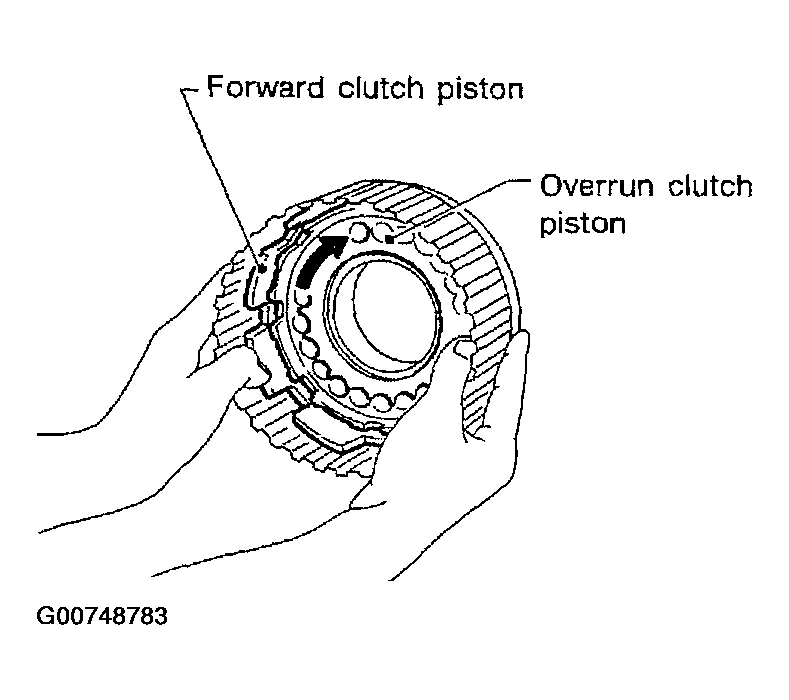

Install forward clutch piston assembly on forward clutch drum by turning it slowly.

Fig 3: Installing Forward Clutch Piston Assembly On Forward Clutch Drum
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Apply ATF to inner surface of drum.

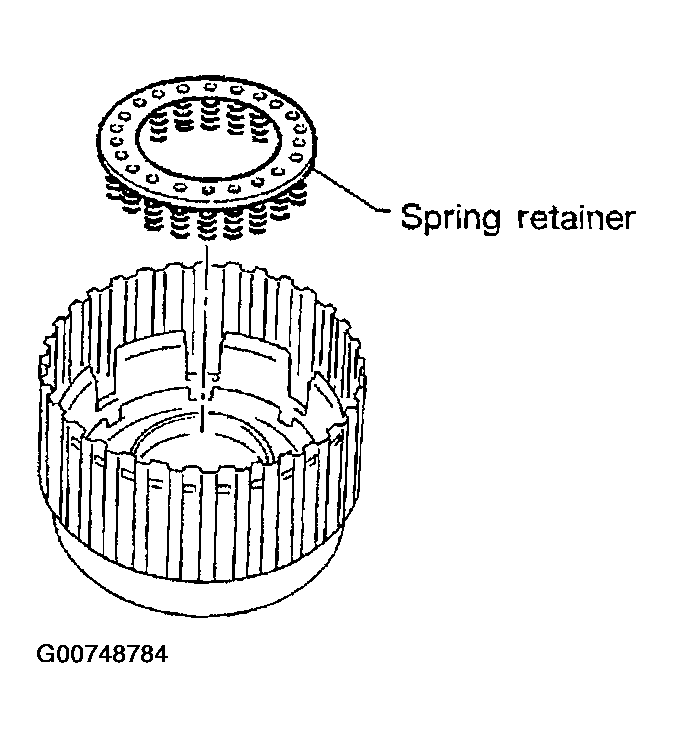

Install return spring on overrun clutch piston.

Fig 4: Installing Return Spring On Overrun Clutch Piston
Courtesy of NISSAN MOTOR CO., U.S.A.
- Align the mark on spring retainer with check ball in overrun clutch piston.

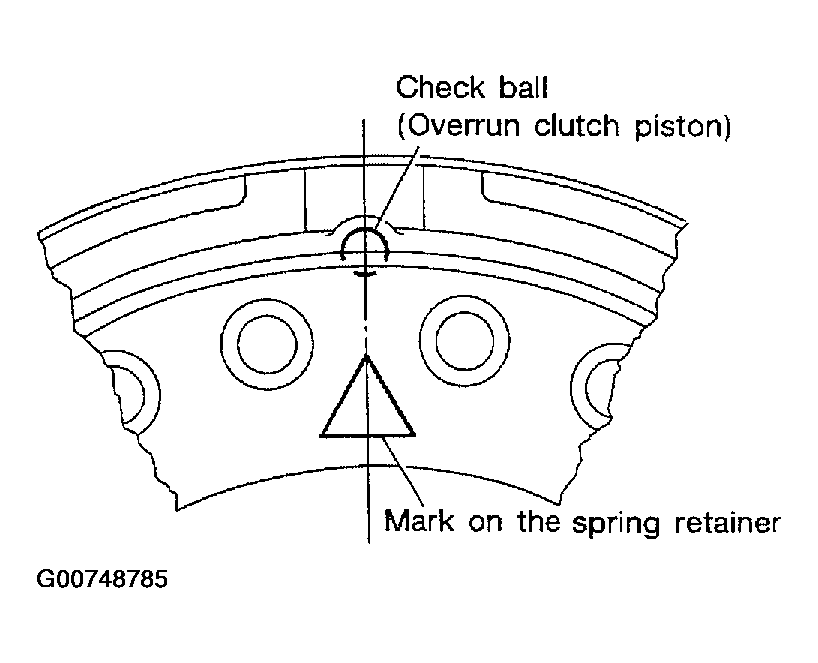

  Fig 5: Aligning Mark On Spring Retainer With Check Ball In Overrun Clutch Piston
  Courtesy of NISSAN MOTOR CO., U.S.A.

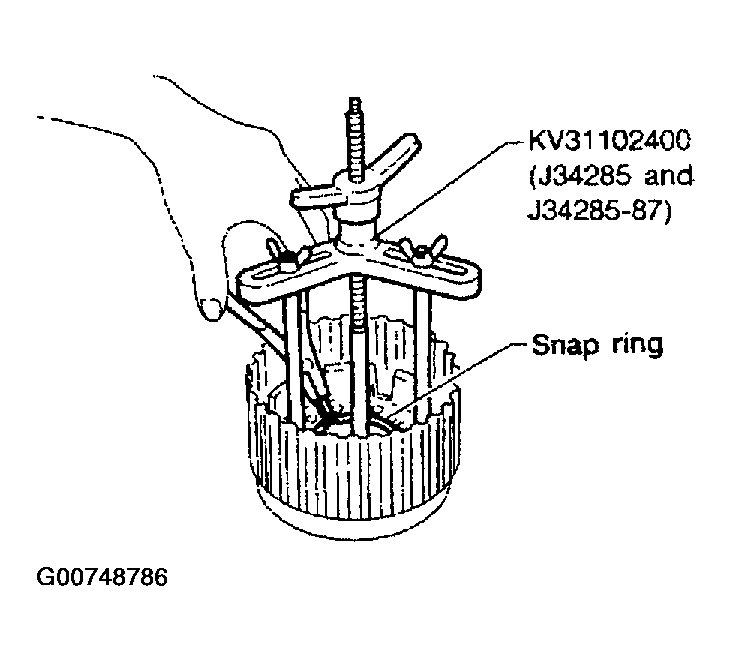

Set Tool on spring retainer and install snap ring while compressing return springs.

Fig 6: Installing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
- Set Tool directly over return springs.
- Do not expand snap ring excessively.
- Do not align snap ring gap with spring retainer stopper.

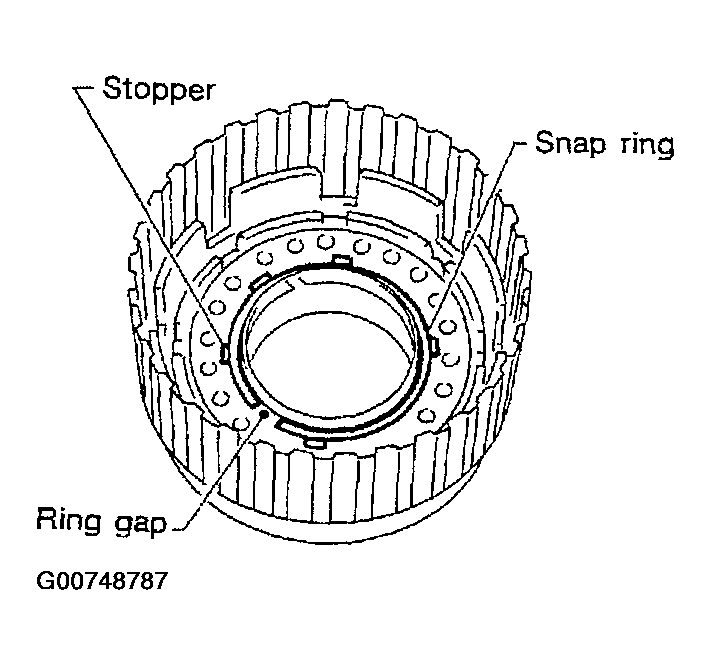

  Fig 7: Precaution For Aligning Snap Ring Gap With Spring Retainer Stopper
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install drive plates, driven plates, retaining plate and dish plate for overrun clutch.

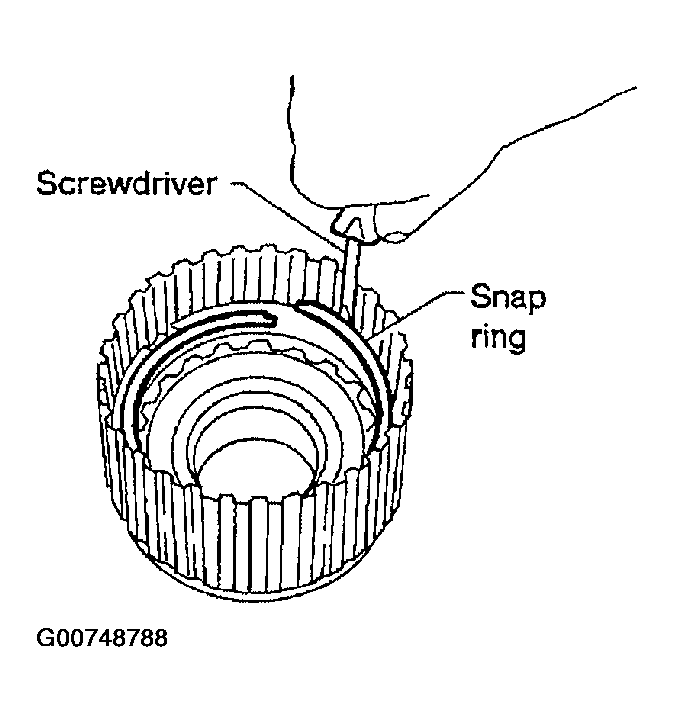

Fig 8: Installing Overrun Clutch Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Take care with order of plates.

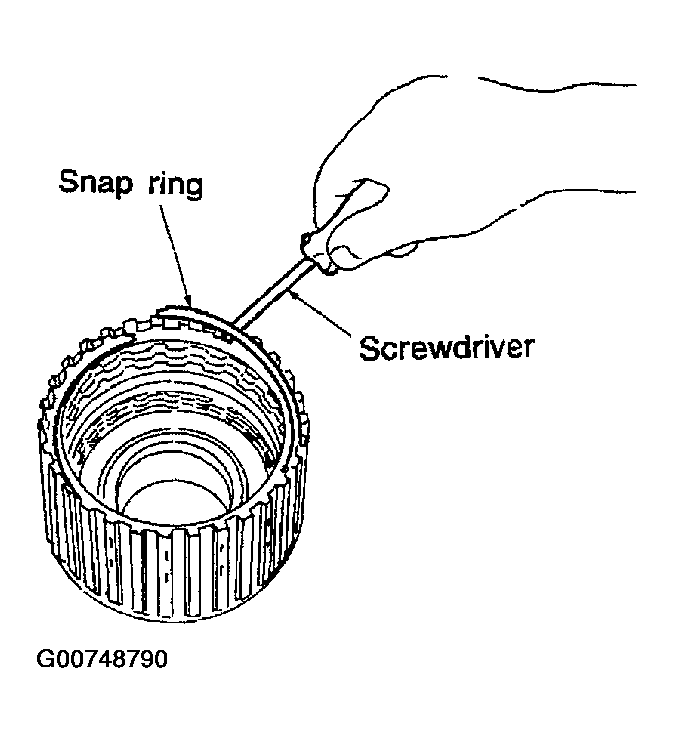

Install snap ring for overrun clutch.
CAUTION: Do not expand snap ring-excessively.

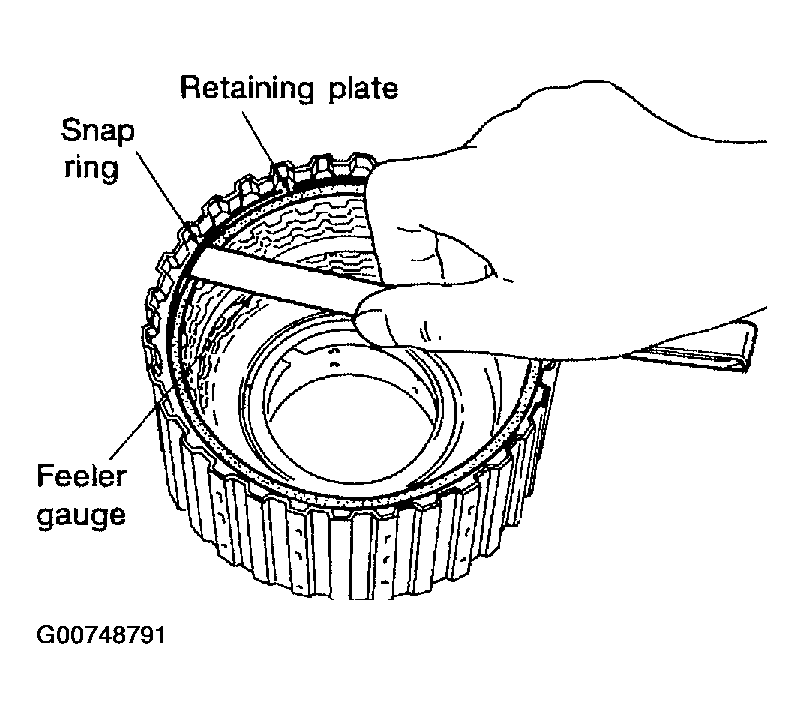

Measure clearance between overrun clutch retaining plate and snap ring.

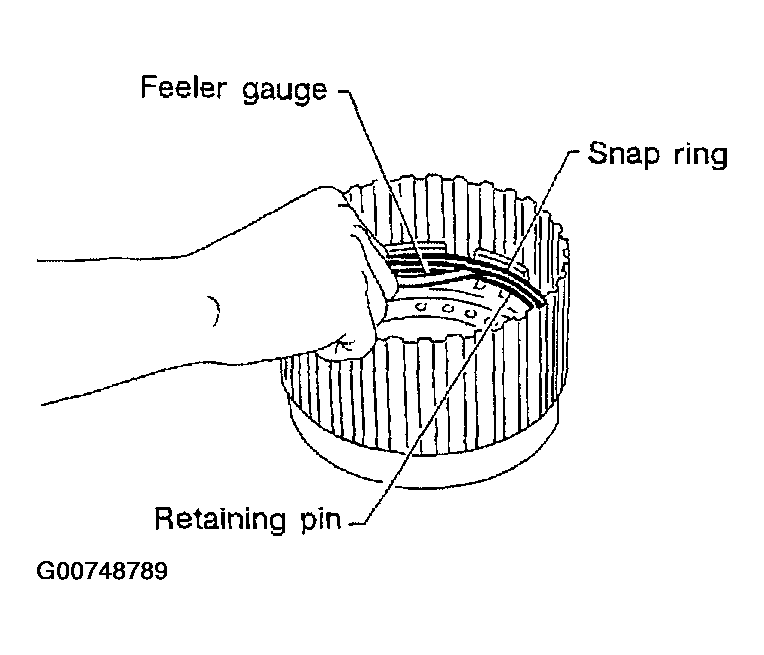

Fig 9: Measuring Clearance Between Overrun Clutch Retaining Plate And Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.

If not within allowable limit, select proper retaining plate.

Specified clearance

Standard: 0.7 - 1.1 mm (0.028 - 0.043 in)

Allowable limit: 1.7 mm (0.067 in)

Overrun clutch retaining plate Refer to " OVERRUN CLUTCH "
Install drive plates, driven plates, retaining plate and dish plate for forward clutch.

Fig 10: Installing Forward Clutch Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Take care with order of plates.
Install snap ring for forward clutch.
CAUTION: Do not expand snap ring excessively.
Measure clearance between forward clutch retaining plate and snap ring.

Fig 11: Measuring Clearance Between Forward Clutch Retaining Plate And Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.

If not within allowable limit, select proper retaining plate.

Specified clearance

Standard: 0.45 - 0.85 mm (0.0177 - 0.0335 in)

Allowable limit: 1.85 mm (0.0728 in)

Forward clutch retaining plate: Refer to " FORWARD CLUTCH "
Check operation of forward clutch.

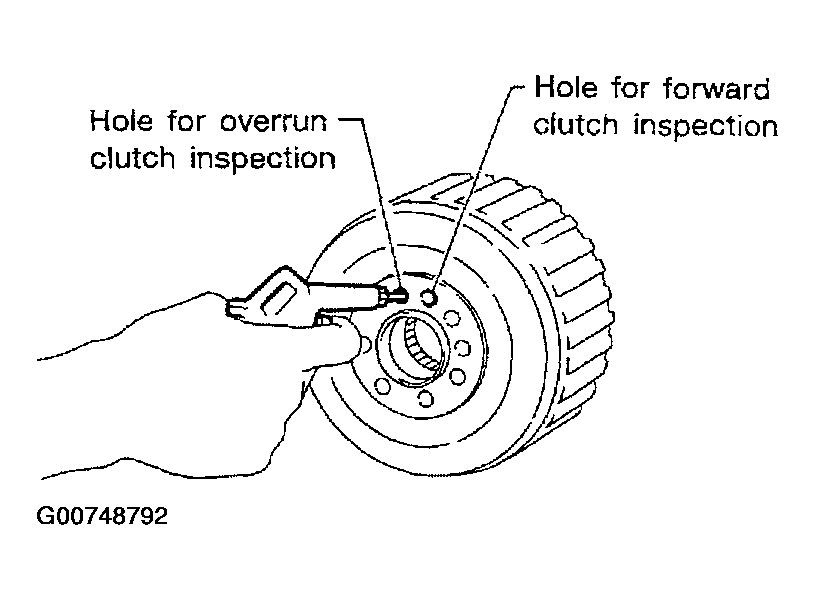

Fig 12: Checking Forward Clutch Operation
Courtesy of NISSAN MOTOR CO., U.S.A.
Check operation of overrun clutch.
