Retainer Plate (Lower Body)

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

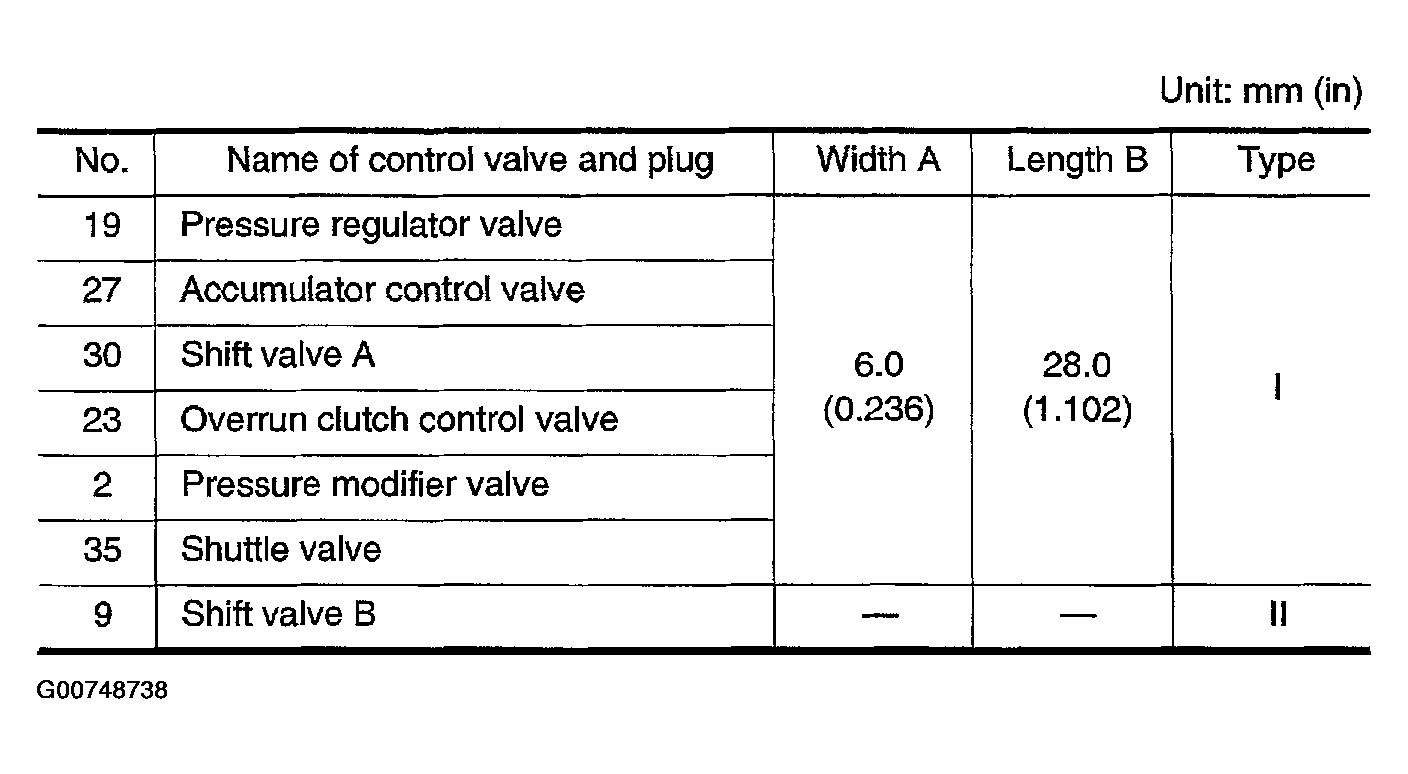

Fig 1: Retainer Plate (Lower Body) Specifications
G00748738Courtesy of NISSAN MOTOR CO., U.S.A.

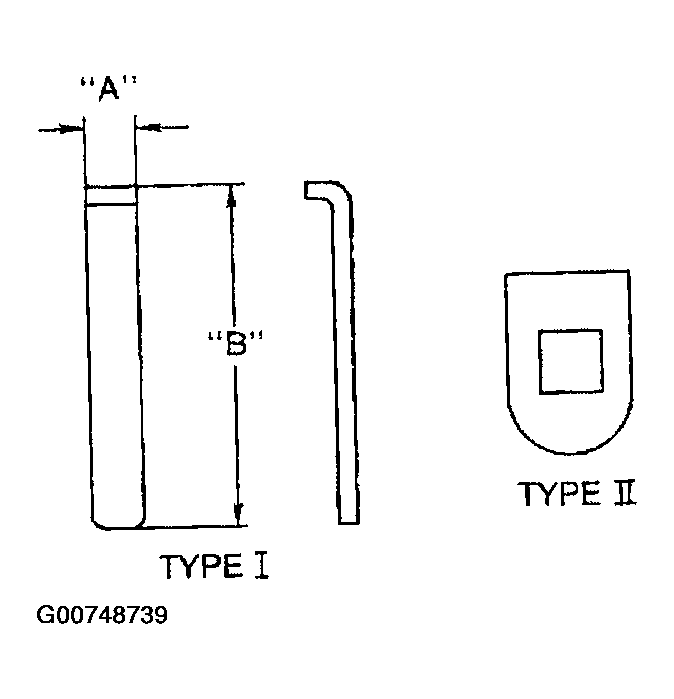

Fig 2: Identifying Retainer Plate (Lower Body) Length And Width
G00748739Courtesy of NISSAN MOTOR CO., U.S.A.
