Bolt length, number and location:

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

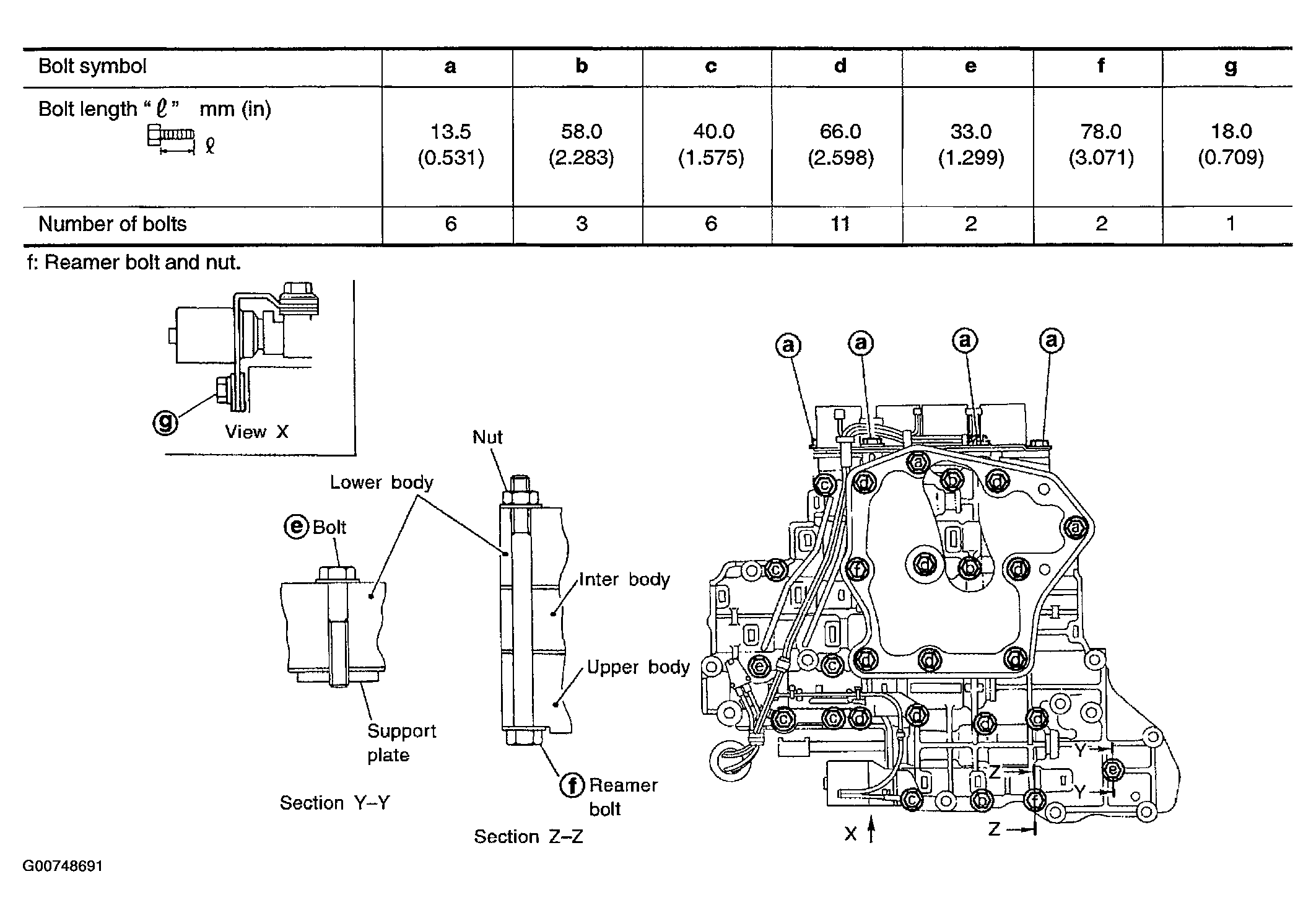

Fig 1: Identifying Bolt Length, Number And Location

Courtesy of NISSAN MOTOR CO., U.S.A.

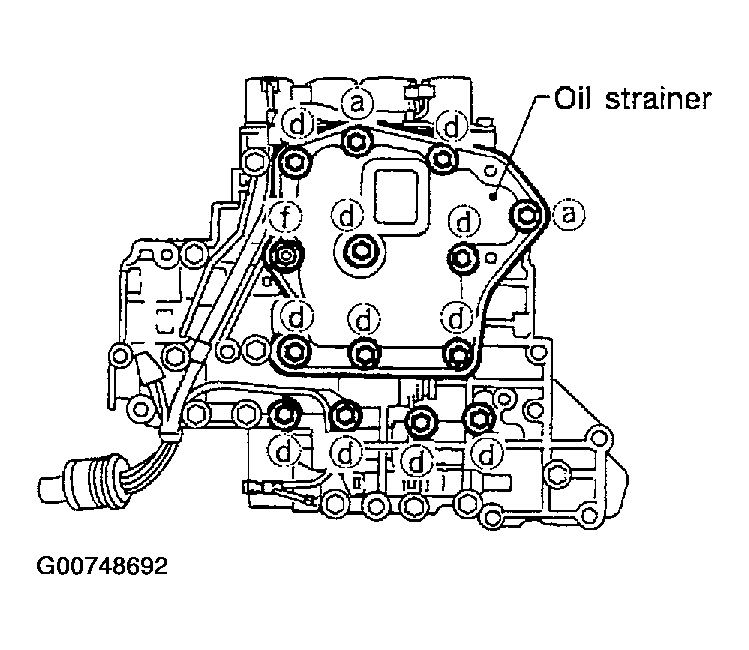

Remove bolts a, d, reamer bolt f and nut and remove oil strainer from control valve assembly.

Fig 2: Removing Oil Strainer From Control Valve Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

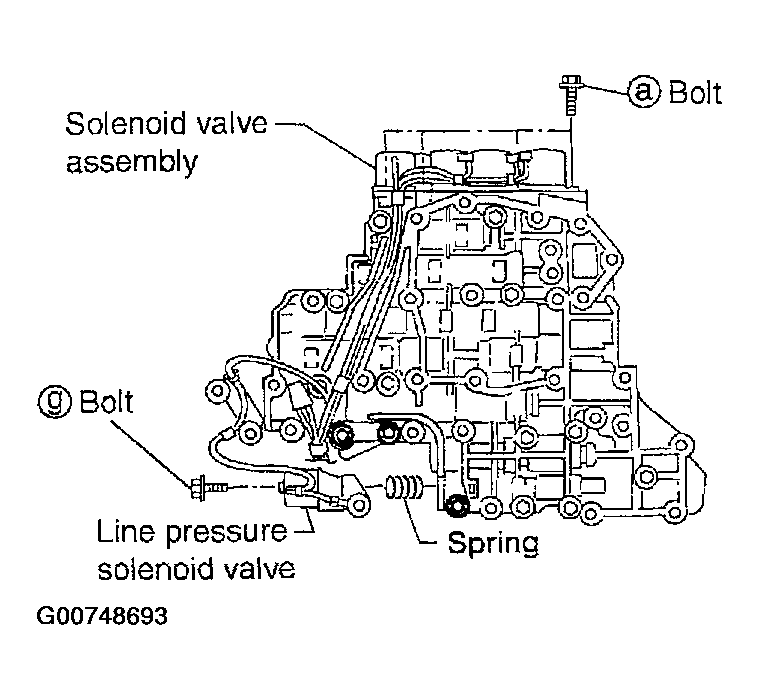

Remove solenoid valve assembly and line pressure solenoid valve from control valve assembly.

Fig 3: Removing Solenoid Valve Assembly And Line Pressure Solenoid Valve From Control Valve Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

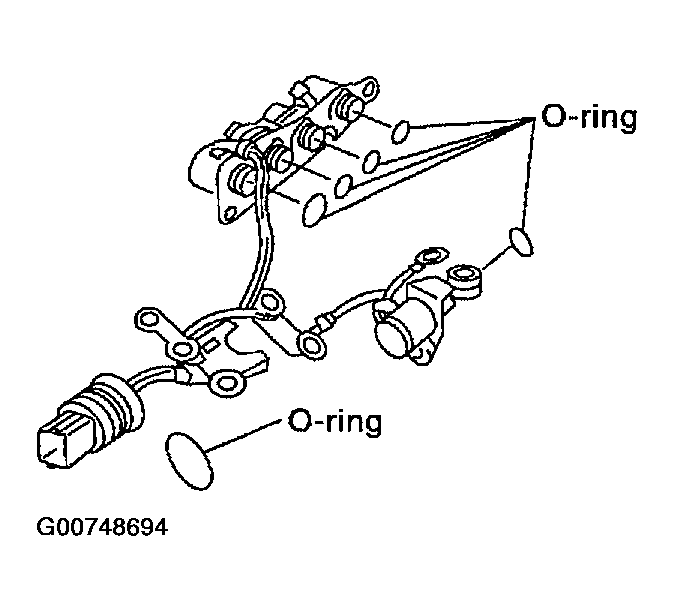

Remove O-rings from solenoid valves and terminal body.

Fig 4: Removing O-Rings From Solenoid Valves And Terminal Body
Courtesy of NISSAN MOTOR CO., U.S.A.

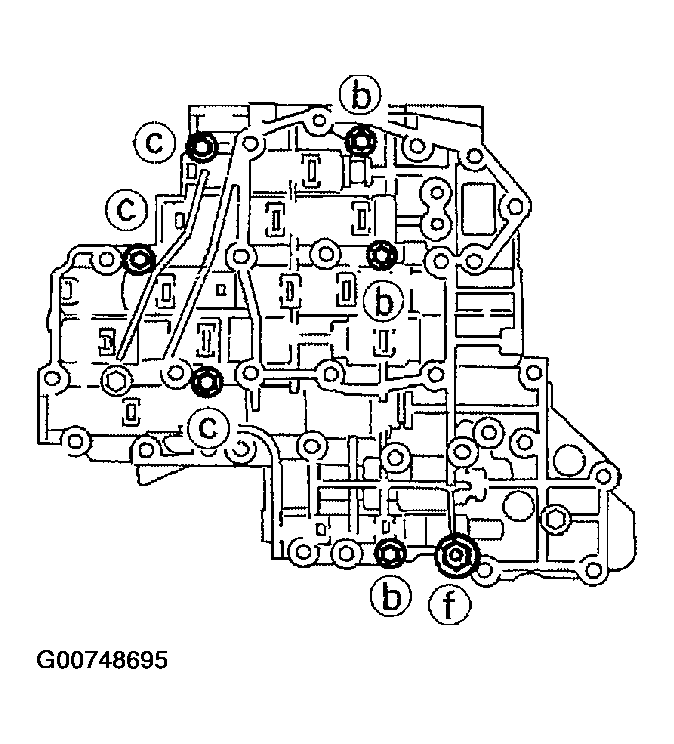

Place upper body facedown, and remove bolts b, c, f and nut.
CAUTION: Remove bolts with upper body facing down, because upper body and inter body may come off and steel ball may fall and be lost.

Fig 5: Identifying Bolts Location
Courtesy of NISSAN MOTOR CO., U.S.A.

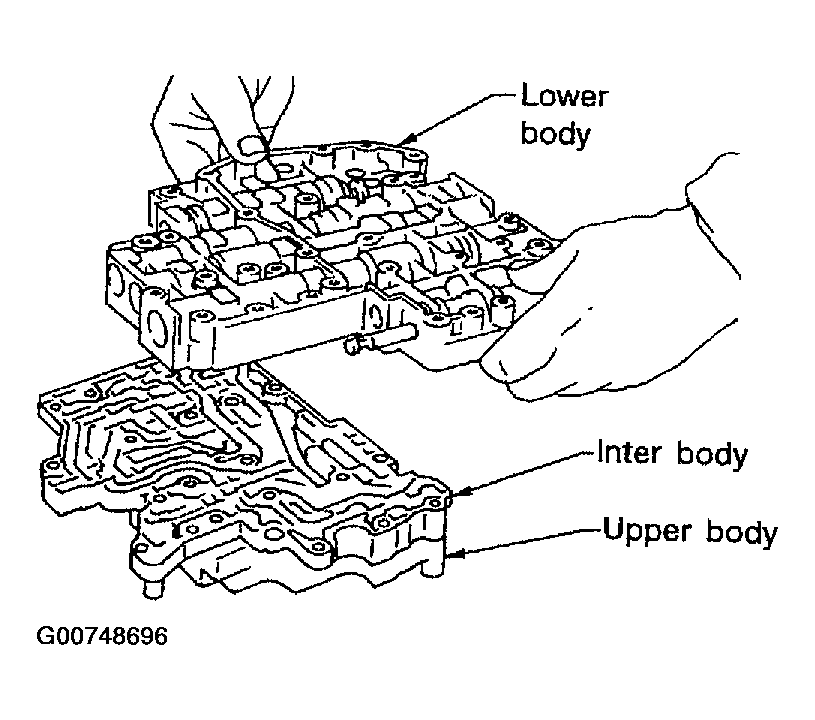

Remove inter body from lower body.

Fig 6: Removing Inter Body From Lower Body
Courtesy of NISSAN MOTOR CO., U.S.A.

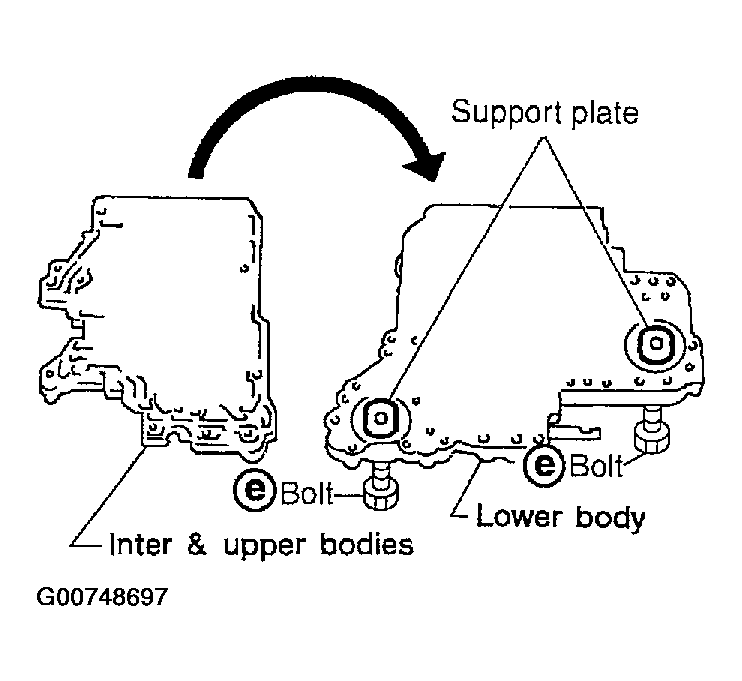

Turn over lower body.
Remove bolts e, separating plate and support plate from lower body.

Fig 7: Separating Plate And Support Plate From Lower Body
Courtesy of NISSAN MOTOR CO., U.S.A.

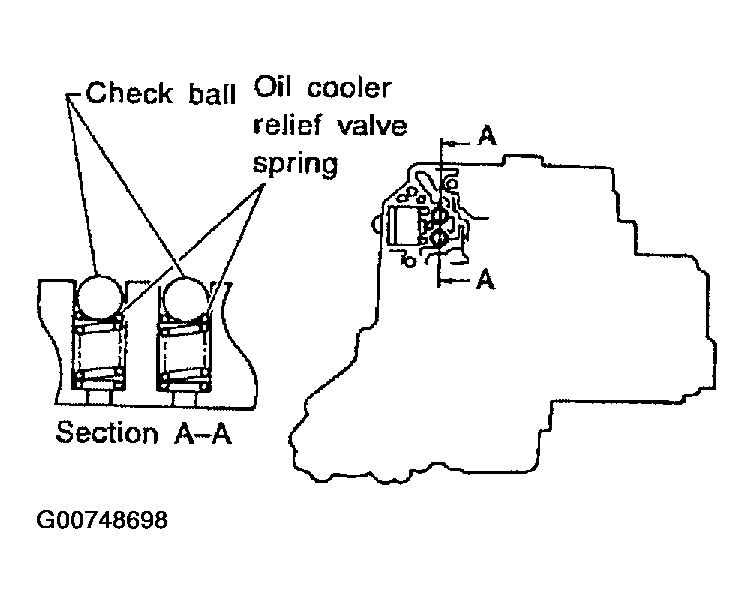

Remove check balls and oil coller relief valve springs from lower body.
CAUTION: Be careful not to lose check balls and oil cooler relief valve springs.

Fig 8: Removing Check Balls And Oil Coller Relief Valve Springs From Lower Body
Courtesy of NISSAN MOTOR CO., U.S.A.

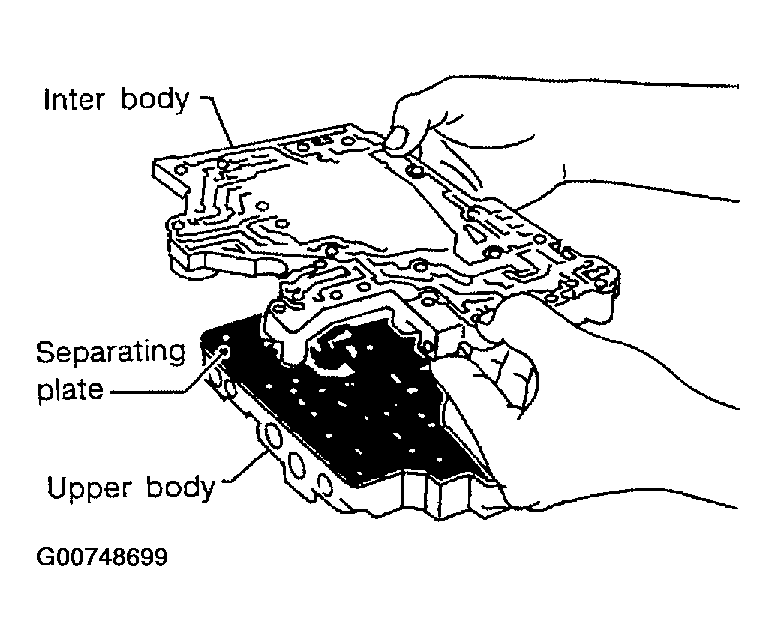

Remove inter body from upper body.

Fig 9: Removing Inter Body From Upper Body
Courtesy of NISSAN MOTOR CO., U.S.A.
Check to see that steel balls are properly positioned in inter body and then remove them.
CAUTION: Be careful not to lose steel balls.
Remove pilot filter from upper body.

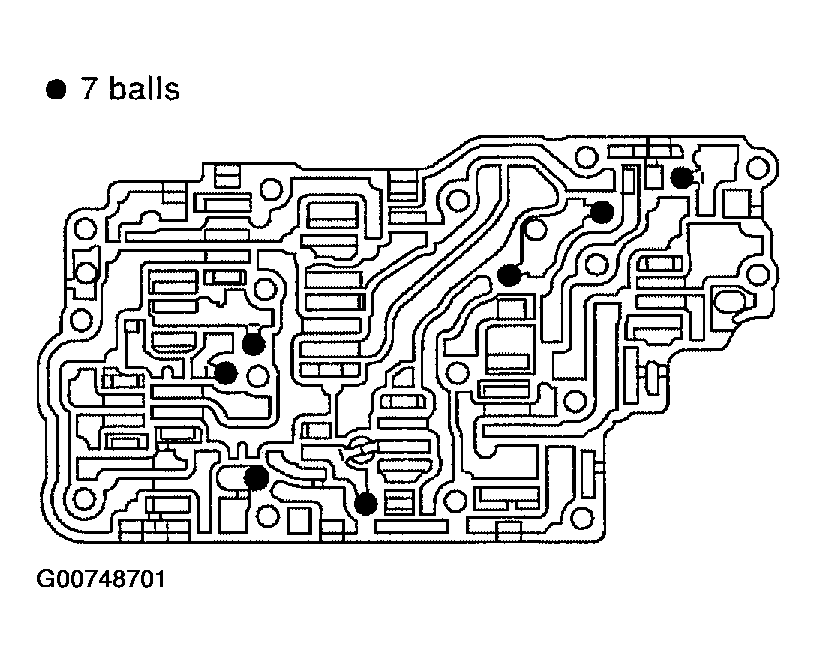

Fig 10: Identifying Steel Balls Positioning (Inter Body)
Courtesy of NISSAN MOTOR CO., U.S.A.
Check to see that steel balls are properly positioned in upper body and then remove them.
CAUTION: Be careful not to lose steel balls.

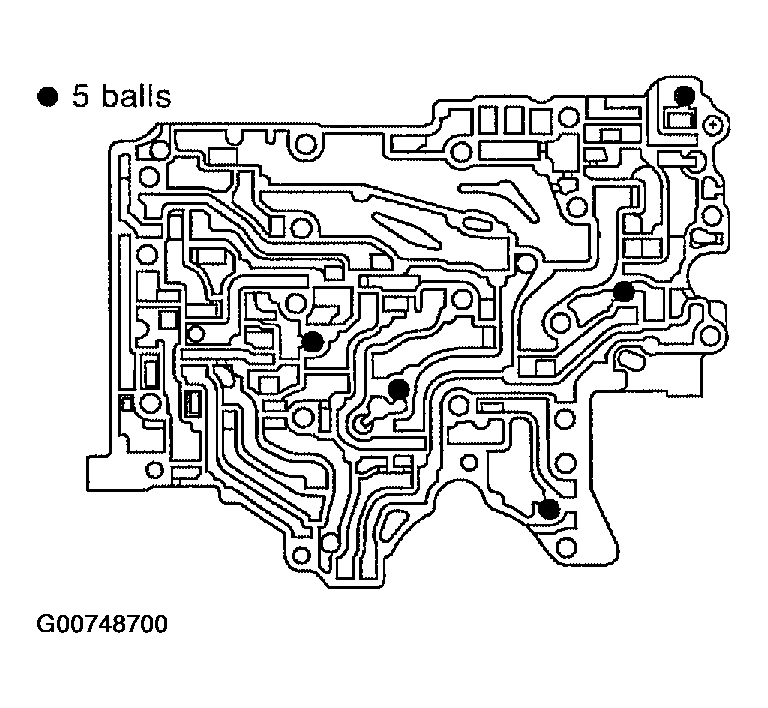

Fig 11: Identifying Steel Balls Positioning (Upper Body)
Courtesy of NISSAN MOTOR CO., U.S.A.
