Band Servo Piston Assembly: Disassembly

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove O/D servo piston retainer fixing bolts.

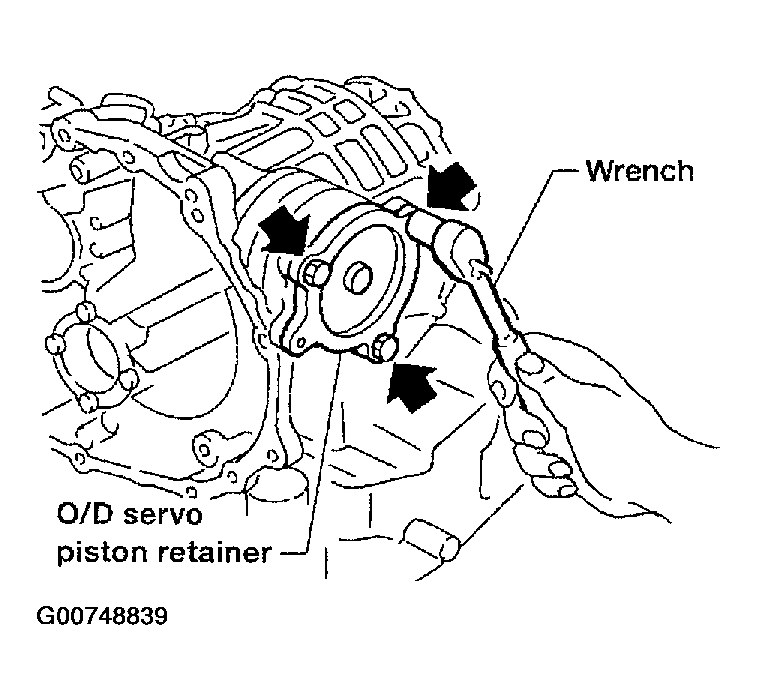

    Fig 1: Removing O/D Servo Piston Retainer Fixing Bolts
    G00748839Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Apply compressed air to oil hole in transaxle case to remove O/D servo piston retainer and band servo piston assembly.

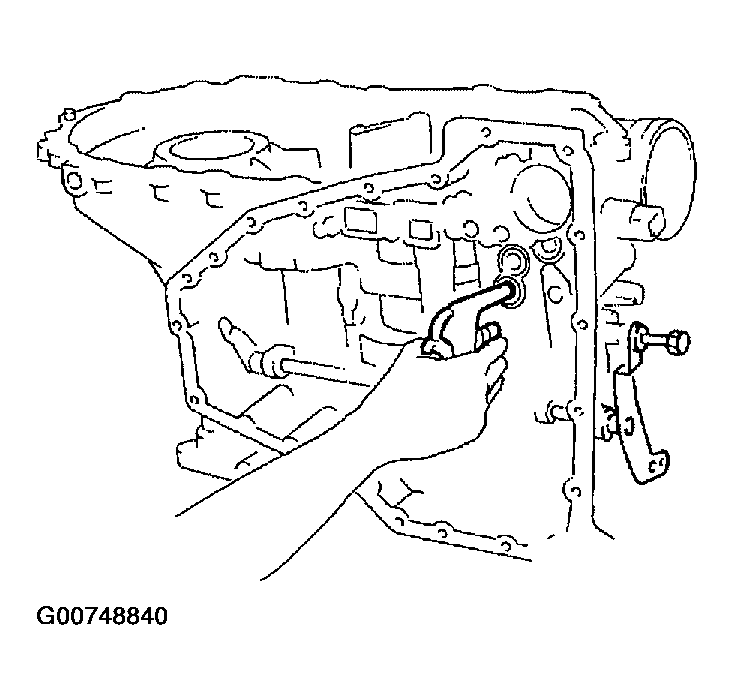

    Fig 2: Removing O/D Servo Piston Retainer And Band Servo Piston Assembly
    G00748840Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Hold band servo piston assembly with a rag or nylon waste.
  3. Remove 2nd servo return spring from transaxle case.
  4. Apply compressed air to oil hole in O/D servo piston retainer to remove O/D servo piston from retainer.
    CAUTION: Hold O/D band servo piston while applying compressed air.

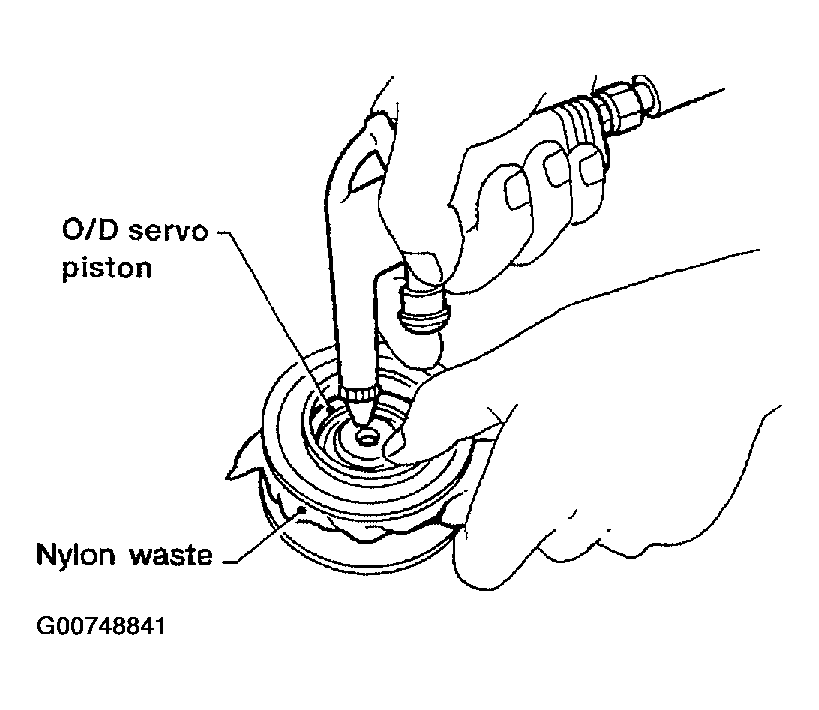

    Fig 3: Removing O/D Servo Piston From Retainer
    G00748841Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove D-ring from O/D servo piston.

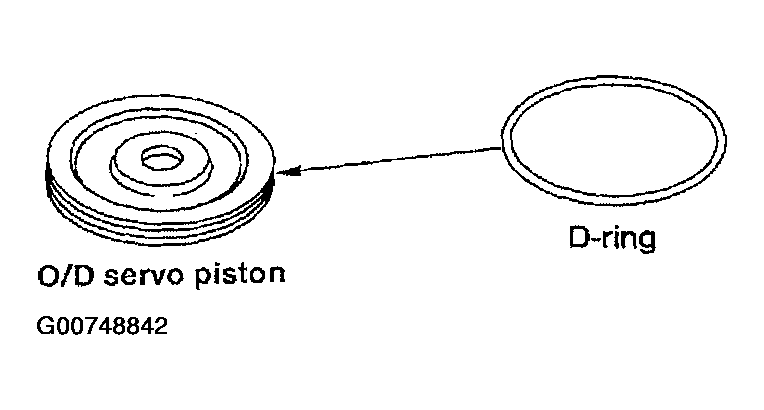

    Fig 4: Removing D-Ring From O/D Servo Piston
    G00748842Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Remove O-rings from O/D servo piston retainer.

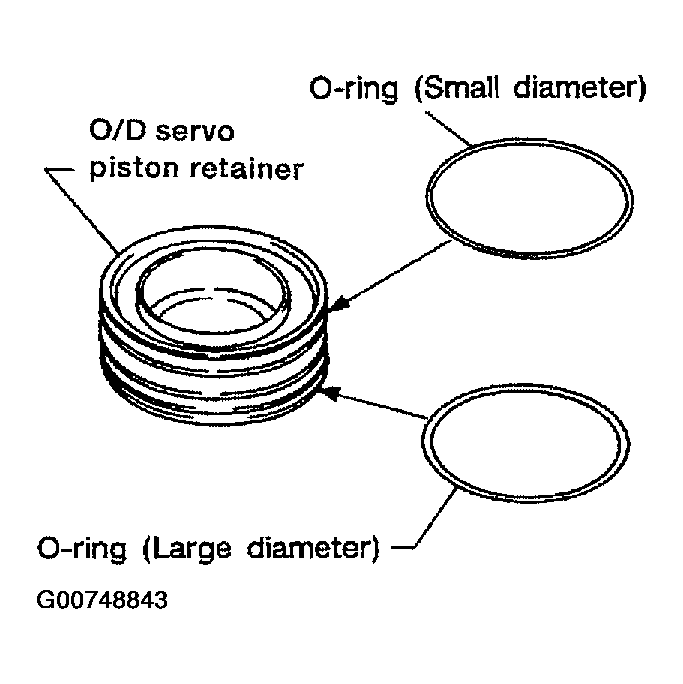

    Fig 5: Removing O-Rings From O/D Servo Piston Retainer
    G00748843Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Remove band servo piston assembly from servo piston retainer by pushing it forward.

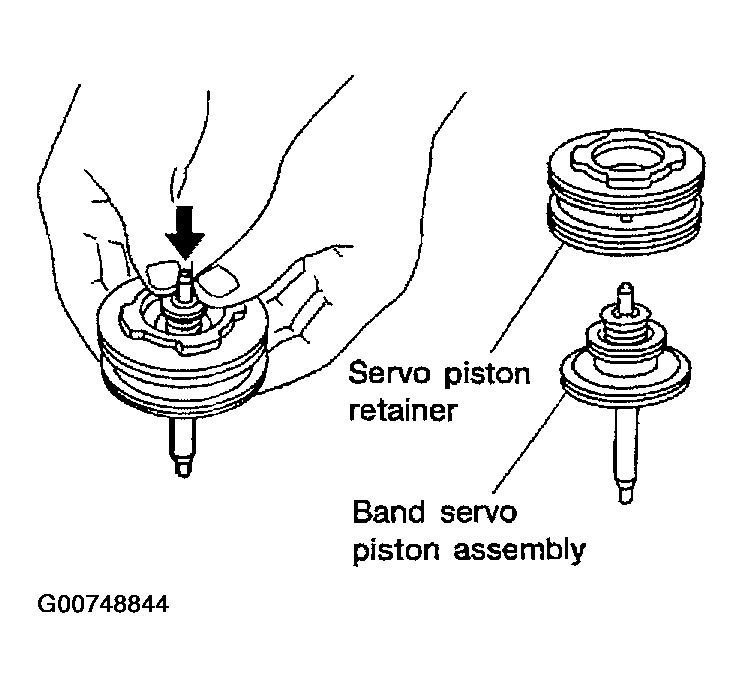

    Fig 6: Removing Band Servo Piston Assembly From Servo Piston Retainer
    G00748844Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Place band servo piston stem end on a wooden block. While pushing spring retainer down, remove E-ring.

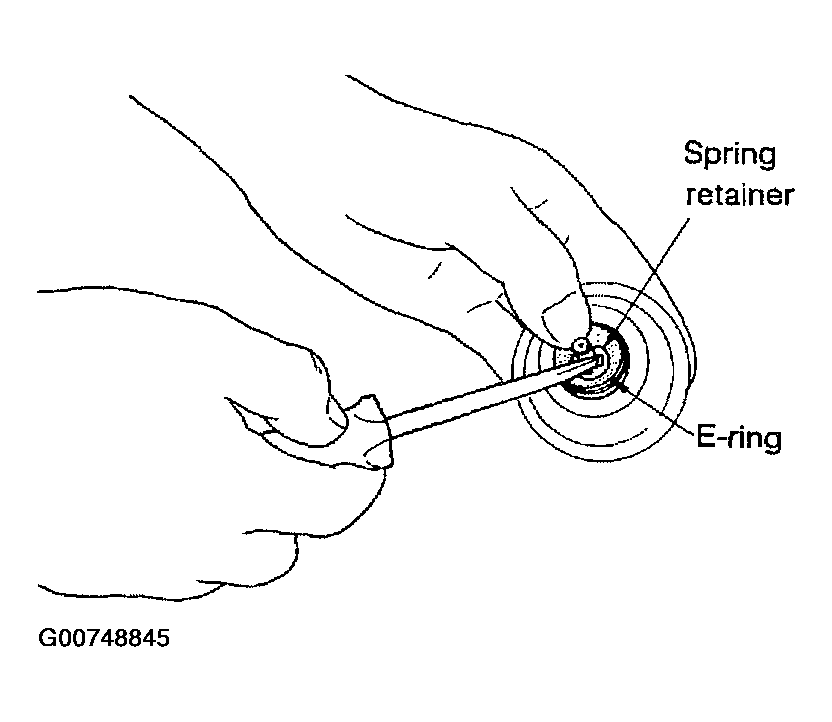

    Fig 7: Removing E-Ring
    G00748845Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Remove spring retainer, O/D servo return spring, band servo thrust washer and band servo piston stem from band servo piston.

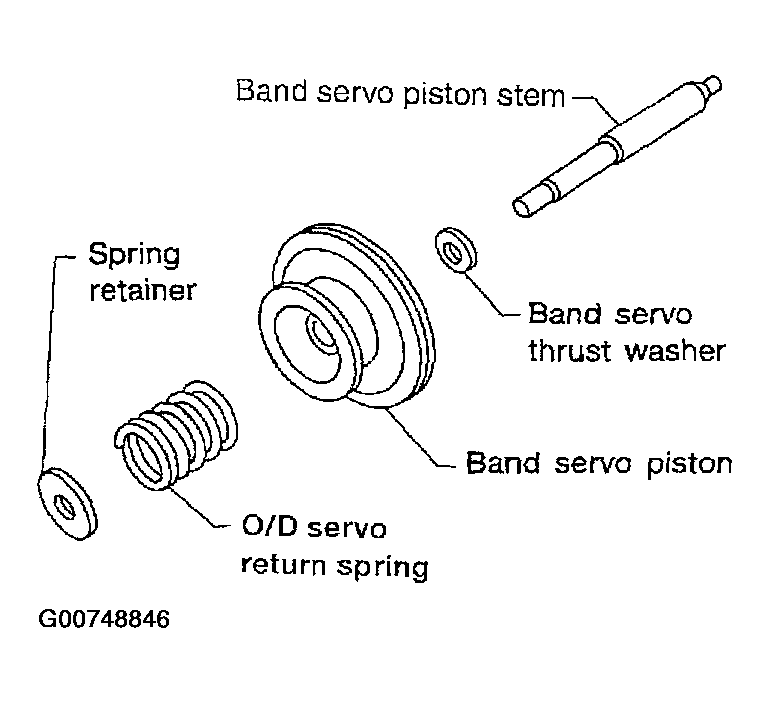

    Fig 8: Removing Spring Retainer, O/D Servo Return Spring, Band Servo Thrust Washer And Band Servo Piston Stem
    G00748846Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Remove O-rings from servo piston retainer.

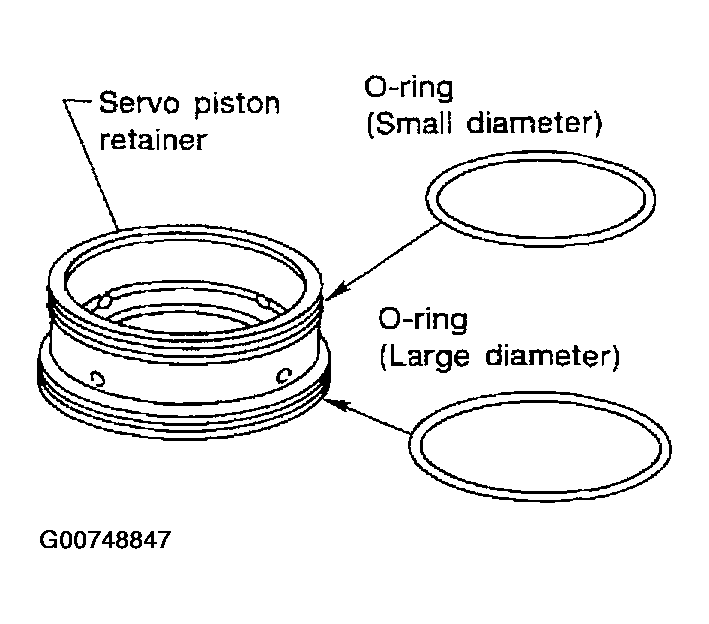

    Fig 9: Removing O-Rings From Servo Piston Retainer
    G00748847Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Remove D-rings from band servo piston.

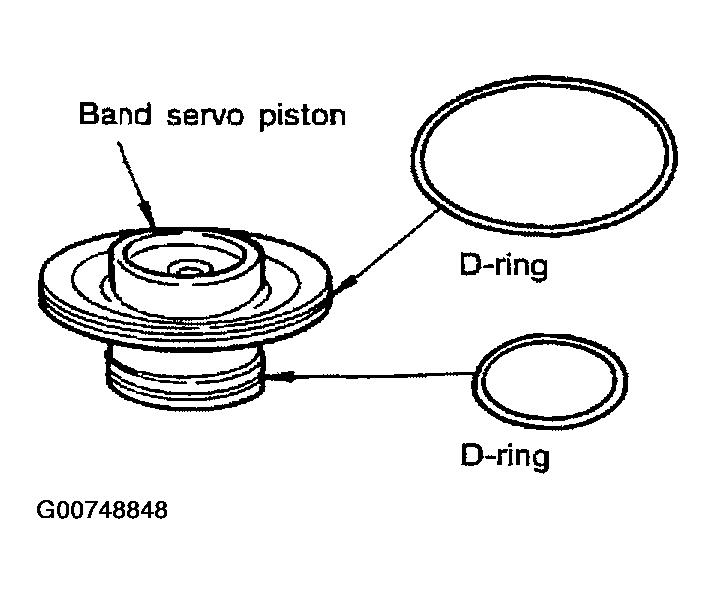

    Fig 10: Removing D-Rings From Band Servo Piston
    G00748848Courtesy of NISSAN MOTOR CO., U.S.A.
