Band Servo Piston Assembly: Assembly

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install D-rings to servo piston retainer.

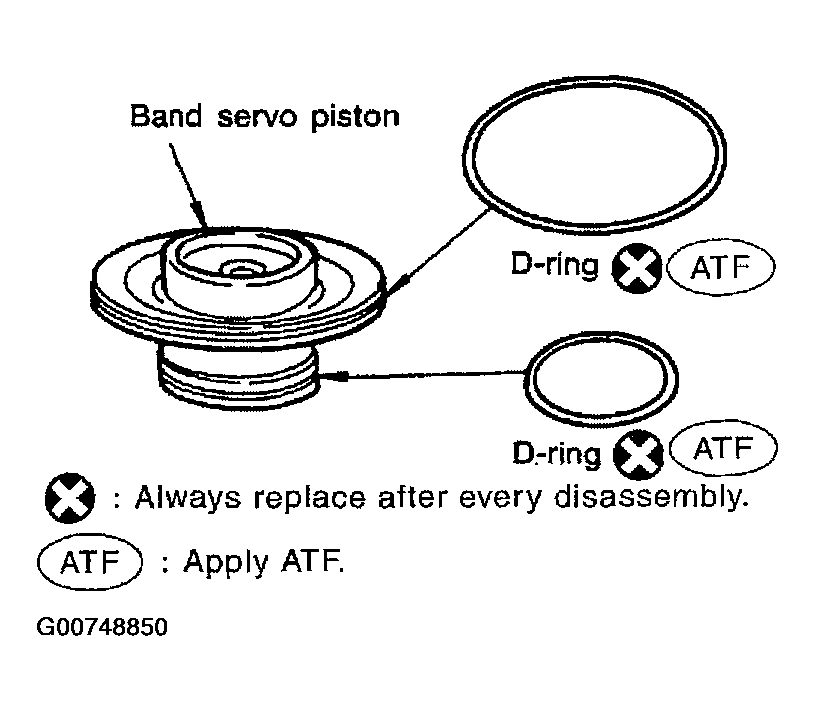

    Fig 1: Installing D-Rings To Servo Piston Retainer
    G00748850Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION:
    • Do not reuse D-rings.
    • Apply ATF to D-rings.
    • Pay attention to position of each D-ring.
  2. Install band servo piston stem, band servo thrust washer, O/D servo return spring and spring retainer to band servo piston.

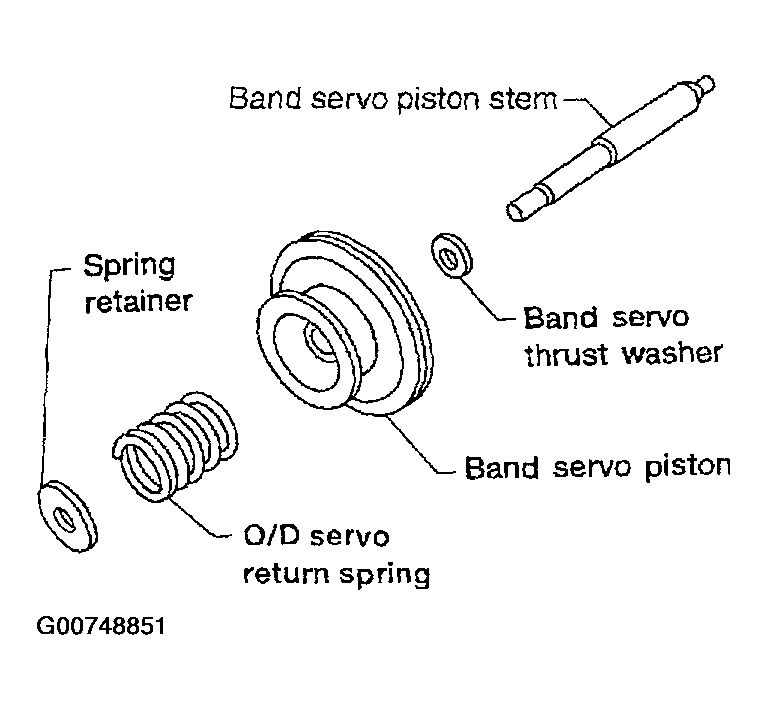

    Fig 2: Installing Band Servo Piston Stem, Band Servo Thrust Washer, O/D Servo Return Spring And Spring Retainer
    G00748851Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Place band servo piston stem end on a wooden block. While pushing spring retainer down, install E-ring.

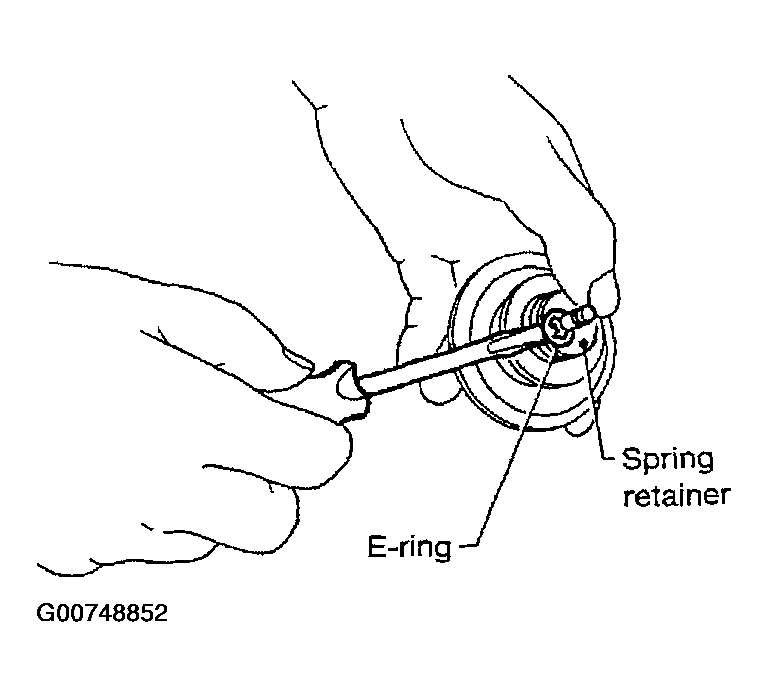

    Fig 3: Installing E-Ring
    G00748852Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install O-rings to O/D servo piston retainer.

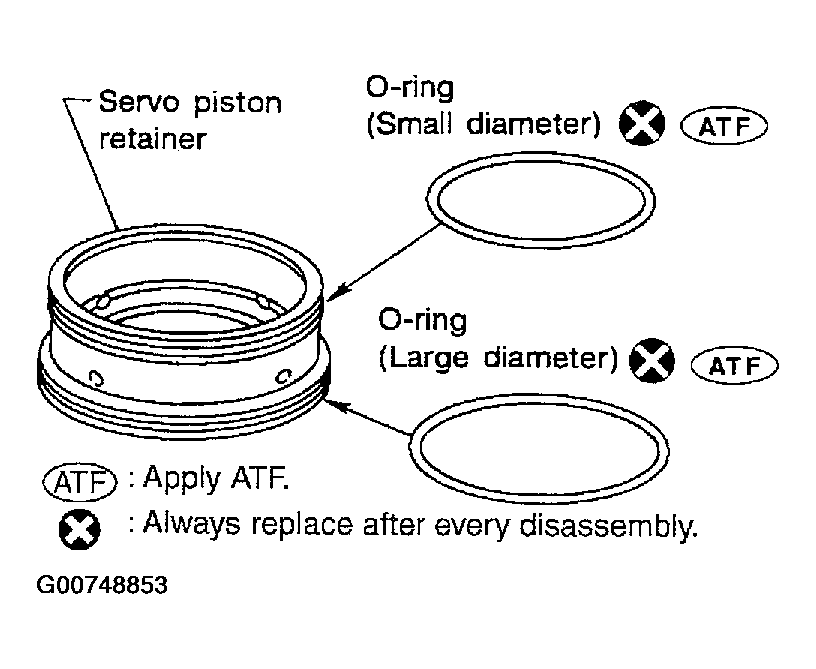

    Fig 4: Installing O-Rings To O/D Servo Piston Retainer
    G00748853Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION:
    • Do not reuse O-rings.
    • Apply ATF to O-rings.
    • Pay attention to position of each O-ring.
  5. Install band servo piston assembly to servo piston retainer by pushing it inward.

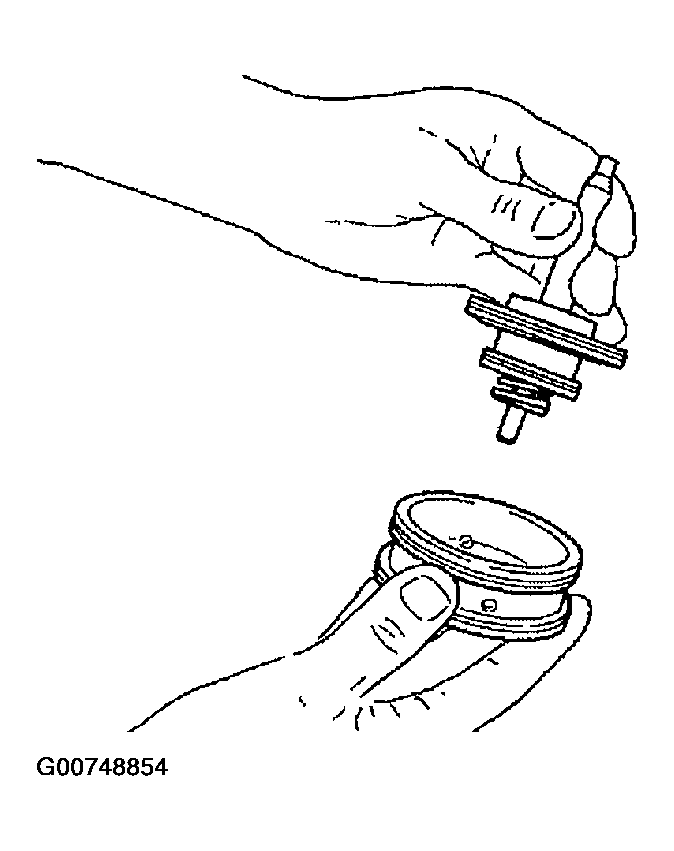

    Fig 5: Installing Band Servo Piston Assembly To Servo Piston Retainer
    G00748854Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Install D-ring to O/D servo piston.

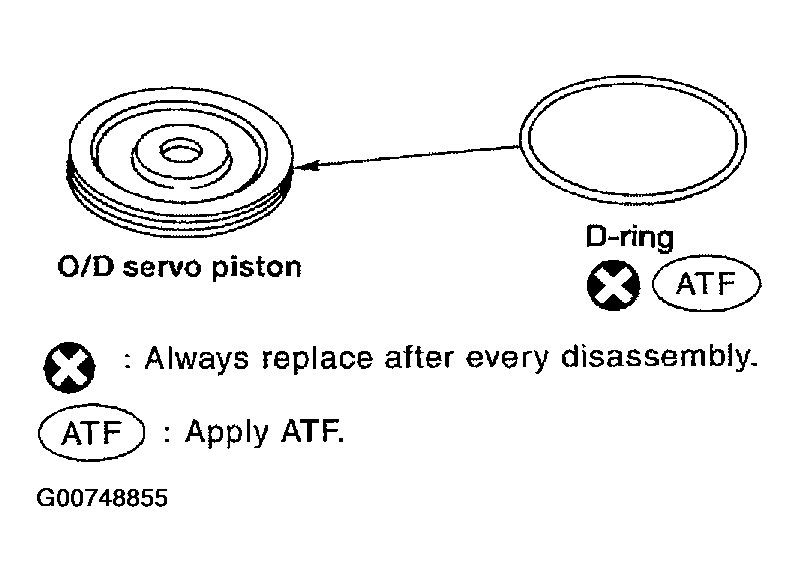

    Fig 6: Installing D-Ring To O/D Servo Piston
    G00748855Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION:
    • Do not reuse D-ring.
    • Apply ATF to D-ring.
  7. Install O-rings to O/D servo piston retainer.

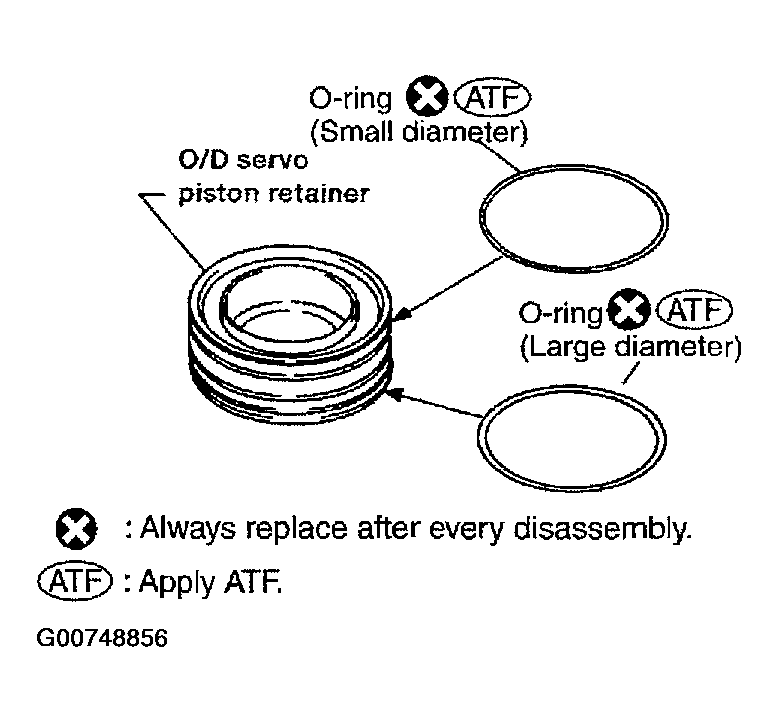

    Fig 7: Installing O-Rings To O/D Servo Piston Retainer
    G00748856Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION:
    • Do not reuse O-rings.
    • Apply ATF to O-rings.
    • Pay attention to position of each O-ring.
  8. Install O/D servo piston to O/D servo piston retainer.

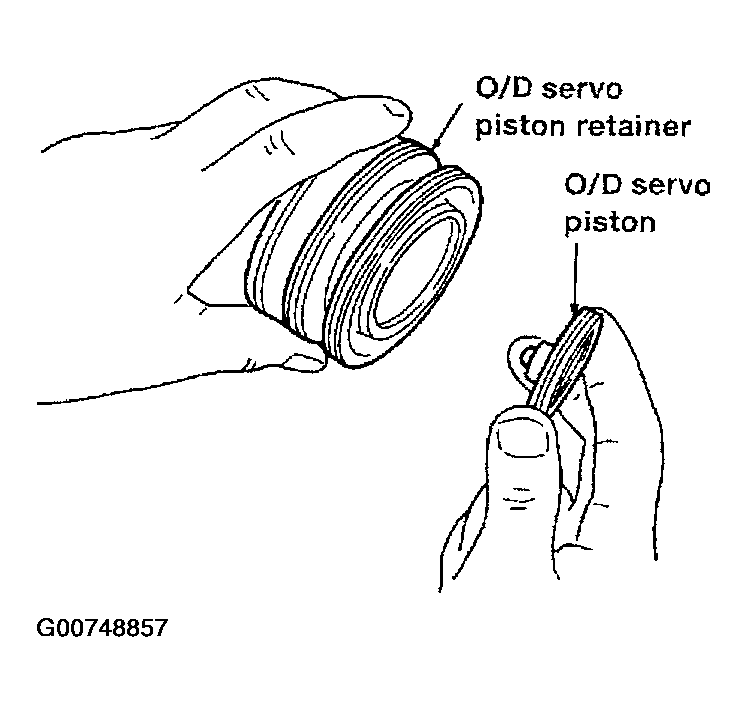

    Fig 8: Installing O/D Servo Piston To O/D Servo Piston Retainer
    G00748857Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Install band servo piston assembly and 2nd servo return spring to transaxle case.

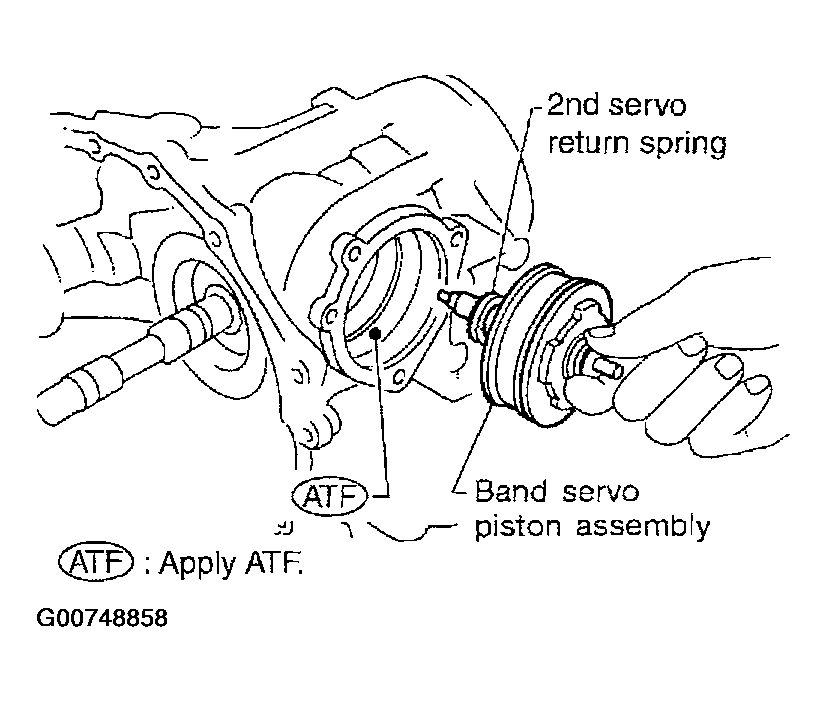

    Fig 9: Installing Band Servo Piston Assembly And 2Nd Servo Return Spring To Transaxle Case
    G00748858Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Apply ATF to O-ring of band servo piston assembly and transaxle case.
  10. Install O/D servo piston assembly to transaxle case.

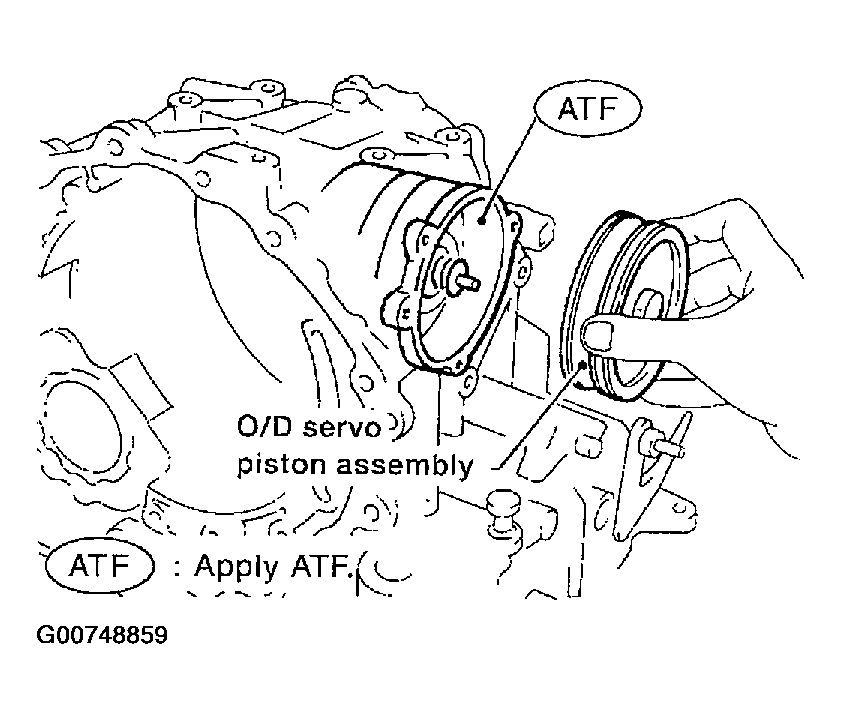

    Fig 10: Installing O/D Servo Piston Assembly To Transaxle Case
    G00748859Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Apply ATF to O-ring of O/D servo piston assembly and transaxle case.
  11. Install O-ring to O/D servo piston retainer.
    CAUTION:
    • Do not reuse O-ring.
    • Apply ATF to O-ring.
  12. Install O/D servo piston retainer to transaxle case.

    Refer to "COMPONENTS ".

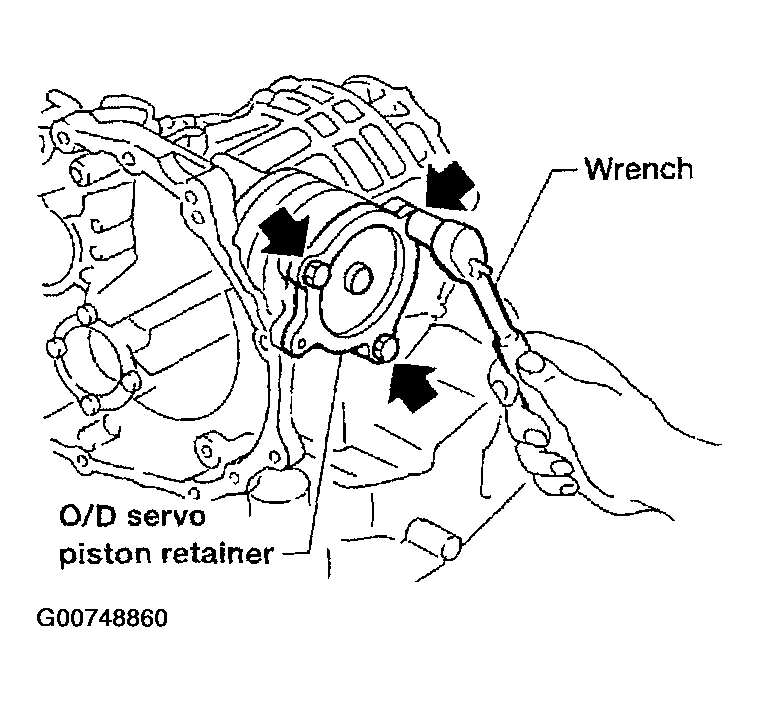

    Fig 11: Installing O/D Servo Piston Retainer To Transaxle Case
    G00748860Courtesy of NISSAN MOTOR CO., U.S.A.
