Inspection After Removal

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

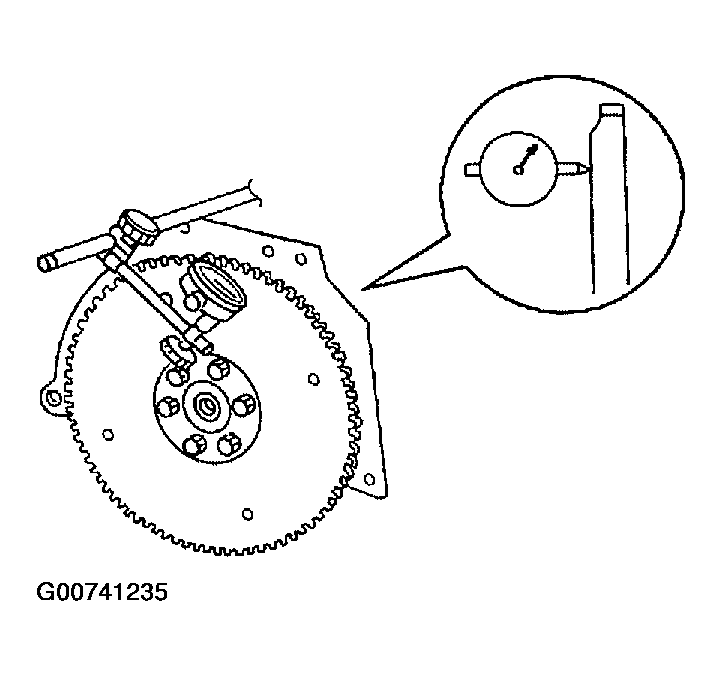

Drive plate runout
CAUTION: Do not allow any magnetic materials to contact the ring gear teeth.

Maximum allowable runout:
If this runout is out of allowance, replace drive plate and ring gear.

Fig 1: Checking Drive Plate Runout
Courtesy of NISSAN MOTOR CO., U.S.A.

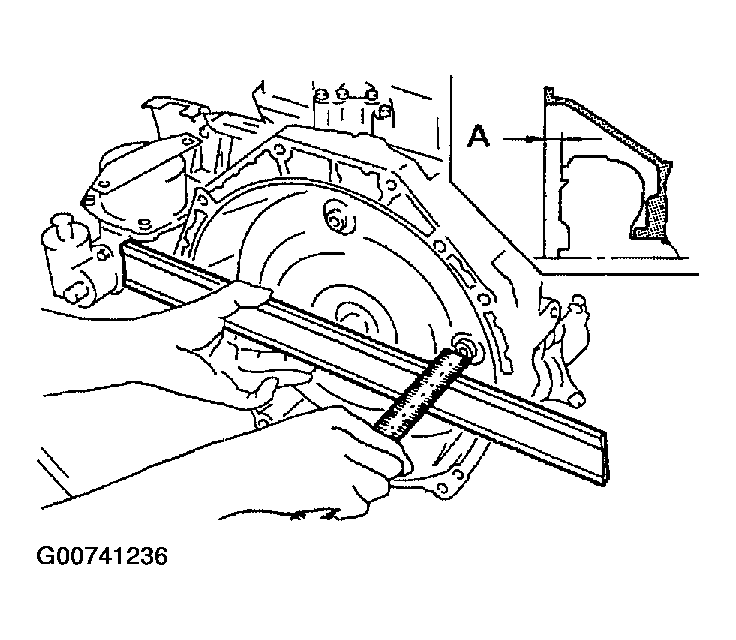

When connecting torque converter to transaxle, measure distance "A" to be certain that they are correctly assembled.
Distance "A": 14 mm (0.55 in) or more

Fig 2: Checking Torque Converter Dimension

Courtesy of NISSAN MOTOR CO., U.S.A.
