Overrun Clutch Operating Conditions

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

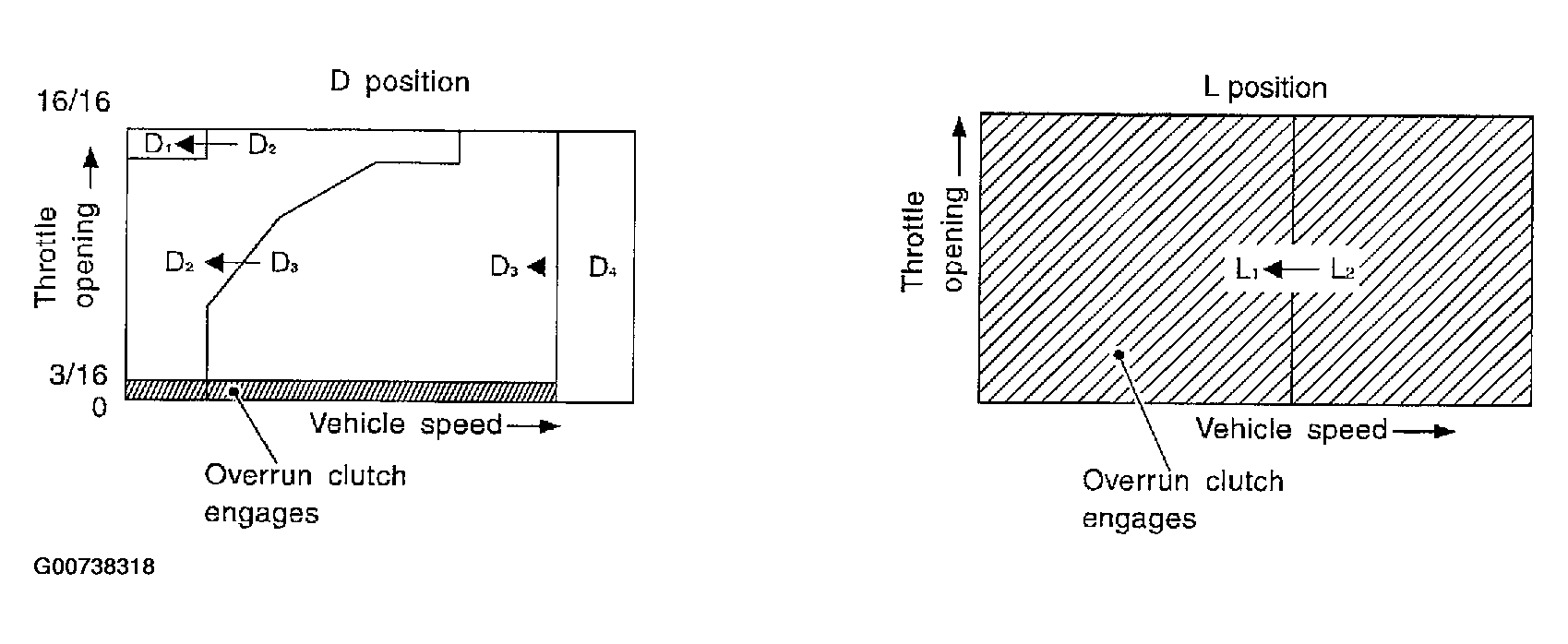

Fig 1: Identifying Overrun Clutch Operating Conditions
G00738318Courtesy of NISSAN MOTOR CO., U.S.A.

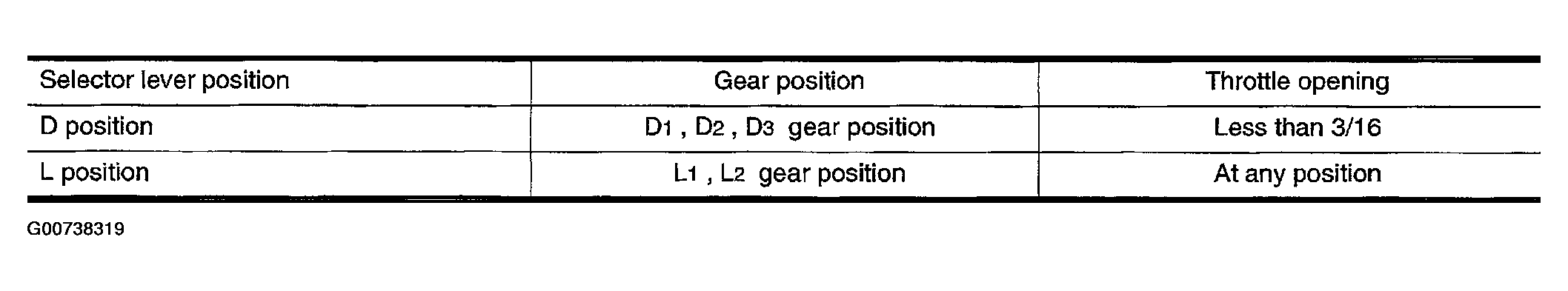

Fig 2: Selector Lever/Gear Positions Chart
G00738319Courtesy of NISSAN MOTOR CO., U.S.A.
