Normal Control

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

The line pressure to throttle opening characteristics is set for suitable clutch operation.

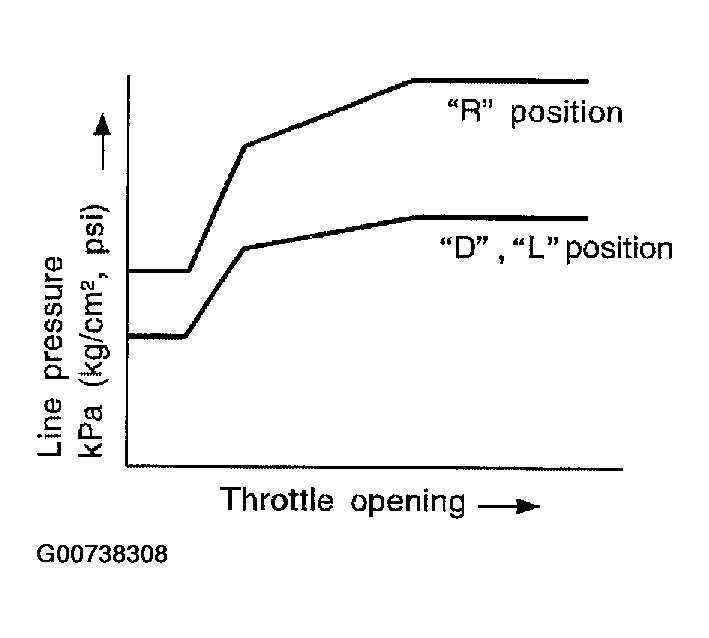

Fig 1: Line Pressure Control Graph - Normal Control
G00738308Courtesy of NISSAN MOTOR CO., U.S.A.
