Park/Neutral Position (PNP) Switch Adjustment

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove control cable from manual shaft.
  2. Set manual shaft in N position.
  3. Loosen park/neutral position (PNP) switch fixing bolts.

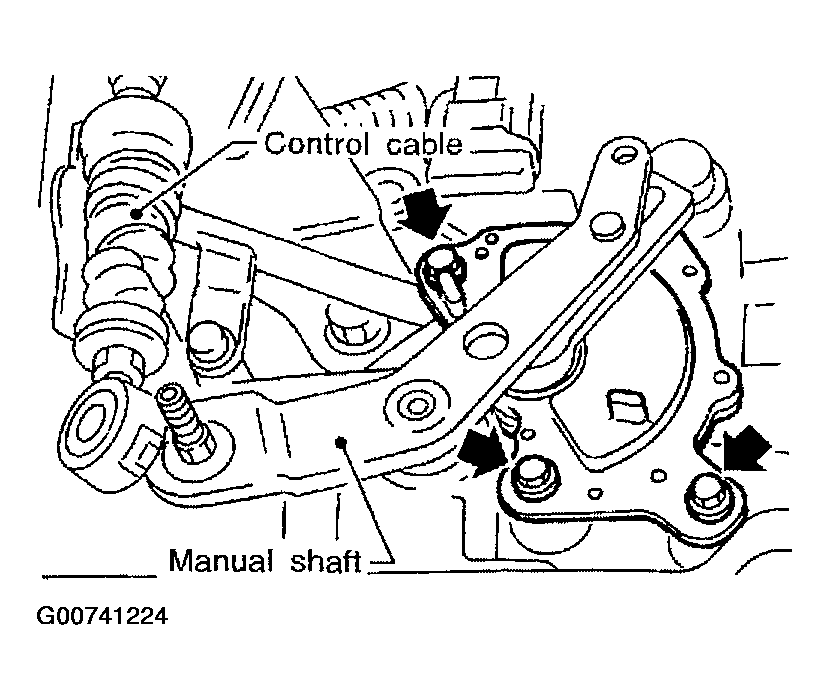

    Fig 1: Removing Control Cable From Manual Shaft
    G00741224Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Insert pin into adjustment holes in both park/neutral position (PNP) switch and manual shaft as near vertical as possible.
  5. Installation is in the reverse order of removal.
  6. Check continuity of park/neutral position (PNP) switch. Refer to "DIAGNOSTIC PROCEDURE ".

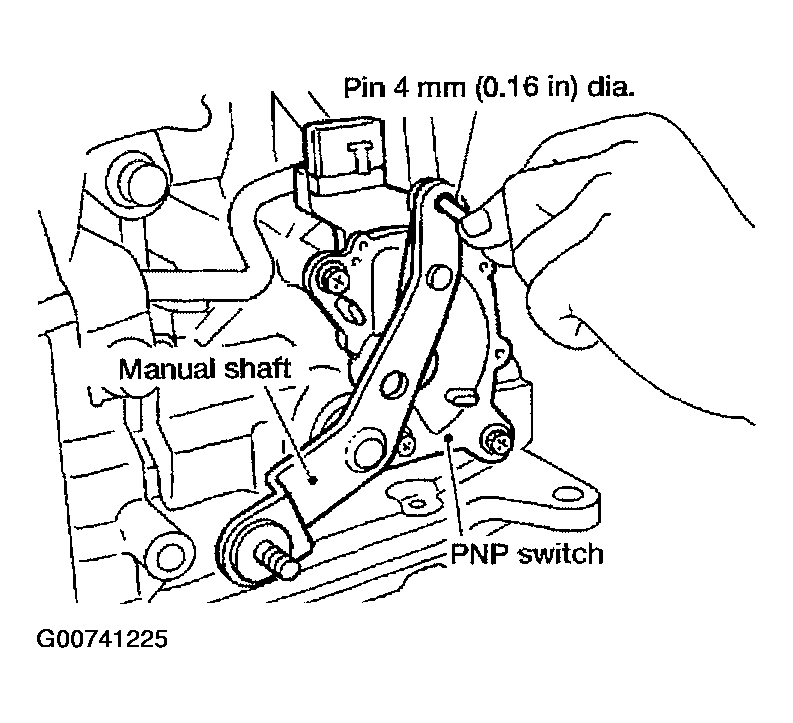

Fig 2: Inserting Pin Into Adjustment Holes In Park/Neutral Position (PNP) Switch And Manual Shaft
G00741225Courtesy of NISSAN MOTOR CO., U.S.A.
