ATF Cooler Valve: Notes

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Refer to the figure for ATF cooler valve and hoses removal and installation information.

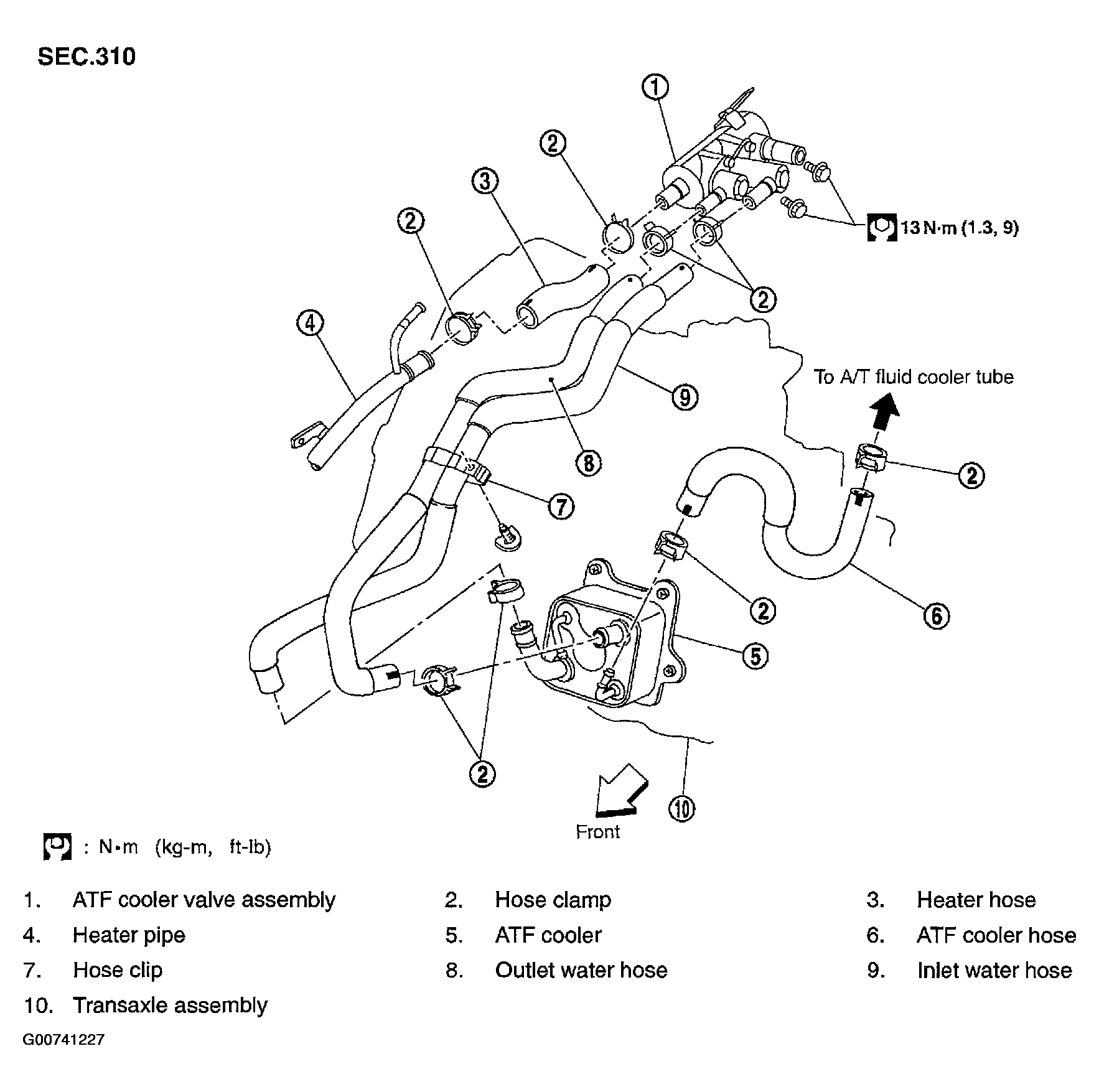

Fig 1: Identifying ATF Cooler Valve
G00741227Courtesy of NISSAN MOTOR CO., U.S.A.
