CONSULT-II Setting Procedure

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

For details, refer to the separate "CONSULT-II Operations Manual".

Turn ignition switch OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to data link connector, which is located in instrument lower panel on driver side.

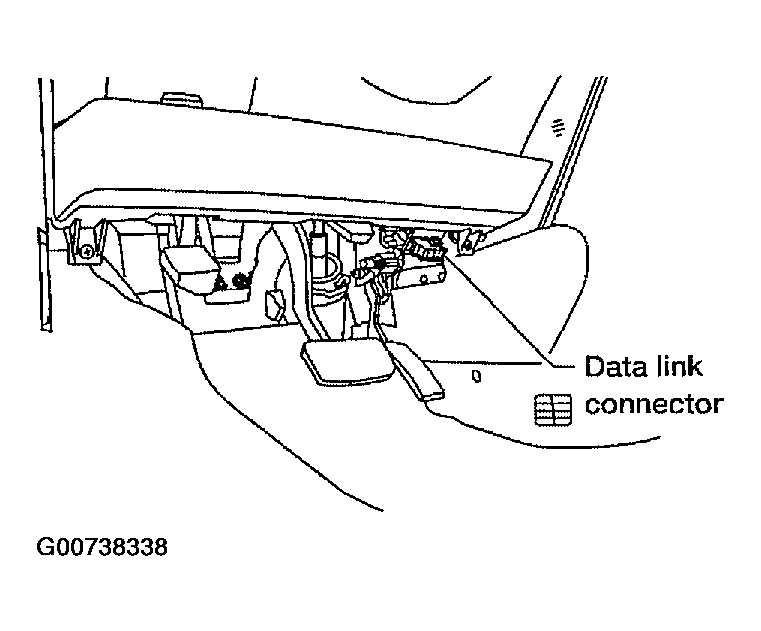

Fig 1: Identifying Data Link Connector Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch to ON position. (Do not start engine.)

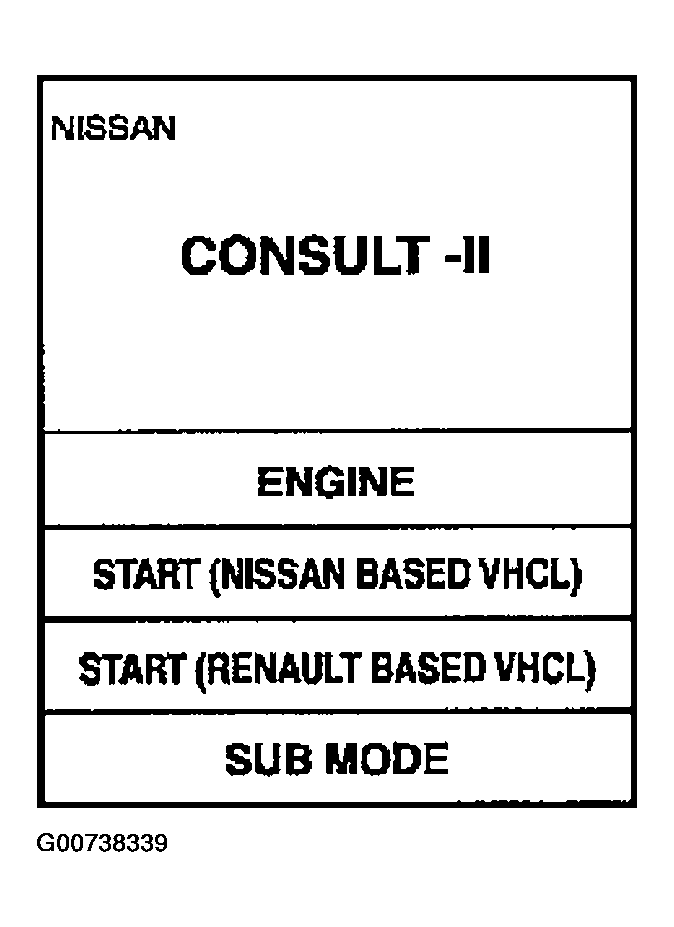

Touch "START (NISSAN BASED VHCL)".

Fig 2: CONSULT-II Display - Touch START (NISSAN BASED VHCL)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "A/T".
If "A/T" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

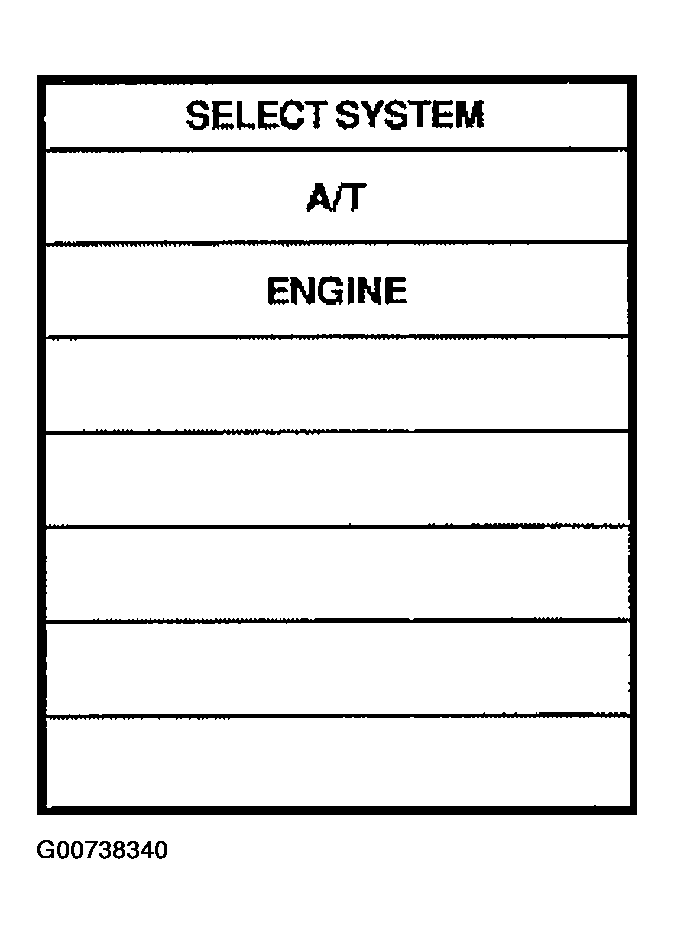

Fig 3: CONSULT-II Display - SELECT SYSTEM
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "DTC WORK SUPPORT".

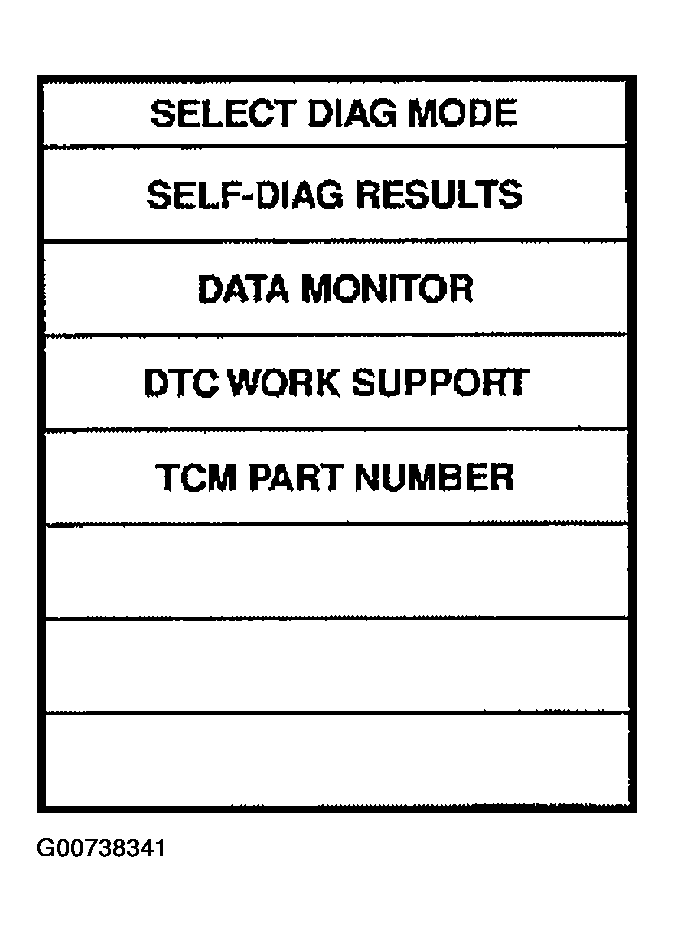

Fig 4: CONSULT-II Display - SELECT DIAG MODE
Courtesy of NISSAN MOTOR CO., U.S.A.

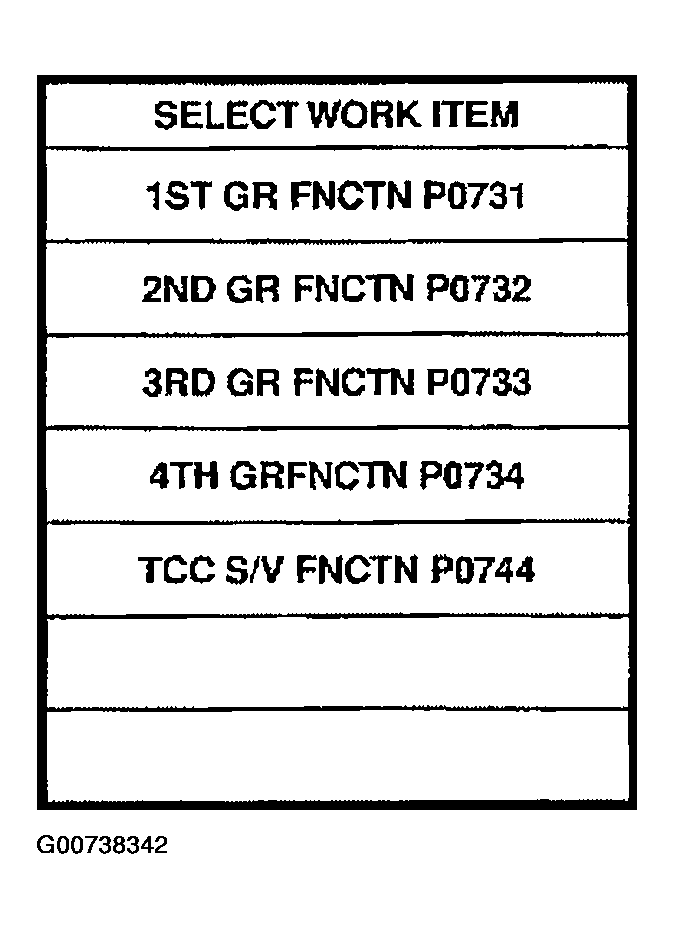

Touch select item menu (1ST, 2ND, etc.).

Fig 5: CONSULT-II Display - SELECT WORK ITEM
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START".

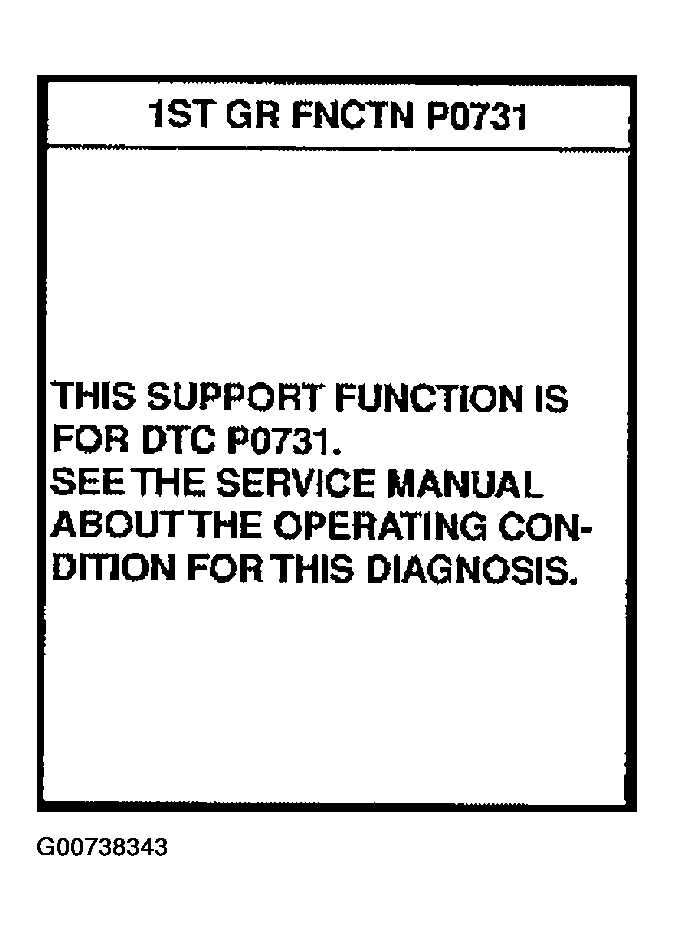

Fig 6: CONSULT-II Display - 1ST GR FNCTN P0731 (1 Of 9)
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform driving test according to "DTC CONFIRMATION PROCEDURE " in "TROUBLE DIAGNOSIS FOR DTC".

Fig 7: CONSULT-II Display - 1ST GR FNCTN P0731 (2 Of 9)
Courtesy of NISSAN MOTOR CO., U.S.A.

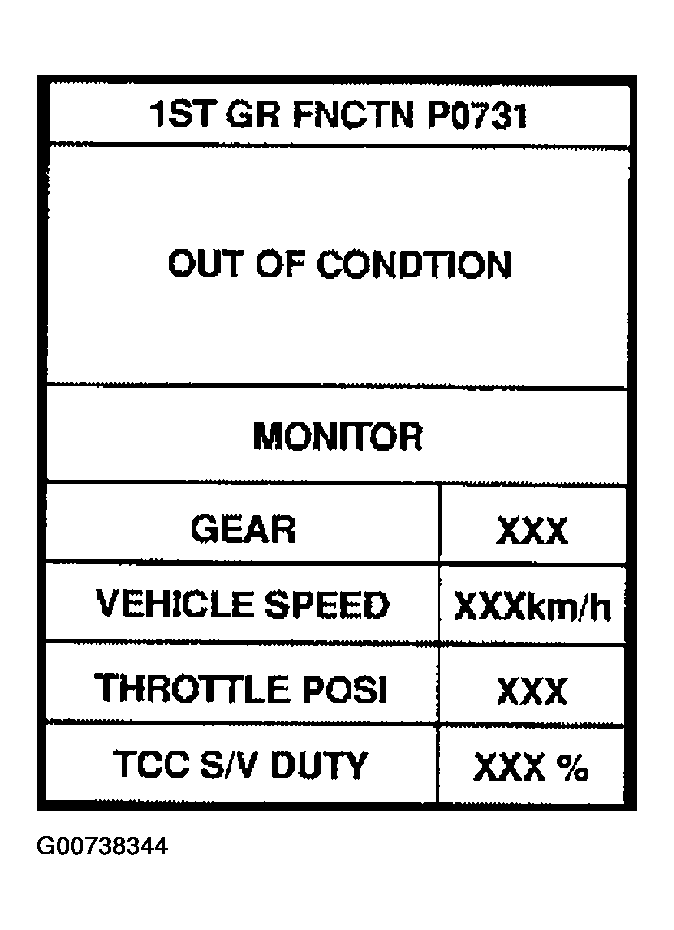

- When testing conditions are satisfied, CONSULT-II screen changes from "OUT OF CONDITION" to "TESTING" .

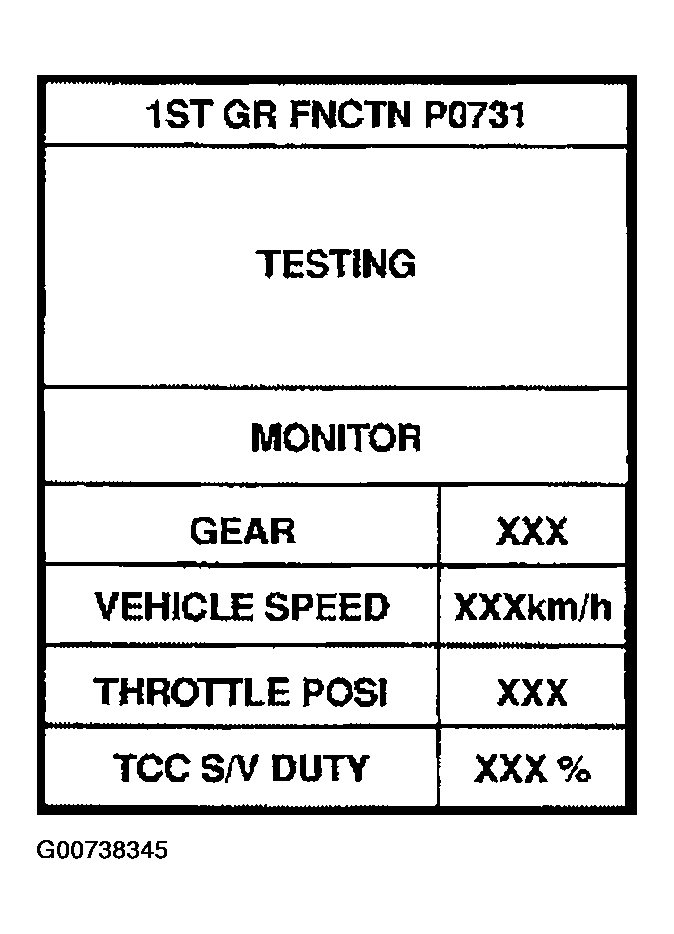

  Fig 8: CONSULT-II Display - 1ST GR FNCTN P0731 (3 Of 9)
  Courtesy of NISSAN MOTOR CO., U.S.A.

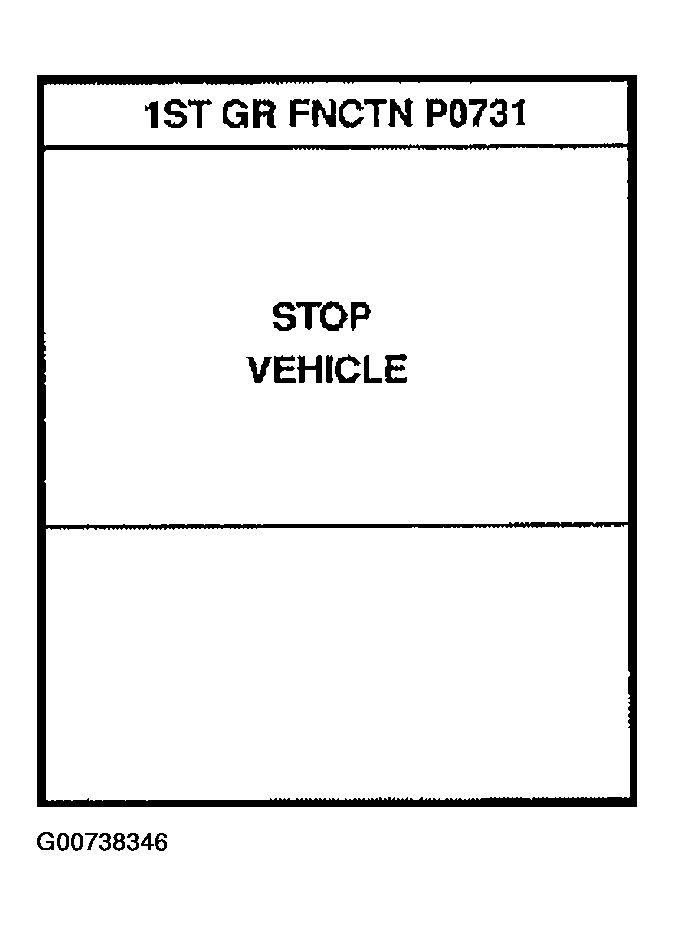

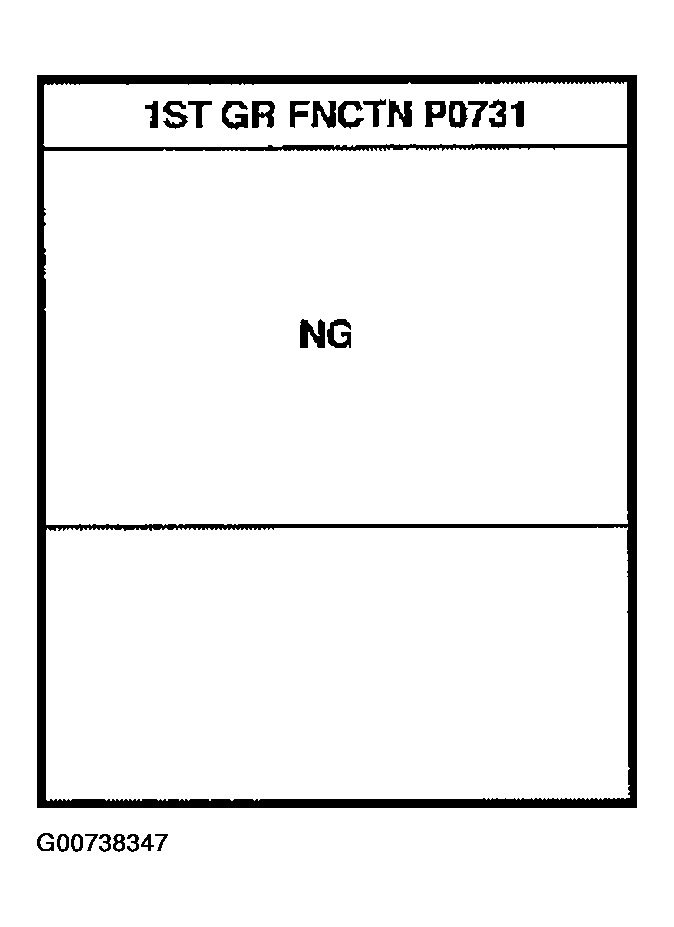

Stop vehicle. If "NG" appears on the screen, malfunction may exist. Go to "DIAGNOSTIC PROCEDURE".

Fig 9: CONSULT-II Display - 1ST GR FNCTN P0731 (4 Of 9)
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: CONSULT-II Display - 1ST GR FNCTN P0731 (5 Of 9)
Courtesy of NISSAN MOTOR CO., U.S.A.

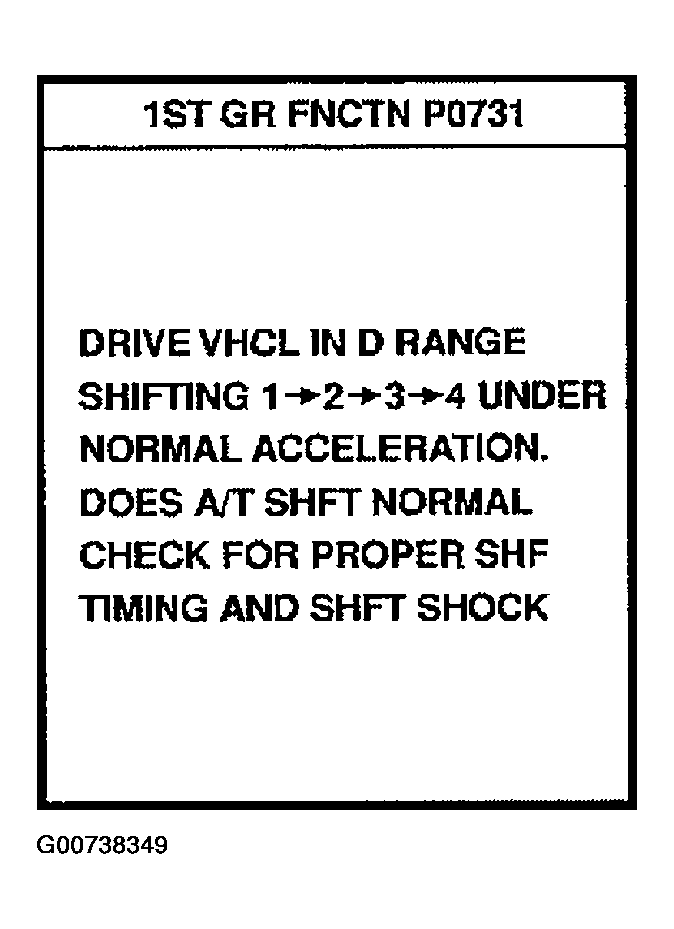

Perform test drive to check gear shift feeling in accordance with instructions displayed.

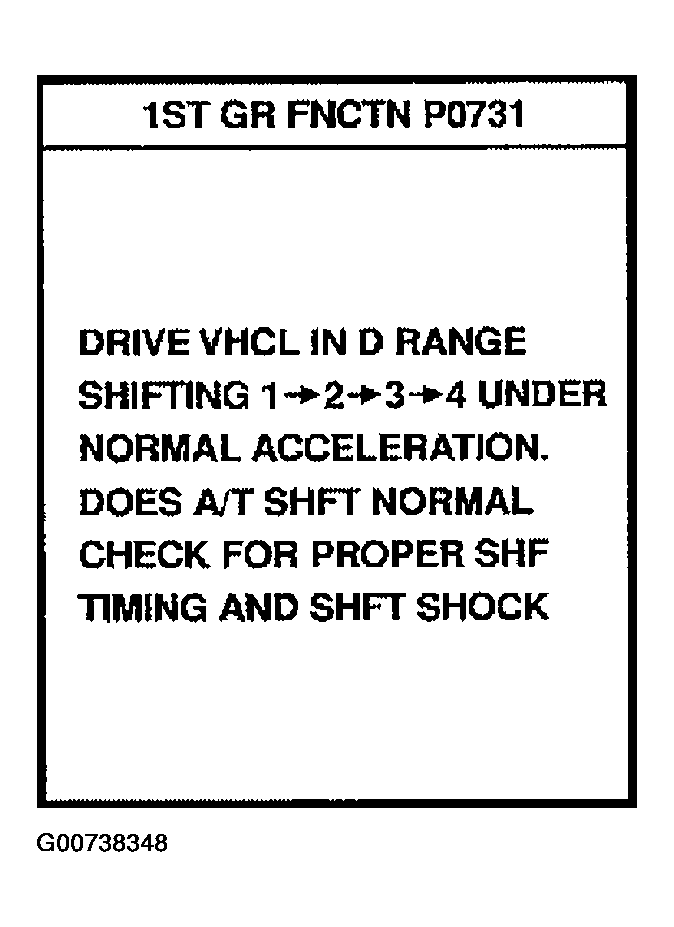

Fig 11: CONSULT-II Display - 1ST GR FNCTN P0731 (6 Of 9)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "YES" or "NO"

Fig 12: CONSULT-II Display - 1ST GR FNCTN P0731 (7 Of 9)
Courtesy of NISSAN MOTOR CO., U.S.A.

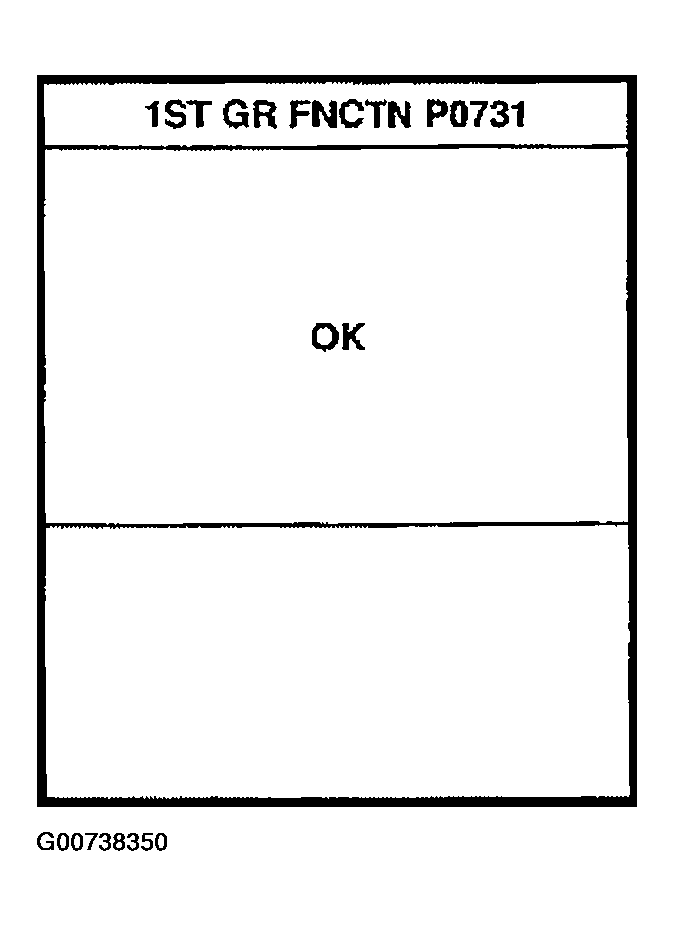

CONSULT-II procedure ended.

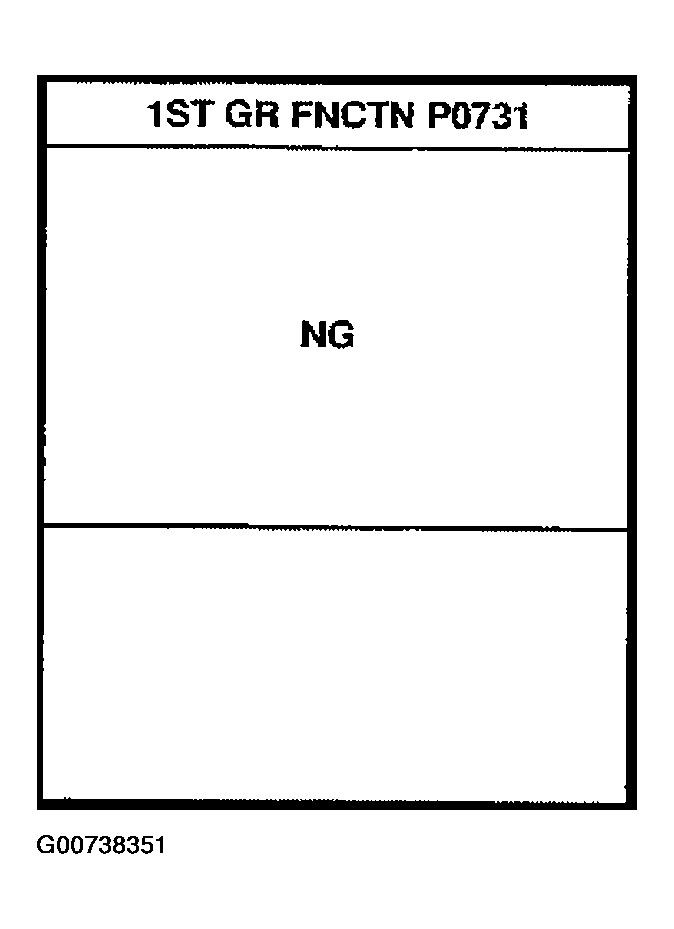

If "NG" appears on the scene, a malfunction may exist. Go to "DIAGNOSTIC PROCEDURE ".

Fig 13: CONSULT-II Display - 1ST GR FNCTN P0731 (8 Of 9)
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: CONSULT-II Display - 1ST GR FNCTN P0731 (9 Of 9)
Courtesy of NISSAN MOTOR CO., U.S.A.
