Diagnostic Procedure: Notes

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHECK CAN COMMUNICATION CIRCUIT
With CONSULT-II
1. Turn ignition switch to "ON" position. (Do not start engine.)

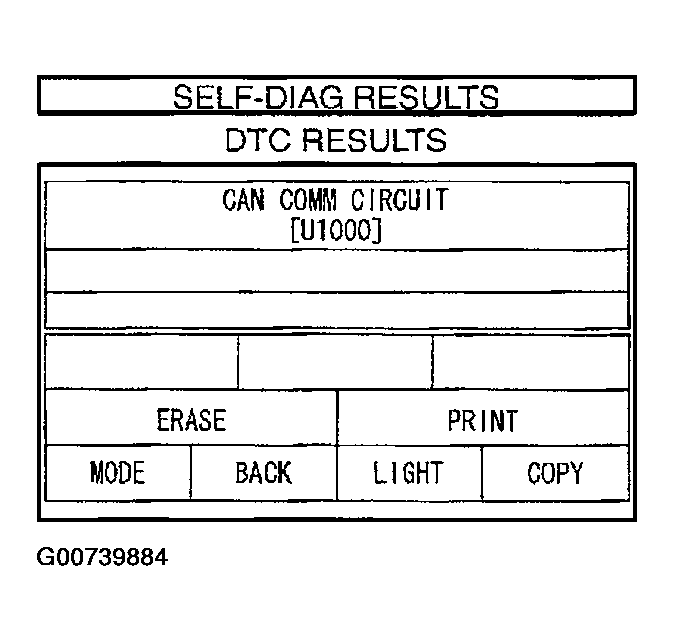

  Fig 1: CONSULT-II Display - SELF DIAG RESULTS
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Select "DATA MONITOR" mode for "A/T" with CONSULT-II.
3. The "CAN COMM CIRCUIT" is detected.
Yes or NO
1. Yes: Print out CONSULT-II screen, GO TO 2.
2. NO: INSPECTION END
CHECK CAN COMMUNICATION SIGNALS
With CONSULT-II
1. Turn ignition switch to "ON" position. (Do not start engine.)
2. Select "CAN DIAG SUPPORT MNTR" in "DATA MONITOR" mode for "A/T" with CONSULT-II.
1. : Print out CONSULT-II screen, go to CAN COMMUNICATION .
