With Consult-II

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON and select "DATA MONITOR" mode for "ENGINE" with CONSULT-II.

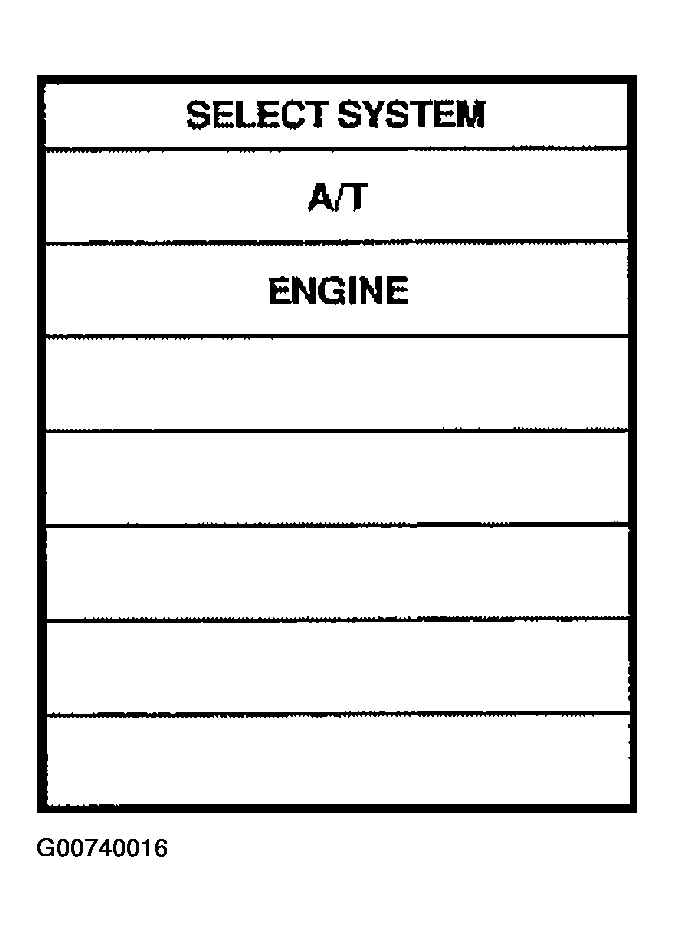

    Fig 1: CONSULT-II Display - SELECT SYSTEM
    G00740016Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Start engine.

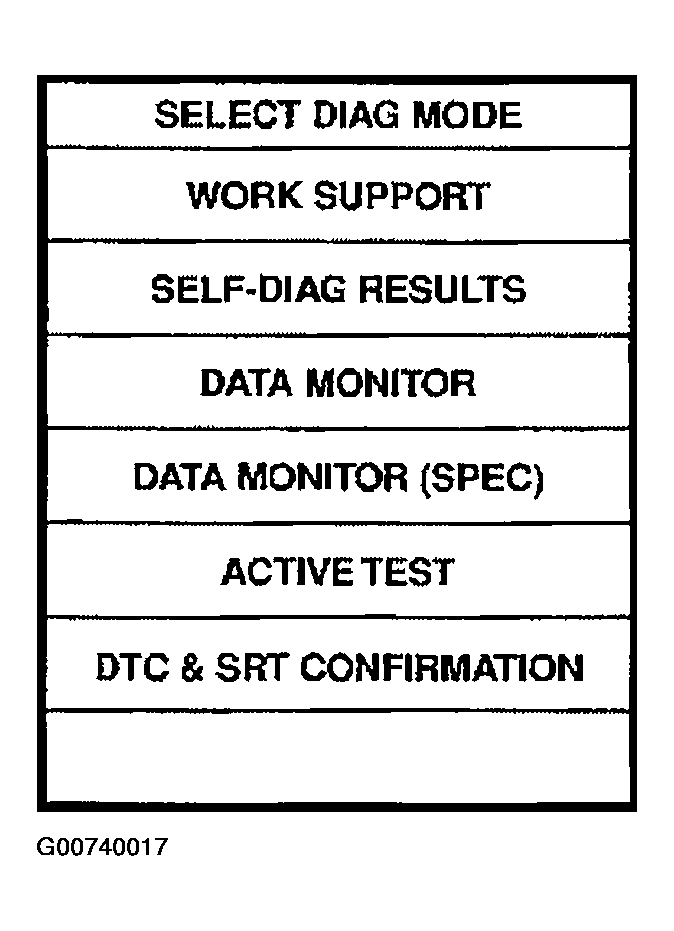

    Fig 2: CONSULT-II Display - SELECT DIAG MODE
    G00740017Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Drive vehicle in D position and allow the transmission to shift 1 --> 2 ("GEAR").
