With Consult-II

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "ON" and select "DATA MONITOR" mode for "ENGINE" with CONSULT-II.

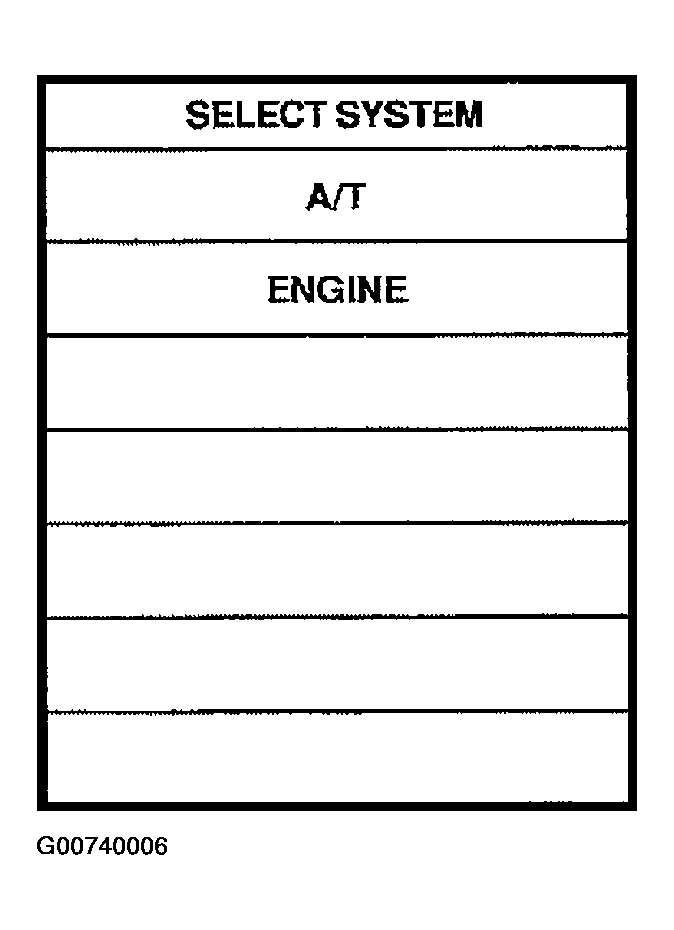

    Fig 1: CONSULT-II Display - SELECT SYSTEM
    G00740006Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Depress accelerator pedal completely and wait at least 5 seconds.

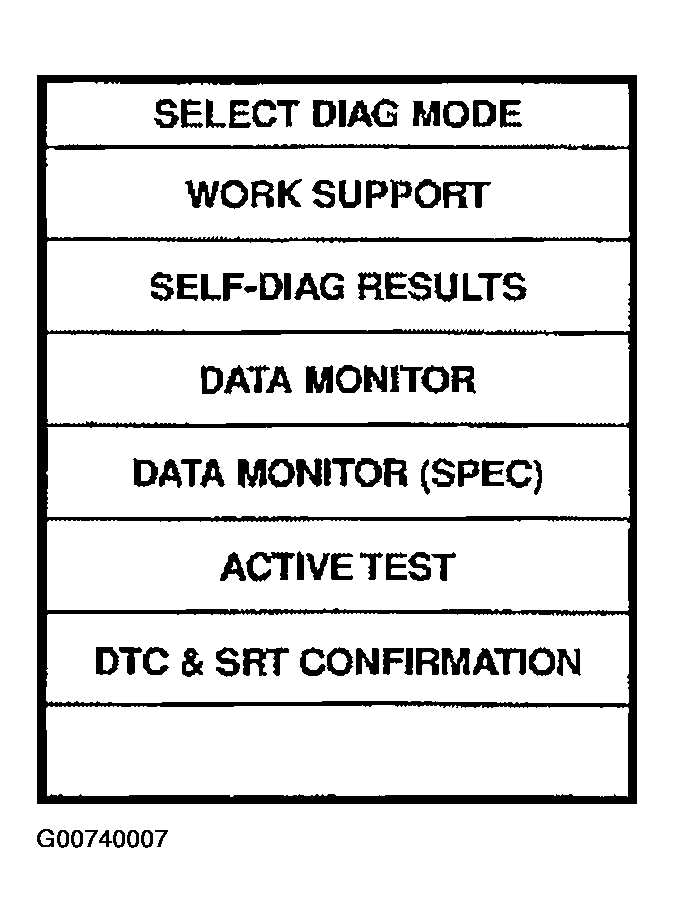

    Fig 2: CONSULT-II Display - SELECT DIAG MODE
    G00740007Courtesy of NISSAN MOTOR CO., U.S.A.
