Wiring Diagram - AT-TCCSIG

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For references to PG-POWER, see GROUND DISTRIBUTION & POWER DISTRIBUTION .

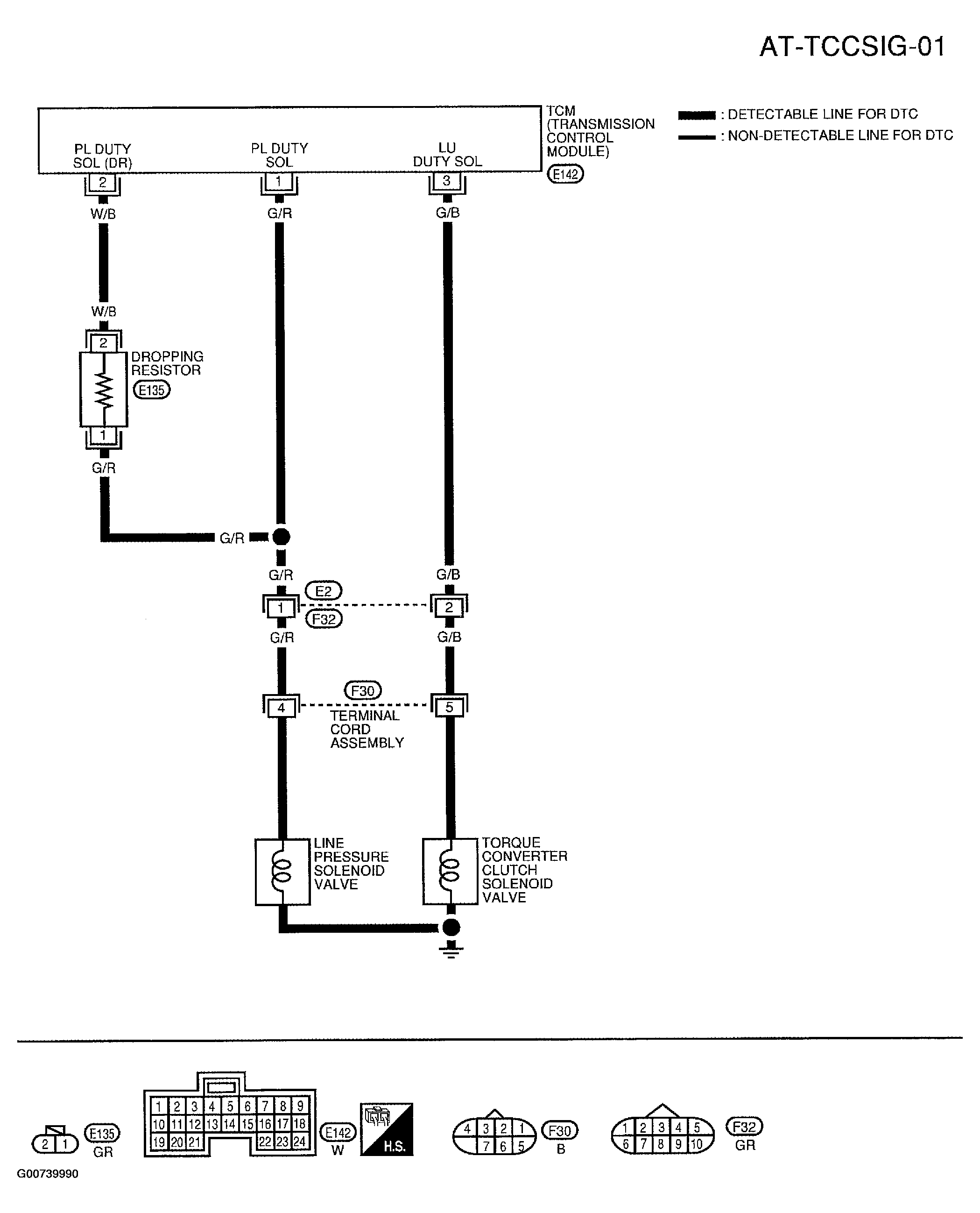

Fig 1: AT-TCCSIG-01 - Wiring Diagram
G00739990Courtesy of NISSAN MOTOR CO., U.S.A.

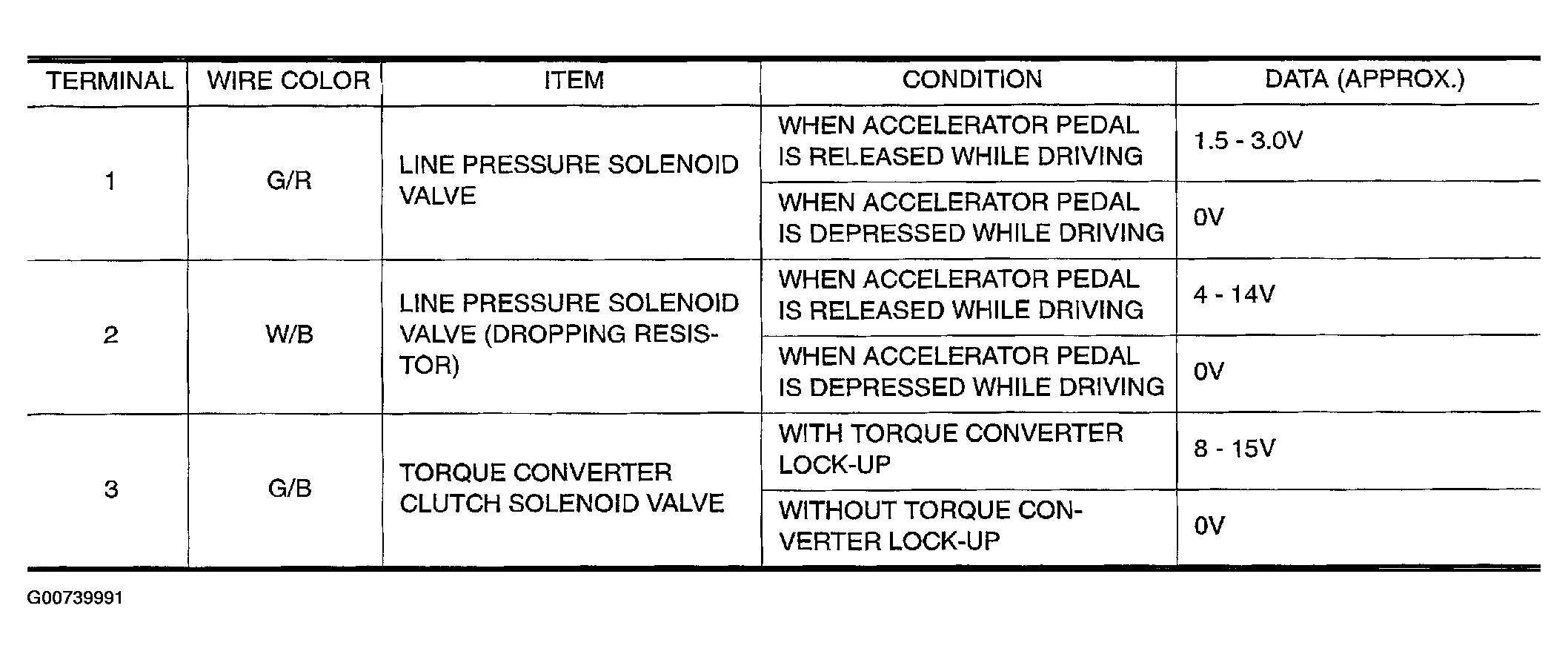

TCM TERMINAL AND REFERENCE VALUE (MEASURED BETWEEN EACH TERMINAL AND GROUND)

Fig 2: TCM Terminals And Reference Value Chart
G00739991Courtesy of NISSAN MOTOR CO., U.S.A.
